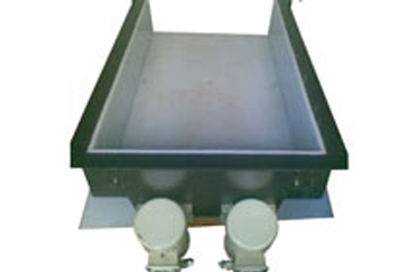

Vibratory feeder Electro-mechanical
High Discharge Quantity, Low Energy Consumption
Electro-mechanical feeders are ideal for discharge of dry bulk material in the processing stage. Widely used in Steel, Ferro Alloys, Glass, Foundry, Concrete, Chemical, Recycling industries for materials like powder, plastic pellet, dry chemicals, glass cullet, coal, Alloys, ores, minerals, grains, feed, wood chips, salt, sugar and many more.
Working principle:
An unbalanced motor is used to create vibration which is imparted to tray/through either in rectilinear or elliptical motion. This vibration leads material to slip and sling making material to move further on the tray.
Electro-Magnetic
Less Downtime, Higher Productivity
In case of electro-magnetic feeders, vibration is generated through electrical pulses, Machine is tuned to neutral frequency which is higher the frequency of electrical pulses. Typically used when there is requirement of controlled vibration, material moves by a series of jump corresponding to frequency of vibration.

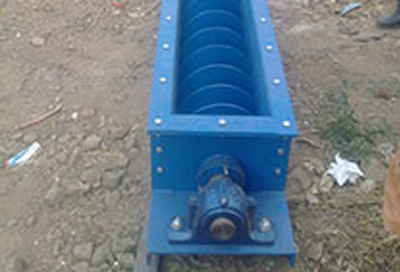

Screw Feeder
Modular Construction, Flexible operation
Ideal for conveying free flowing dry powders, grains, to semi-fluid materials. Screw feeders caters various industries like Glass, Soap & Detergent, Welding electrode, Chemical, Minerals Processing, Food, etc.
High Speed Feeder
High Speed Feeder from MSPL are easy to use and extremely space efficient. This high performance mixer comes with volume capacity up-to 20 litres and its unique design of cone seat ensures stirring shaft stability through full speed range. Known for their robust design, high efficiency and long service life, MSPL's high speed mixers are cost effective and available at competitive price

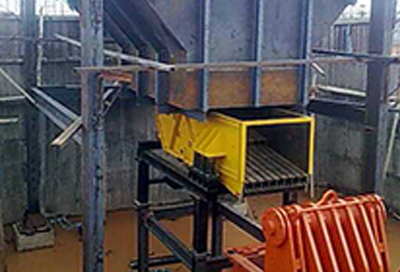

Grizzly Feeder
Grizzly Vibrating grizzly feeder is a kind of new feeding equipment which combines feeding with screening. Precisely engineered Vibrating Grizzly Feeder is available. Grizzly Feeder is manufactured in variegated specifications in order to cater various industrial applications. The offered feeder is widely used in coal mining industry and metallurgy industry for screening as well as crushing purpose. This feeder is based on electrical mechanism and requires less power for the operation.
Working principle:
When these two vibration motors rotate reversely at the same angular speed, the inertia forces produced by their eccentric blocks will overlap or counteract each other at a special phase. Thus, a huge resultant vibration exciting force will be generated so that the machine body will be forced to vibrate on the bearing spring. This vibration is used as the power to make the material slide on the material chute and drop so that the material moves forward continuously. As a result, material feeding purpose is realized. When the material passes the screen bars of the chute body, smaller pieces of material will drop from the gaps between the screen bars and not enter the next crushing procedure. In this way, material screening result is achieved.
Vibrating Grizzly Feeder Structure:
Grizzly feeder is consisted of vibrating motors, main body, springs, gearing devices and others.
Grizzly Feeder Characteristics:
