Pneumatic Conveying System
Lump Breaker
Designing, developing Pneumatic conveying solution is one of the core expertises of MSPL. Suitable for multiple materials in varied industries like food, pharmaceutical, chemical, mining, construction, detergent, packaging, etc. Pneumatic conveying systems are based on two concepts. Pressure type in which material is conveyed with the help of air pressure towards the destination where as in case of suction type material is sucked from source & discharged by gravity up to destination.
Pneumatic conveying system comes with two variants -

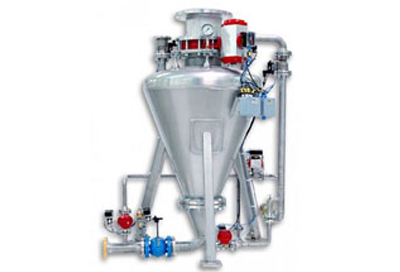

Dense Phase: Dense phase systems utilize high pressure & low Air/Gas volume as material needs to move at low velocity. These types of systems use compressed air / gas to required force for the movement. Dense phase pneumatic conveying systems are ideal for materials which are Abrasive, Fragile and higher density.
Dense Phase pneumatic systems from MSPL are totally enclosed which makes it totally Dust free, Spill free and does not get affected by environmental conditions.
Lean Phase : Lean phase conveying systems combines fluidizing conveying technique which in trun reduces air pressure requirement. These low pressure Air or Gas acts as motive force to transfer powered / granular bulk solid through a pipeline at high velocity. Lean phase systems can again be categorized as Pressure type or vacuum type.
Capacity : 2 To 50 TPH
Conveying Length :300 Mts (pressure based) 50 Mts (vacuum based)
