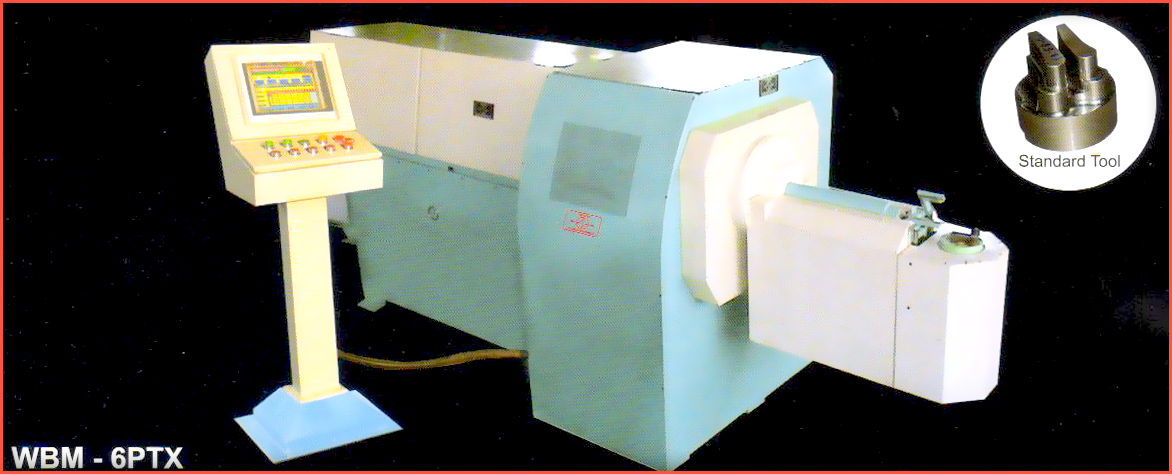

3 Axes CNC Controlled Servo Electric Wire Bending Machine:

Standard Features:

• Color LCD monitor touch for data entry and editing
• Operation mode-manual/semi auto/fully auto
• 30 bends program
• Data entry as push,turn,Bend(YBC)values Or XYZ co-ordinates
• Clockwise /Counter clockwise bending
• Large/Multiple program data storage facility in hard disk
• Pragrammable variable speeds for each axis
• Multi sequence bend capability for up to 5 parts with common tube dia
• Air blast/shell & tube type heat exchanger for hydraulic oil cooling
• Centralized lubrication system
• Safety interlocks for machine operation
• Automatic feeding unit
• Program retrieval by alphanumeric code/password protection for data entry
• Emergency stop switch
• Online/Offline diagnosis mode.

Optional Features:

• 3Safety mat for bend arms,area
• 3D view/simulation display
• Oil chilling unit
• Servo stabilizer
