3 Axes CNC Pipe Blending Machine:

Standard Features:

  • Color LCD Monitor-Touch for data entry and editing
  • Operation mode-manual/semi auto/fully auto
  • Data entry as push,turn,blend(YBC)values or XYZ co-ordinates
  • 30 bends program
  • Clockwise blending
  • Large/multiple program data storage facility in flash disk
  • Blend arm over ride swith to prevent bend arm collision
  • Programmable variable speeds for each axis
  • Multi sequence bend capability for up to 5 parts with common bend radius and dia
  • Automatic part counter
  • Air bladt/shell & tube type heat exchanger for hydraulic oil cooling
  • Centralized lubricatiuon system
  • Safety interlocks for machine operation
  • Emergency stop switch
  • Online/Offline diagnosis mode
  • Hydraulic mandrel retraction

Optional Features:

  • 3D View/Simulation display
  • Oil chilling unit
  • Oil cleaning system
  • Bend arm safety mat

2 Axes NC Pipe Bending Machine:

Standard Features:

  • Color LCD monitor touch for data entry and editing
  • Operation mode-manual/semi auto/fully auto
  • 15 bends program
  • Large /multiple program data storage facility in flash disk
  • Bend arm over ride switch to prevent bend arm collision
  • Program retrieval by alphanumeric code password
  • Hydraulic mandrel retraction
  • Servo controls for change of plane
  • Online/Offline diagnosis mode

Single Axis NC Pipe Bending machine:

Standard Features:

  • Color LCD monitor touch for data entry and editing
  • Operation mode-manual/semi auto/fully auto
  • 15 bends program
  • Bend arm over ride switch to prevent bend arm collision
  • Program retrieval by alphanumeric code password
  • Hydraulic mandrel retraction
  • Online/Offline diagnosis mode

Single Axis NC Pipe Bending Machine With Booster Bending Facility For Boiler Industries:

Standard Features:

  • Color LCD monitor touch for data entry and editing
  • Operation mode-manual/semi auto/fully auto
  • 15 bends program
  • Booster feeding unit for 1D bending
  • Bend arm over ride swith to prevent bend arm collision
  • Program retrieval by alphanumeric code password
  • Hydraulic mandrel retraction
  • Servo controls for change of plane
  • Online/Offline diagnosis mode

5 Axes CNC Tube Bending Machine:

Standard Features:

  • Color LCD monitor touch for data entry and editing
  • Operation mode-manual/semi auto/fully auto
  • 30 bends program
  • Data entry as push,turn,Bend(YBC)values Or XYZ co-ordinates
  • Clockwise bending
  • Large/Multiple program data storage facility in hard disk
  • Bend arm over ride switch to prevent bend arm collision
  • Pragrammable variable speeds for each axis
  • Multi sequence bend capability for up to 5 parts with common tube dia
  • Automatic part counter
  • Air blast/shell & tube type heat exchanger for hydraulic oil cooling
  • Centralized lubrication system
  • Safety interlocks for machine operation
  • CNC controller panel cooler
  • Emergency stop switch
  • YBC to XYZ co-ordinates conversion
  • YBC data entry automatically calculates the actual required tube length and enters into part program
  • Online/Offline diagnosis mode.

Optional Features:

  • 3D View/Simulation display
  • Oil chilling unit
  • Oil cleaning system
  • Bend arm safety mat

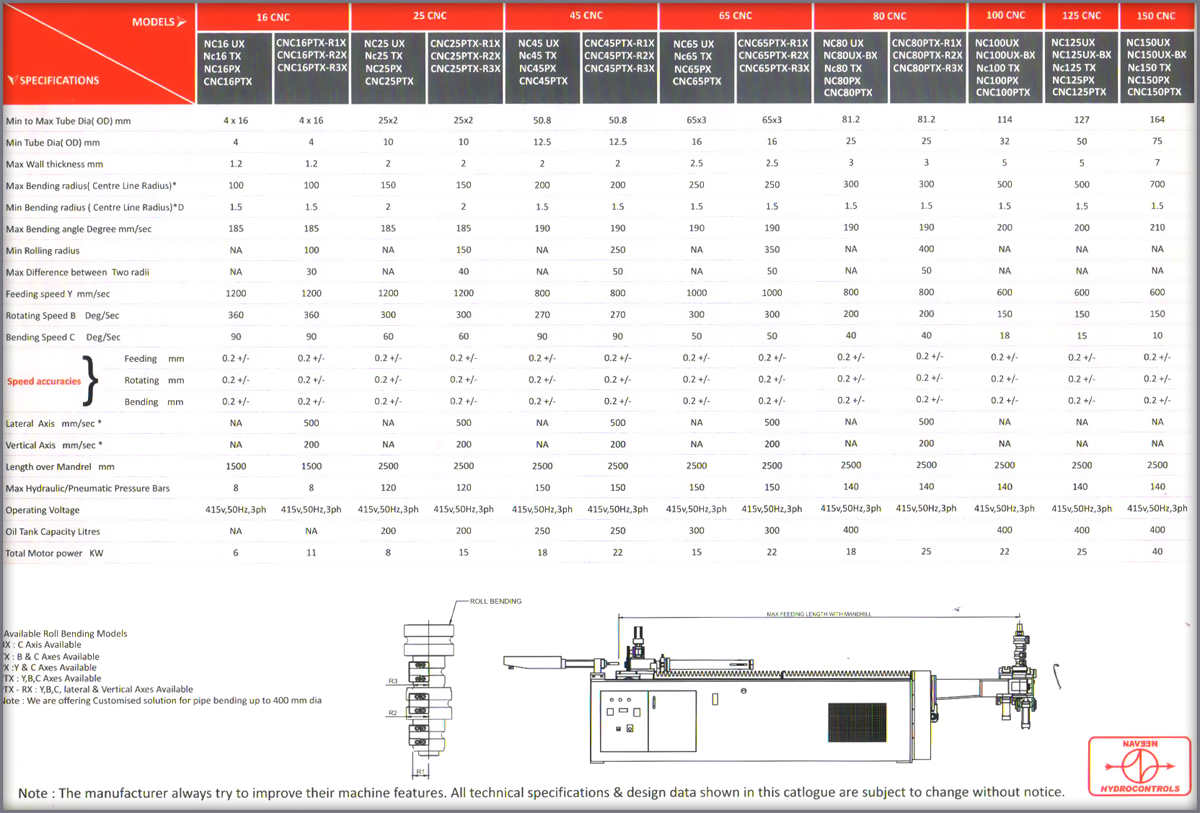

Technical Specifications For All Pipe/Tube Bending Machine:
