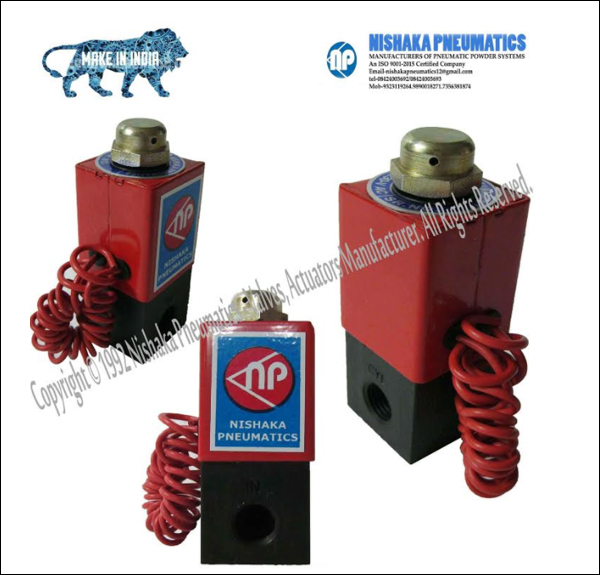

We NISHAKA PNEUMATICS make available a vast range of Direct Acting Solenoid Valves which are as per domestic as well as transnational quality standards. They are durable , excellent grade and thus economical and worth the price paid by purchaser. The packaging of our products is done using high-grade packaging material.

Direct Acting Solenoid Valves are the most frequently used control elements in fluidics . Their function is to shut off, release, dose, distribute or mix fluids (liquids and gases). Here, ball Valve Actuator explains the differences between the two main types: direct acting solenoid valves and Namur operated solenoid valves.

Specification
Type	Direct Acting Solenoid Valves 2 Port And 3 Port Normally Closed/Normally Open.
Manufacturing Range Sizes	1/8" BSP / 1/4" BSP/ 1/2" BSP
Orifice	1.5mm Standard (Other sizes on request.)
Pressure	0 to 12 Kg/cm2
Media	Air, Water & Non Corrosive Liquids & Gases
Body	Hard Anodized Aluminium Body, Brass & stainless steel Against Specific Orders
Manual Overdrive	Optional
Data	Epoxy Molded, Water Proof, Continuous Duty Coils, 6 to 230 V AC & 9.5 Watts Low Watts as per request
