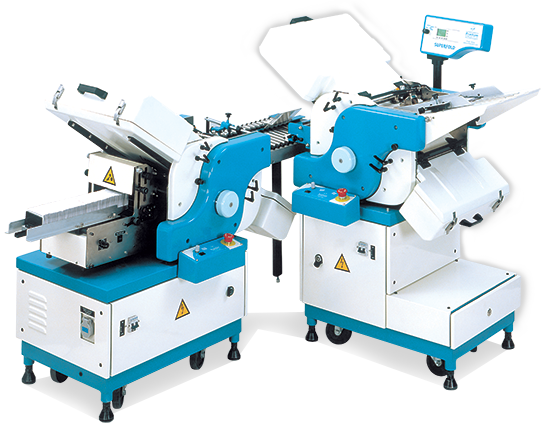

A combination of parallel and vertical (cross) folds is possible with this model. Two machines are arranged in such a manner so as to facilitate parallel and cross folds in a single operation.
Folding Trays | 4 folding pockets + 3 deflectors |
Max. Format | 300 X 450 mm |
Min. Format | 70 X 110 mm |
Min. Folding | 18 mm |
Output | 18000 sheets / hr (A4/ single fold/ 60 GSM) |
Roller Speed | 125 m /min |
Paper | 47 GSM to 130 GSM |
Power | 220V, 1ph, 250W |
Folding Trays | 4 folding pockets + 3 deflectors |
Max. format | 296 X 350 mm |
Min. format | 50 X 120 mm |

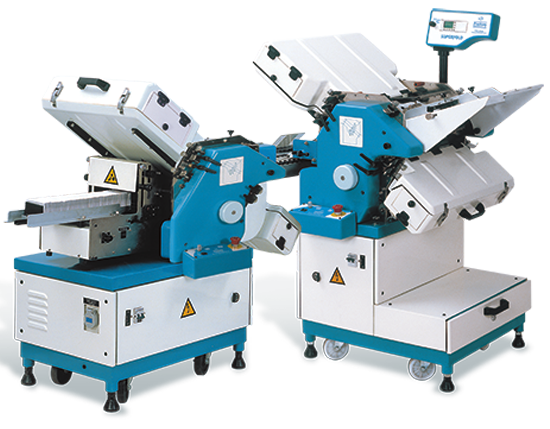

The "SUPERFOLD" - PGV maintains its compatibility with optional vertical stacker. This model can also be utilized for parallel folding by detaching the second machine which is required for cross folds.
PGV FF 415 | PGV FF 615 | |
---|---|---|
Folding Trays | 4 folding pockets + 3 deflectors | 6 folding pockets + 5 deflectors |
Max. Format | 350 X 600 mm | 350 X 600 mm |
Min. Format | 70 X 110 mm | 70 X 110 mm |
Min. Folding | 18 mm | 18 mm |
Output | 19000 sheets/hr(A4/ Single fold 60gsm) | 19000 sheets/hr(A4/ Single fold 60gsm) |
Roller Speed | 150 m /min | 150 m /min |
Paper | 47 gsm to 130 gsm | 47 gsm to 130 gsm |
Power | 220V, 1ph, 250W | 220V, 1ph, 250W |
PGV BFC 415 | PGV BFC 615 | |
Folding Trays | 4 folding pockets + 3 deflectors | 6 folding pockets + 5 deflectors |
Max. format | 296 X 350 mm | 296 X 350 mm |
Min. format | 50 X 120 mm | 50 X 120 mm |
