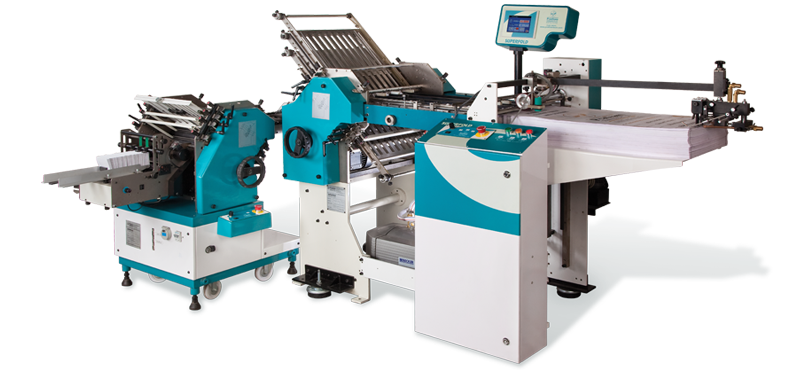

These automatic paper folding machines are equipped with high speed flat pile vacuum feeder enabling them to handle a range of coated paper, non-coated paper and bible paper with ease and efficiency. A variety of folds like single, double or triple folds with different styles such as accordion fold, “U” fold, double parallel fold, etc are also possible. Our range of pile feeders can fold up to 6 folds to a paper whose maximum length can go up to 18 inches. The two models we offer are PGV-PF-615 and PGV-PF-618. The belt drive coupled with thick end plate ensures the machine's smooth and low noise working. The cumbersome task of setting a new job is made easy with the availability of caliper setting and jogging mode. An ideally located display panel indicates the folded sheets, batch count and productivity information about an ongoing job. A rotary scoring (creasing) attachment is provided at the delivery end.
| Folding Trays | 6 folding pockets + 5 deflectors | 6 folding pockets + 5 deflectors |
| Max. Format | 350 X 650 mm | 450 X 650 mm (Extra length as per requirment) |
| Min. Format | 125 X 150 mm (Single sucker) 210 X 296 mm (Double sucker) |
125 X 150 mm (Single sucker) 210 X 296 mm (Double sucker) |
| Roller Speed | 125 m /min | 150 m /min |
| Paper | 40 GSM to 130 GSM | 40 GSM to 130 GSM |
| Paper Type | Bible, Coated and Non-Coated | Bible, Coated and Non-Coated |
| Power | 440V, 3ph, 2.5KW | 440V, 3ph, 2.5KW |
| XP BFC 412 | PGV BFC 415 | PGV BFC 615 | |
| Folding Trays | 4 folding pockets + 3 deflectors | 4 folding pockets + 3 deflectors | 6 folding pockets + 5 deflectors |
| Max. format | 296 X 350 mm | 296 X 350 mm | 296 X 350 mm |
| Min. format | 50 X 120 mm | 50 X 120 mm | 50 X 120 mm |
