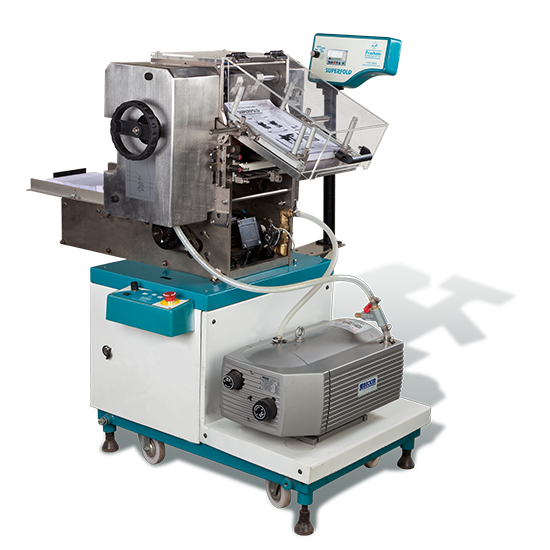

The Cartonova leaflet folding machine has been specifically designed for integration with Packaging lines / cartoning machines. Cartonova provides user friendly operation, high productivity & superb performance.
The Cartonova Leaflet Folding Machine is equipped with a suction feeder and can handle a wide range of paper. It's modern and solid construction offers a stable and quiet operation. Setting of a new job is very easy with the roller pressure adjustment by means of caliper settings. The delivery of folded Leaflets can be customised as per the requirements of the parent machines of various makes. The 'Cartonova' leaflet folding machine can be easily detached from the parent machine and can be used as a stand alone machine.
4 parallel fold machine (4 folding pockets & 3 deflectors)
| CARTONOVA 408 4 parallel fold machine (4 folding pockets & 3 deflectors) | CARTONOVA 608 6 parallel fold machine (6 folding pockets & 5 deflectors) | |
|---|---|---|
| Max. Format | 210 X 297 mm | 210 X 600 mm |
| Min. Format | 60 X 90 mm | 60 X 90 mm |
| Min. Folding length | 15 mm | 15 mm |
| Speed | up-to 250 leaflets / min. | 250 leaflets / min. 1:1 125 leaflets / min. 2:1 |
| Paper GSM | 50 GSM to 130 GSM | 40 GSM to 130 GSM |
| Machine Dimensions | 750 X 540 X 450 mm | 1176 X 505 X 602 mm |
