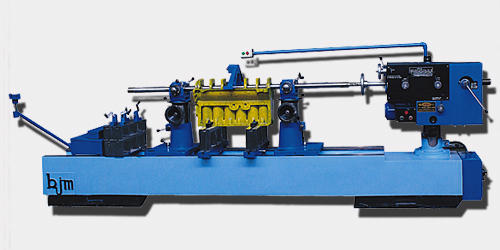

Horizontal Line Boring Machine

Model	1550 MM	2000 MM	2500 MM
Max. length of Cylinder Block	Block 1550 mm (61")	2000 mm (79")	2500 mm (98.5")
Distance from built in Parallels to centre of Boring Bar Max/Min	815 mm (32"),515 mm (20")	815 mm (32"),515 mm (20")	815 mm (32"),515 mm (20")
Boring Capacity	34-150 mm, (1.5/16" - 5 7/8")	34-150 mm, (1.5/16" - 5 7/8")	34-150 mm, (1.5/16" - 5 7/8")
Spindle Speeds	Continuously variable 50 to 750 RPM	Continuously variable 50 to 750 RPM	Continuously variable 50 to 750 RPM
Feeds (Both Directions)	0.04-0.15 mm/rev, (0.0016"-0.0059" rev)	0.04-0.15 mm/rev, (0.0016"-0.0059" rev)	0.04-0.15 mm/rev, (0.0016"-0.0059" rev)
Max. Travel of Boring Bar	325 mm (12.13/16")	325 mm (12.13/16")	325 mm (12.13/16")
Additional travel with Extension Bar	260 mm (10.1/4")	260 mm (10.1/4")	260 mm (10 1/4" )
Electric Motor	2 HP - 1410 RPM	2 HP - 1410 RPM	2 HP - 1410 RPM
Length of the Machine	3550 mm (140")	4050 mm (159")	4600 mm (181")
Width of the Machine	760 mm (30")	760 mm (30")	760 mm (30")
Max. Height of the Machine	1800 mm (71")	1800 mm (71")	1800 mm (71")
Work Space Required	5050x760mm, (200" x 30")	5600x760mm, (220" x 30")	6050x760mm, (238" x 30")
Net Weight (Approximate)	1650 Kg	2000 Kg	2250 Kg
Gross Weight (Approximate)	2150 Kg.	2800 Kg.	2900 Kg.
Shipping Dimension cms LxBxH	385x95x155	440x95x155	500x95x155
Shipping Volume Approimate cm3	5.70 M3	6.50 M3	7.40 M3

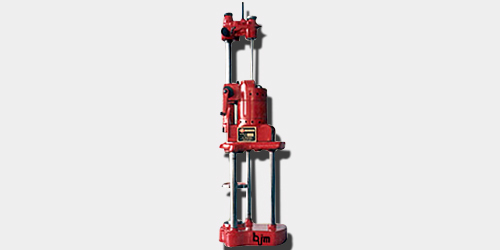

Portable Cylinder Reboring Bar

Specifications		(in mm)
Model	7001	9001	001
Max. Diameter of Bore	65	115	132
Min . Diameter of Bore	40	55	65
Max. Length of Bore	150	250	350
Max. Travel of spindle	200	275	375
Max. Single Cut	0.50	0.75	0.75
Feed Per Minute in mm	40	40	40
Sinlge Phase Elect Motor (hp)	.5	0.75	1
Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail.

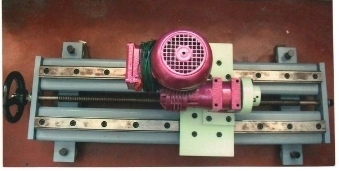

Portable Line Boring Machine

Description	Machine No -1	Machine No -2	Machine No -3
Three Variants	Light Duty	Medium Duty	Heavy Duty
Boring Bar Dia	36 mm	60 mm	65 mm
Which can do boring from	40 mm dia to 150 mm dia. Distance between bore up to 1.2 meter.	65 mm dia to 250 mm dia. To boring distance from max. 2.0 meter cap.	80mm dia to 30mm-400mm dia. Distance between bore can be set up 3 mtr or more up to 6mtr distance.
Length of bore	1 Meter	1.5 Meter - 2. meter	2. Meter to 3.meter
Drive	0.5 HP single Phase	1.HP – Three Phase	1.5 HP – Three Phase
Weight	25 Kg	60 Kg	90 Kg
Setting time	30 minutes	50 minutes	120 minutes
Delivery	15 days	30 days	45 days

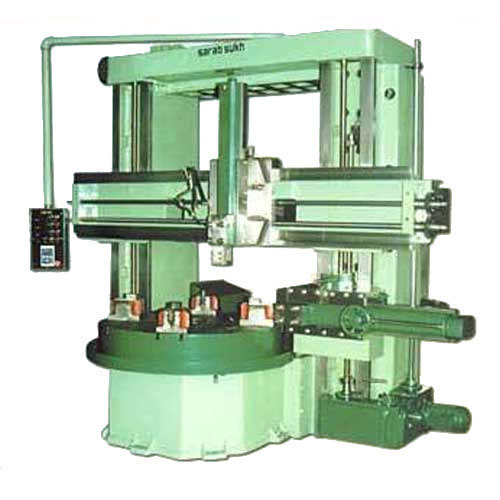

Vertical Turning Lathe

We offer our clients Vertical Turning And Boring Machine, which are widely used for machining variety of components in different industries. These are precision engineered machines used for rugged metal removal, further these are designed with quality C.I. Casting machine structure ribbed internally to ensure maximum stability. In addition, to take out the radial and vertical loads these are provide with precision bearings and gunmetal or Turcite 'B' liner guide ways combination. This helps the alloy and steel gears hardened and lapped. Moreover, these are offered with oil bath lubricant to bed table guide ways and centralized control panel.
