Premier Engineers

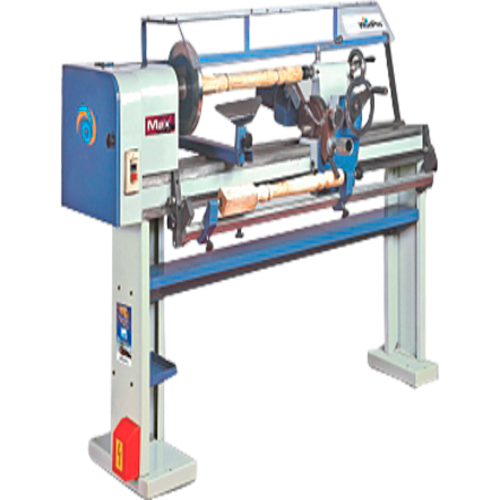

Basic Copy Lathe

Faster, precise and low cost production for the everyday copy turning jobs. Hand feed machine - ideal for stair parts and furniture components. Copy turning as per profile. Strong base ensures maximum rigidity with precision turning & copying. Transparent guard for total operator safety.

Brand/Make	JAI
Model Name/Number	924
Automation Grade	Manual
Height Of Centre	8 Inch
Length Of Bed	71 Inch
Power	1.5 HP

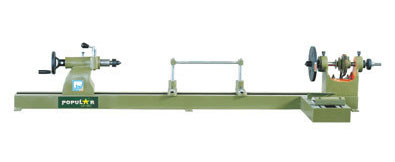

Turning Lathes

Model	J-922 6ft.	J-932 8ft.
	mm / inch	mm / inch
Length of bed	1825 / 72"	2435 / 96"
Width of bed	130 / 5"	130 / 5"
Height of centers	165 / 6½"	165 / 6½"
Admit between centers	1220 / 48"	1830 / 72"
Approx. spindle speed - RPM	700 / 1400 / 2800	700 / 1400 / 2800
Face plate diameter	190 / 7½"	190 / 7½"
Power required HP/RPM	1 / 1440	1 / 1440
Approx. wt. of machine - kg.	70	80

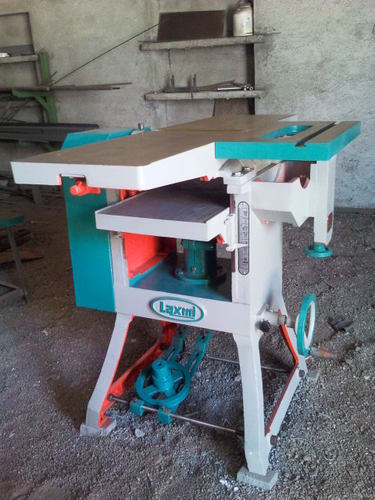

Open Stand Combination Planer

Thickness	10”x7”	13”x7”	18”X7”
Capacity(inch)(mm)	250x180	330X180	460X1219
Surface	10”x48”	13”x48”	18’X48”
Capacity(inch)(mm)	250x1219	457x1219	460X1219
Circular	10	10	10
Capacity(inch)(mm)	254	254	254
Motor (RPM)	4200	4200	4200
(H.P.)	2/1440	2/1440	3/1440

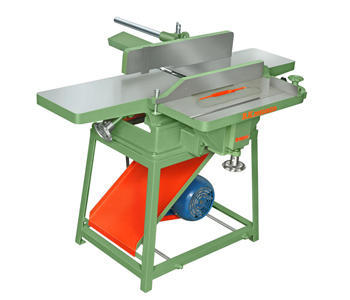

Surface Planner Combined Circular Saw

Surface Top (Inch)	9” X 48”	13” X 48”	13”X60”	13”X72”	18”X60”	18”X72”	24”X60”	24”X72”
(MM)	228 X 1219	328 X1219	328X1524	328X1828	457X1524	457X1828	609X1524	609X1828
Circular Capacity (Inch)	12”	12”	12”	12”	12”	12”	12”	12”
(MM)	304	304	304	304	304	304	304	304
Speed of Cutter Block (RPM)	4200	4200	4200	4200	4200	4200	4200	4200

Machine Size	250 mm	450 mm	600 mm	900 mm
Cutting Capacity	25 mm	50 mm	65 mm	75 mm
Table Size	200 x 175 mm	275 x 325 mm	275 x 325 mm	375 x 400 mm
Motor	0.5 HP	0.5 HP	0.5 HP	0.5 HP
R.P.M	650 RPM	650 RPM	650 RPM	650 RPM
Stock Capacity	25 mm	30 mm	35 mm	35 mm

Woodworking Machines
