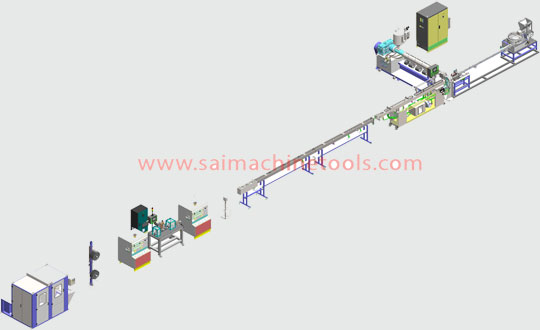

Flat Dripper Type Tube Extrusion Line
| Extruder Size/capacity | 75 mm/200 kg/hr |
| Dripper insertion Unit | SMT IDF 300 Insertions/min |
| Cross Die Head | Specially Designed Cross Head For Flat Dripper |
| Vacuum Calibration Tank | 5 meter Long, Stainless Steel |
| Cooling Bath | 15 Meter Long, Stainless Steel |
| Performation Unit | SMT PDF One Hole/Two Hole |
| Caterpillar Type Haul Off | Max Line Speed:120 Meters/Min Two No. |
| Double Station Coiler | 1000 Meter Coils Max Line Speed:120 Meter/Min |
| Total Connected Load | 72 KW |
| Space Requirement | 45 M(L)X 6M(W) X 5M(H) |
