Our Product

Mono filament/Box Strapping Plants

Models	SMT-65 X 45 X 45 X 30 PPR Pipes Plants	SMT-75 X 45 X 45 X 30 PPR Pipes Plants
Main Extruder	65 mm Single Screw Groove Feed Barrel	75 mm Single Screw Groove Feed Barrel
Inner Layer Extruder For Anti Microbial Coating	45 mm Single Screw Groove Feed Barrel	45 mm Single Screw Groove Feed Barrel
Outer layer Extruder For UV Stabilizing Coating	45 mm Single Screw Groove Feed Barrel	45 mm Single Screw Groove Feed Barrel
Drives (KW-AC)	30 + 7.5 + 7.5 + 3.5 + 1.5	55 + 11 + 11 + 7.5 + 1.5
Output (kgs/hr)	125kgs	200kgs
Die Head (Specially Designed)	SMT DH 110PP	SMT DH 200 PP
Pipe Size(mm) Min-Max	16-110 mm	16-200 mm

Field Of Application Triple Layer PPR Pipe

Hot & Cold Water Supply for Residential, Industrial & Commercial Projects. Compressed Air Systems. Drinking Water & Liquid Food Supply Systems Gardening, Agriculture & Horticulture Piping Systems

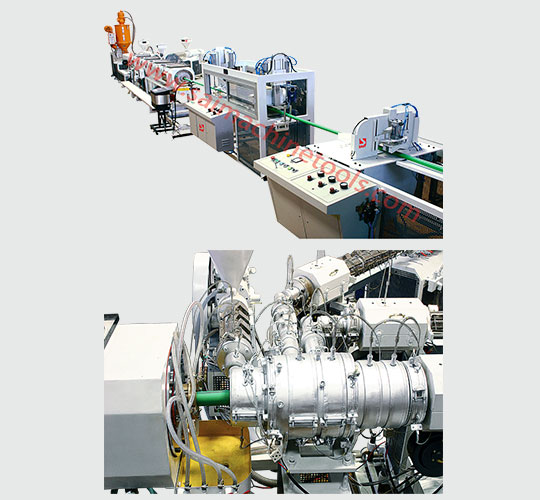

Salient Features of triple Layer PPR Pipe Plant

ISI & BIS/DIN Standard Pipe can be produced UV resistant outer layer coating Anti microbial inner layer coating Low maintenance Easy to operate Low power consumption
