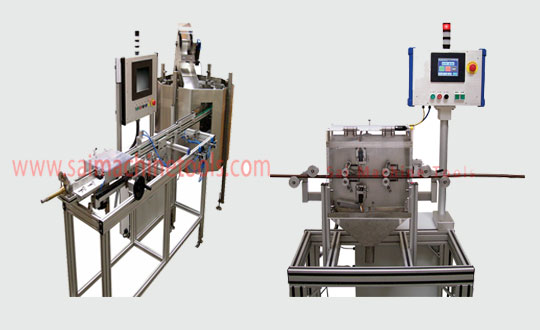

Round Dripper Irrigation Tube Extrusion Line

Extruder Size/capacity 45 mm/200 kg/hr
Dripper insertion Unit FID 300 Insertions/min
Cross Die Head Specially Designed Cross Head For Flat Dripper
Vacuum Calibration Tank 5 meter Long, Stainless Steel
Cooling Bath 15 Meter Long, Stainless Steel
Performation Unit FDP 300 E2H One Hole/Two Hole
Caterpillar Type Haul Off Max Line Speed:120 Meters/Min Two No.
Double Station Coiler 500 Meter Coils Max Line Speed:120 Meter/Min
Total Connected Load 68 KW
Space Requirement 40 M(L)X 6M(W) X 5M(H)

Features:

High Perforation Rate (300 per Minute) High Pipe Speed (100 Meters Per Minut)z Digitally Controlled Operated And Controlled Via Color Touch Screen. Easy And Quick Drill Depth Adjustment Requires No Tools Pipe Is Front Loaded Not Threaded Through The Device. Statistical Spacing Display Of Last 10 Perforation Including Min,Max& Avg. Easy Integration To Any Existing Production Line No Maintenance Required
