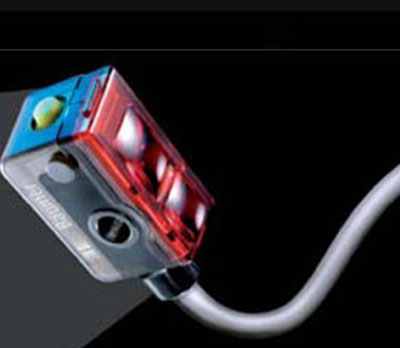

• SmartReflect(TM) – the first light barrier without a reflector
• Precise background suppression
• Extremely temperature-stable
• Response time up to 50 ms
• Sensing distance up to 20 m
• Extremely small housings
• Laser beams with diameters up to 0,1 mm
• Sensors in robust metal housing
• Sensors for transparent objects
• Output PNP/NPN, push-pull

FHDK 04
	Characterstics Diffuse sensor with background suppression Can be integrated in rails Fixed sensing distanced IO-Link	Dimension:4 x 44,8 x 6,2 mm ranges response < 0,5 m release time
diffuse sensors :	diffuse sensors background suppression : 30 mm / 50 mm SmartReflect light barriers :
retro-reflective sensor	through beam sensor :

FxxK 07 Minos
	Characterstics Smallest adjustable sensor family SmartReflect	Dimension:8 x 16,2 x 10,8 mm mm ranges response < 0,5 m release time
diffuse sensors :20 ... 150 mm	diffuse sensors background suppression : 10 ... 60 mm SmartReflect light barriers :10 ... 45 mm
retro-reflective sensor	through beam sensor :2,5 m

FxxM 08
	Characterstics Robust metal housing Fixed sensing distance	Dimension:M8 x 56 mm 8 x 58 x 12 mm ranges response < 1 ms release time
diffuse sensors 40 mm / 80 mm	diffuse sensors background suppression
retro-reflective sensor	SmartReflect light barriers : through beam sensor :1 m / 3 m

FxDK 10 OxDK 10
	Characterstics Different beam shapes optimized for the application Compact and high performancesensor family	Dimension:10,4 x 27 x 14 mm ranges response < 1 ms release time
diffuse sensors 200 mm	diffuse sensors background suppression 20 ... 130 mm
retro-reflective sensor 4,5 m	through beam sensor : 10 m
Specific Characterstics:	Sensors with laser light source Sensors for transparent object

FxDM 12 OxDM 12
	Characterstics Robust metal housing Diffuse laser sensors with negligible black/white shift	Dimension:12,4 x 35 x 35 mm ranges response < 1 ms release time
diffuse sensors 30 ... 250 mm	diffuse sensors background suppression 15 ... 300 mm
retro-reflective sensor 5,5 m	through beam sensor : 7,5 m
Specific Characterstics:	Sensors with single lens optics

FxDK 14 OxDK 14
	Characterstics The sensor family for a wide range of applications SmartReflectTM light barrier	Dimension:14,8 x 43 x 31 mm ranges response < 1 ms release time
diffuse sensors 5 ... 600 mm	diffuse sensors background suppression 20 ... 500 mm
retro-reflective sensor 8 m	through beam sensor : 15 m
Specific Characterstics:	Sensors for transparent objects optic Laser sensors in laser class 1

FxDM 16 OxDM 16
	Characterstics Robust metal housing Red light and laser versions	Dimension:15,4 x 50 x 50 mm ranges response < 1 ms release time
diffuse sensors 0 ... 400 mm	diffuse sensors background suppression 20 ... 600 mm
retro-reflective sensor 9 m	through beam sensor : 10 m
Specific Characterstics:	Sensors with laser light source Laser sensors for wafer detection

FxAM 18
	Characterstics Robust metal housing Doubling lenses to double the range	Dimension:M18 x 50 mm ranges response < 1 ms release time
diffuse sensors 60 ... 430 mm	diffuse sensors background suppression
retro-reflective sensor 4 m	through beam sensor : 20 m
Specific Characterstics:	Sensor can be used with glass fiber optic
