• Intuitive user interface –simplified setup within 4 steps
• Fully integrated flash controller for external illumination (XC Series)
• Reliable 360° recognition for part location powered by FEX Loc® technology
• C-mount design with resolutions up to 2 MP
• Protection class IP 67 and rugged metal housing
• Secure operation with user levels and password protection

)

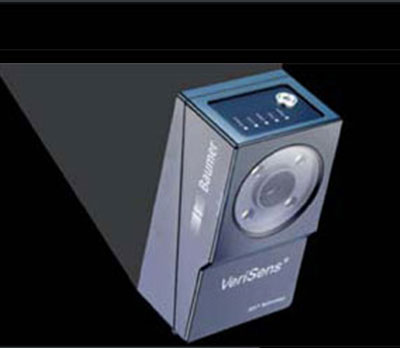

VeriSens ® ID-100
	Characterstics Multi-code reader for 1D and 2D codes Determines quality according to ISO / AIM	Dimension:53 x 99,5 x 38 mm speed :max. 50 inspections / sec.
field of view (min.) 17,7 x 11,3 mm	resolution lens: 752 x 480 pixels 10 mm / 16 mm
communicaton : 5 inputs / 3 outputs digital Ethernet (setup) TCP/IP, RS485 (process data transmission	Plug connection
functions:	Barcode: e.g. Code 128, EAN 13, UPC, 2/5, GS1 128 Matrix code: DataMatrix (GS1), QR, PDF 417 Password protection

)

VeriSens ® ID-110
	Characterstics Multi-code reader for 1D and 2D codes (incl. GS1) Reads different fonts without font training Verifies text (OCR/OCV),quality control of codes	Dimension:53 x 99,5 x 38 mm speed :max. 50 inspections / sec.
field of view (min.) 26,4 x 16,9 mm	resolution lens: 752 x 480 pixels 10 mm
communicaton : 5 inputs / 5 outputs digital Ethernet (setup) TCP/IP(process data transmission)
functions:	Any font style, even Dot Matrix Barcode: e.g. Code 128, EAN 13, UPC, 2/5, GS1 128 Matrix code: DataMatrix (GS1), QR, PDF 417 Password protection

)

VeriSens ® CS-100
	Characterstics Presence and completeness check Part recognition and part sorting Checking part geometries	Dimension:53 x 99,5 x 38 mm speed :max. 50 inspections / sec.
field of view (min.) 17,7 x 11,3 mm	resolution lens: 752 x 480 pixels 10 mm / 16 mm
communicaton : 5 inputs / 5 outputs digital Etherne(setup) TCP/IP(process data transmission)
functions:	Any font style, even Dot Matrix Barcode: e.g. Code 128, EAN 13, UPC, 2/5, GS1 128 Matrix code: DataMatrix (GS1), QR, PDF 4177 Password protection

)

VeriSens ® XF-100
	Characterstics Presence and completeness check Acquisition of part location and correct position Process interface	Dimension:53 x 99,5 x 38 mm speed :max. 100 inspections / sec
field of view (min.) 17,7 x 11,3 mm	resolution lens: 752 x 480 pixels 10 mm / 16 mm
ommunicaton : 5 inputs / 5 outputs digital Ethernet (setup) TCP/IP(process data transmission)
functions:	360° part location Geometry: distance, circle Feature comparison:7 functions Coordinate conversion Password protection

)

VeriSens ® XF-100
	Characterstics Presence and completeness check Acquisition of part location and correct position Process interface	Dimension:53 x 99,5 x 38 mm speed :max. 100 inspections / sec
field of view (min.) 17,7 x 11,3 mm	resolution lens: 752 x 480 pixels 10 mm / 16 mm
ommunicaton : 5 inputs / 5 outputs digital Ethernet (setup) TCP/IP(process data transmission)
functions:	360° part location Geometry: distance, circle Feature comparison:7 functions Identification: Barcode,Matrix code, Text Coordinate conversion Password protection

)

VeriSens ® XC-100
	Characterstics Presence and completeness check Acquisition of part location and correct position Process interface	Dimension:53 x 99,5 x 49,8 mm speed :max. 100 inspections / sec
field of view depending on the lens	resolution lens: 640 x 480 pixels (1/4”) 1280 x 960 pixels (1/3”) 1600 x 1200 pixels (1/1.8”) C-mount support for lens
Communicaton : 5 inputs / 5 outputs digital Ethernet (setup) TCP/IP(process data transmission)
functions:	Integrated flash controller Free choice of lenses due to C-mount andmodular tube system CCD sensor with resolution of 0.3 MP / 1.2 MP / 2 MP Functions like XF-100
