The most advanced Robo Arm Robotic CO2 Laser Cutting Machine

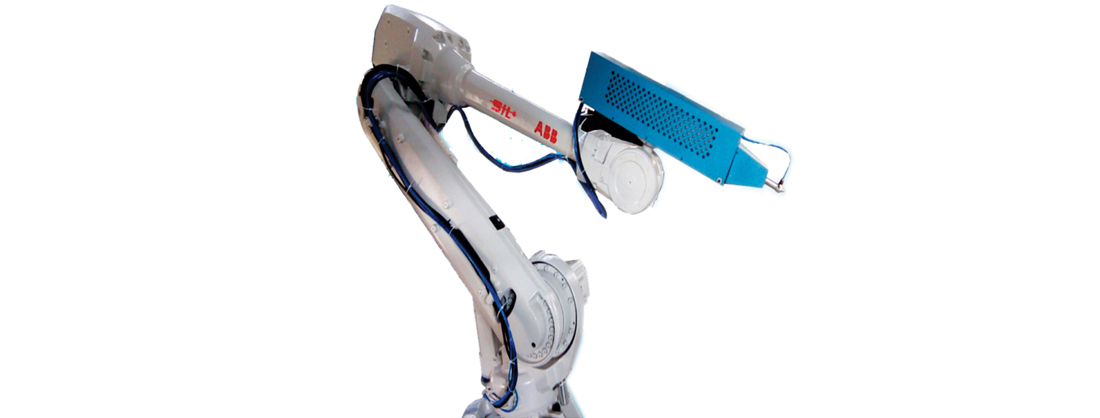

SIL Laser Robot non-metal 3D laser cutting robot is a CO2 laser solution which is applicable to 3D non-metal material cutting. Precise 6-axis robot matches CO2 laser articulated arm perfectly by building the articulated arm into the robot arm which helps reduce the movement interference. CO2 laser cutting head with different focus lengths can be selected according to the the work area.The cutting head is integrated with alarm signal for anticollision and that protects laser cutting head and robot.The laser source can be mounted on the robot arm.

BENEFITS & FEATURES

  • High precision 6-axis robot, flying ray with high precision processing rectified by professional optics device
  • More efficient laser cutting workmanship, high quality cutting section, no burrs and adhering slag
  • Fully integration of CO2 laser and robot especially applicable to complicated 3D laser processing
  • Compact overall structure and simple installation & commissioning
  • Based on EtherCAT bus protocol which comes with touch screen & PLC, serial interface which gives the strong universality and applicable

Specifications

CO2 laser source
Output power 250W / 120W / 60W
Wavelength 10.6μm
Beam quality (M2) ≤1.2
Laser cutting head
Focus adjustment range 10mm(-3~+7)
Assist gas pressure ≤10bar
Focus length 75mm; 125mm; 150mm; 200mm.
Robot
Model FANUC M-20iA
Working radius 1811mm
Repositioning accuracy ±0.08mm
Mounting way Floor – ceiling and tilt angle mounting
Chiller
Rated capacity 3500W
Water tank volume 24L
Chilled water flow 7.5~11L/min
Chilled water pressure ≤4Bar
Control cabinet
Rated voltage 220V
Rated power 10KW
Short-circuit current 63A
