ILIOS® – Solar Module Mounting Solutions

Perfect Synergy for Solar Energy

ILIOS® offers premium solar module mounting solutions for ground and roof-top applications. These customised solar mounting systems are manufactured from cold rolled Zn-Al / Zn coated steel and offer higher corrosion resistance, weight optimisation and quick installation. ILIOS® offers a complete solar mounting solution for executing turnkey solar power projects that includes design detailing, engineering support, installation and material supply. LYSAGHT® multi-locational manufacturing facilities ensure on-time project delivery.

Ground Mounted Solutions

ILIOS® offers C and Hat sections for ground mounted application. These high strength structures are manufactured from cold rolled Zn/ Al-Zn alloy coated steel and are available in various coating thicknesses and dimensions as per project requirements.

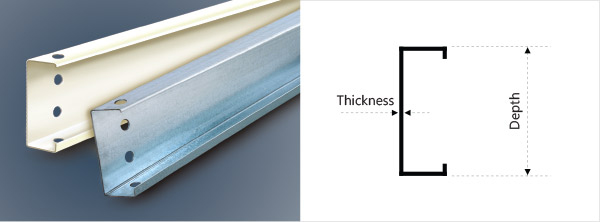

C Section

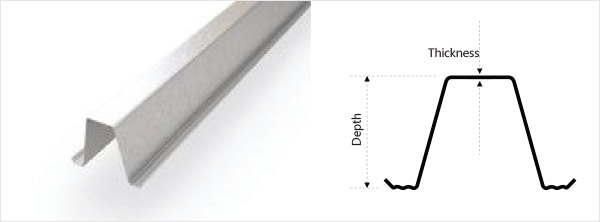

Top Hat Section


Section Depth Range Thickness range (mm) BMT Material Specification
C Section 50 mm to 200 mm 0.6, 0.7, 0.8, 0.9, 1.0, 1.2 G550 AZ 150
50 mm to 200 mm 1.5, 1.9, 2.4, 3.0 G350, Z275
Top Hat Section 40 mm 0.75, 1.0, 1.2 G550, AZ150
60 mm 0.75, 0.80, 0.85, 0.90, 1.0, 1.2 G550, AZ150

Note: 1. The above information is for standard offerings, non standard sections are also available in Z550 & AZ 200 alloy coated steel. 2. Top hat Section with depth 90 mm, 100 mm & 110 mm are also available. 3. Please contact Tata BlueScope Steel for more information.

  • Reduces overall project cost due to weight optimization
  • Pre Punched Sections ensure faster project delivery
  • Zn-Al alloy coated steel ensures better corrosion resistance and longer life
  • High Strength Steel enables better load capacity and longer spans
  • Light Weight Sections enables ease in handling, transporting & Installation

Roof Mounting Solutions

LYSAGHT® profiles are compatible with ILIOS® Roof-Top Solar Mounting Solutions. Special clips are indigenously designed and developed to suit LYSAGHT® profiles.The clips are tested for the wind uplift forces with safe design factors. Solar panels are directly mounted on LYSAGHT® profiles using these clips.

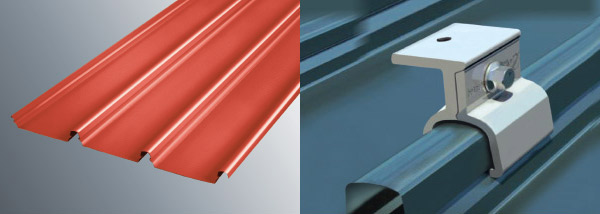

KLIPLOK® 700 – Solar Mounting Clip

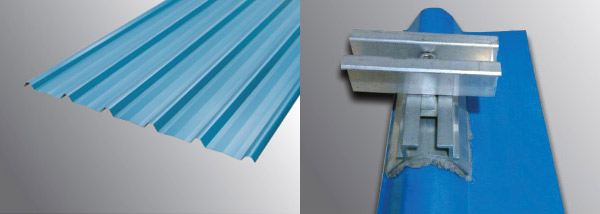

TRIMDEK® 1015 – Solar Mounting Clip

Benefits

  • Smart Solution enabling Green Building Construction
  • Quick and reliable installation
  • A Fully Integrated Solution
