Tile

Strength and Beauty combined together with Durability

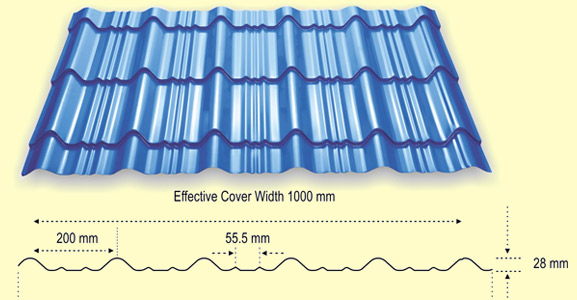

DURASHINE® Steel Tile is a strong, durable, and aesthetically appealing pierced fixed long length steel roof tile. It is quick to install, easy to handle and convenient to transport.


Long Lasting

Strong and Lightweight

Better Corrosion Resistant

Better Thermal Efficiency

Aesthetically Appealing


Total Painted Thickness (mm)
0.37 / 0.47 / 0.52 / 0.62
Sheet Length
1830 mm (6 ft), 2440 mm (8 ft), 3050 mm (10 ft), 3660 mm (12 ft), 4270 mm (14 ft), 4880 mm (16ft)Overall Profile Width1090 mm
Min. Roof Slope
15 degrees
Rib Height
28 mm
Min. Span
1000 mm
Weight
4.9 ksd/meter (for 200 mm step)
Strength of RMG
300
Pitch/Steps
200 mm (Standard), 150 mm, 250 mm (Optional*)


Standard Colour Range


Premium Colour Range
