Products

ELEVATOR PRODUCTS

Elephones which means Elevator Phones are among the premium products of Technic Electronics Corporation. Below models are widely used by many leading Elevator companies in India. Technic Elephones are professionally designed, manufactured and tested to meet tough industrial standards for use in harsh environments. Technic Elephones provide direct call facility to make a call with a single button press which is very helpful in case of an emergency.

Applications:

  • Elevators (Lifts) Fire x Security x Entrance x Rescue Operation.
  • Door Phone for Home.
  • Parking lots.
  • ATM Machines.
  • Campus.
  • Stadiums.
  • Metro / Railway Stations.
  • Airports.
  • Roadside Emergency Stations.

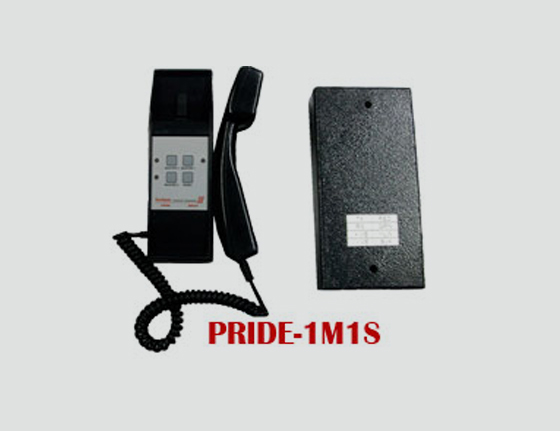

PRIDE-1M1S:

  • Master: 1
  • Slave: 1
  • Junction Box: 1

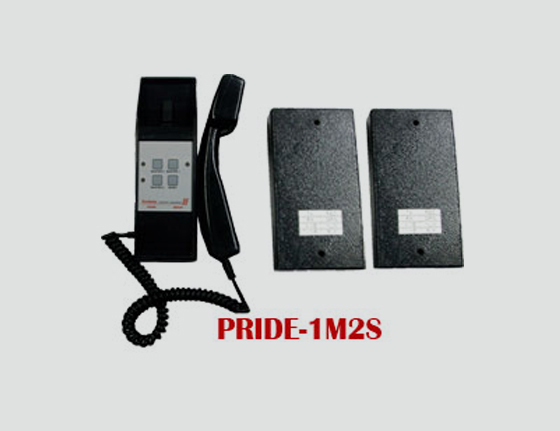

PRIDE-1M2S:

  • Master: 1
  • Slave: 2
  • Junction Box: 1

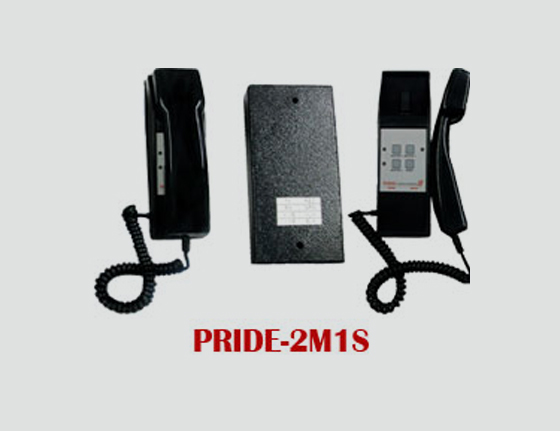

PRIDE-2M1S:

  • Master: 2
  • Slave: 1
  • Junction Box: 1

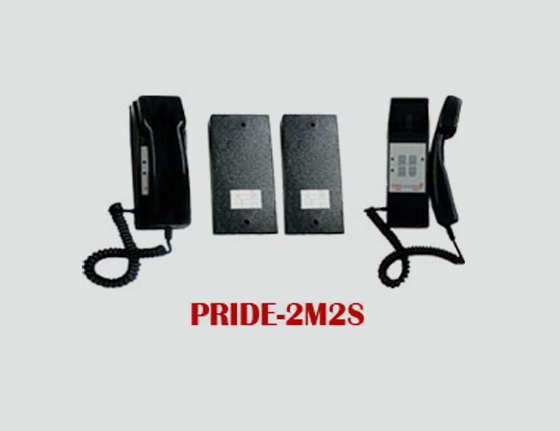

PRIDE-2M2S:

  • Master: 2
  • Slave: 2
  • Junction Box: 1

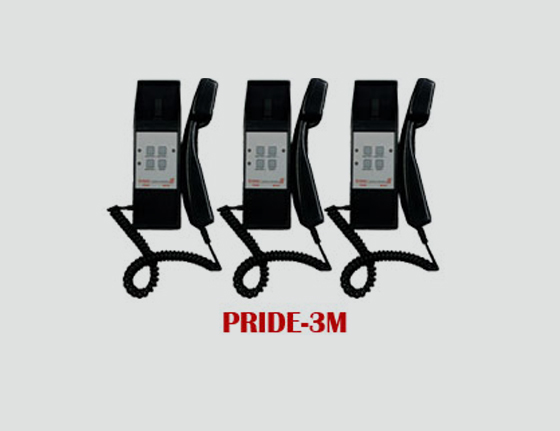

PRIDE-3M:

  • Master: 3
  • Slave: 0
  • Junction Box: 1

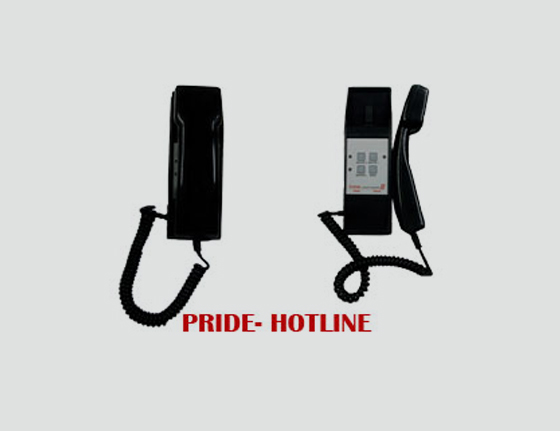

PRIDE-HOTLINE:

  • Master: 2
  • Slave: 0
  • Junction Box: 1

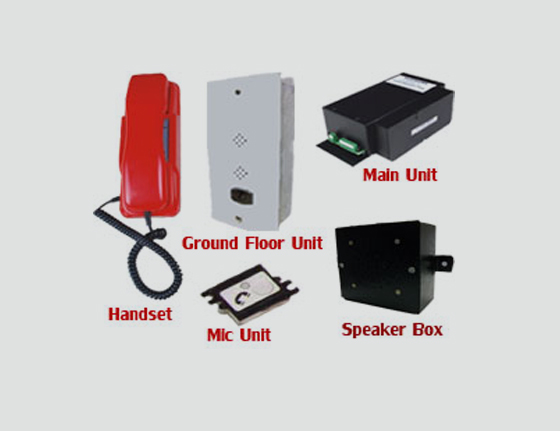

COMMANDO Series

Specification:

  • Supply voltage: 230V, 50Hz to be connected to main unit
  • Power consumption: 12VA
  • Power Backup: Ni-Cad 1.2 Volts@600mA 10Nos.
  • Telephone: Analog and specially designed to use its own masters.
  • Built in Battery backup
  • Dimensions:
    • Handset: 232mm x 89mm x 86mm
    • Main Unit: 226mm x 123mm x 77mm
    • Mic Unit: 49mm x 80mm x 42mm
    • Ground Floor Unit: 226mm x 123mm x 77mm

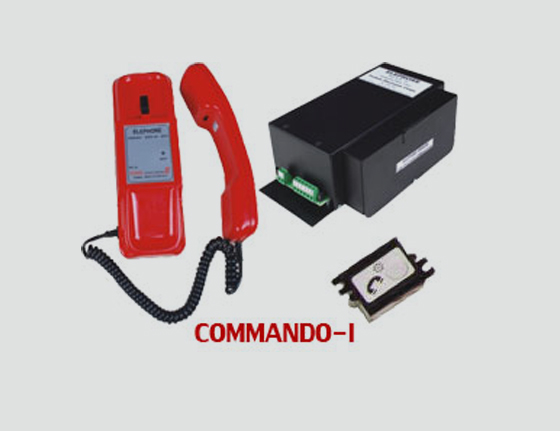

COMMANDO-I:

  • Handset: 1
  • Main Unit: 1
  • Mic Unit: 1

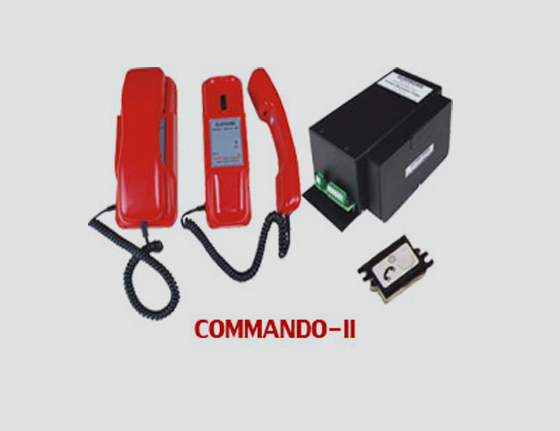

COMMANDO-II:

  • Handset: 2
  • Main Unit: 1
  • Mic Unit: 1

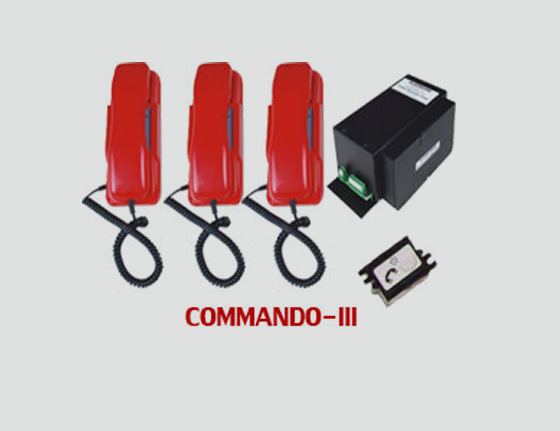

COMMANDO-III:

  • Handset: 3
  • Main Unit: 1
  • Mic Unit: 1

COMMANDO-IV:

  • Handset: 1
  • Main Unit: 1
  • Mic Unit: 1
  • Ground Floor Unit: 1

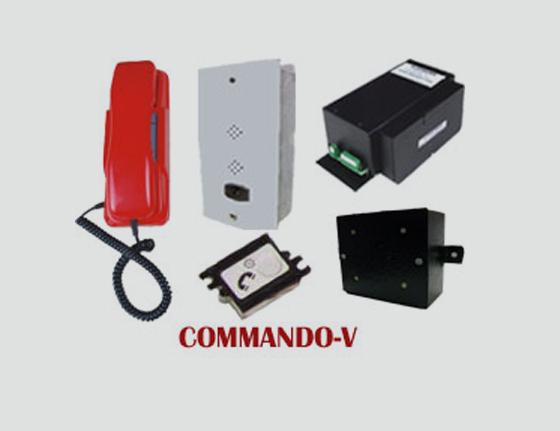

COMMANDO-V:

  • Handset: 1
  • Main Unit: 1
  • Mic Unit: 1
  • Ground Floor Unit: 1
  • Speaker Box: 1

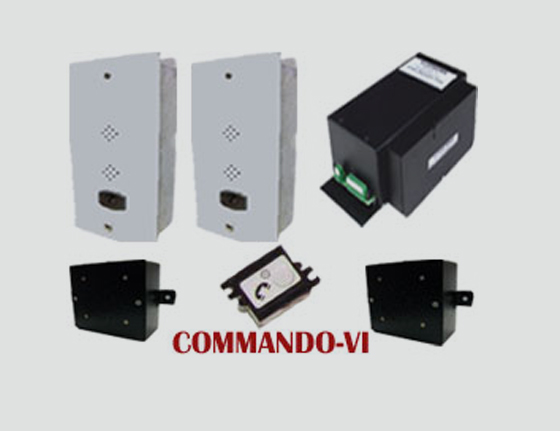

COMMANDO-VI:

  • Main Unit: 1
  • Mic Unit: 1
  • Ground Floor Unit: 2
  • Speaker Box: 2


RIDER series

Technic RIDER Series are used for Emergency Communication System. It can be used to connect to any different locations with one button press. Technic RIDER series are available in series of 6 i.e. 6,12,24,36 locations and so on. Below two standard models have been show for reference.

Features:

  • Can be used for 6-36 Elevators in a Complex.
  • Hotline Communication.
  • Power Backup Facility.
  • Easy Installation.

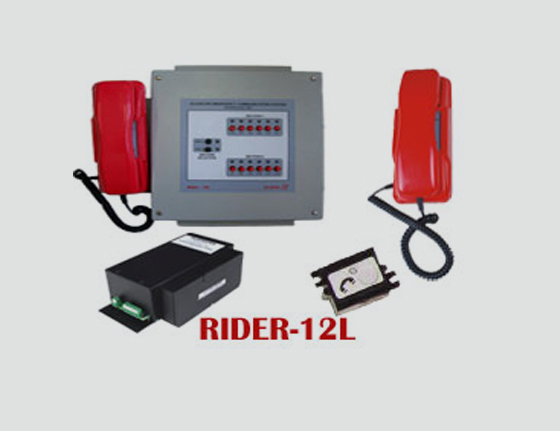

RIDER-12L:

Specification:
  • Input: 230V AC +/-10% 50Hz.
  • No. of Locations: 12 Locations.
  • Battery Backup: 1.2V, 600mA Nickel Cadmium 10nos. for Interfacing & Main Unit.
  • Quantity: Handset: 12, Main Unit: 12, Mic Unit: 12, Interfacing Unit: 1
  • Wiring Details: Handset to Interfacing Unit: 4 core cable, Handset to Main Unit: 5 core cable, Main Unit to Mic Unit: 2 core cable
  • Dimensions: Handset: 232mm x 90mm x 86mm, Main Unit: 226mm x 123mm x 77mm, Mic Unit: 49mm x 80mm x 42mm, Interfacing Unit: 365mm x 582mm x 175mm

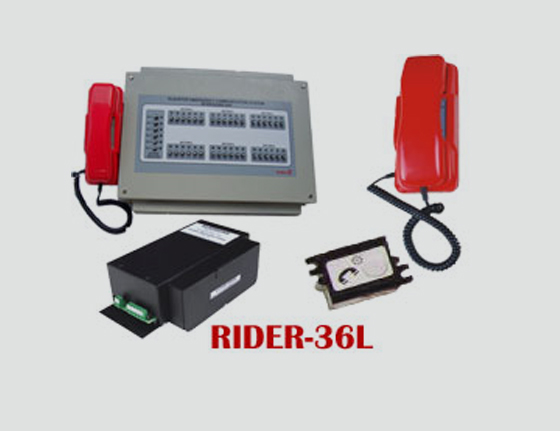

RIDER-36L:

Specification:
  • Input: 230V AC +/-10% 50Hz.
  • No. of Locations: 36 Locations.
  • Battery Backup: 1.2V, 600mA Nickel Cadmium 10nos. for Interfacing & Main Unit.
  • Quantity: Handset: 36, Main Unit: 36, Mic Unit: 36, Interfacing Unit: 1
  • Wiring Details: Handset to Interfacing Unit: 4 core cable, Handset to Main Unit: 5 core cable, Main Unit to Mic Unit: 2 core cable
  • Dimensions: Handset: 232mm x 89mm x 86mm, Main Unit: 226mm x 123mm x 77mm, Mic Unit: 49mm x 80mm x 42mm, Interfacing Unit: 365mm x 582mm x 175mm
