Switch Mode Power Supply(SMPS)
Technic Electronic Corporation is one of the pioneers in SMPS manufacturing. With experience of more than 27 years we offer wide range of reliable products for applications where efficient power management is required.
Quality raw materials are carefully chosen and used to ensure durability, high efficiency, long service life and low maintenance. Available in various technical specifications, our SMPS designs can be customized in accordance to client specifications. Highly reliable and rugged designs our SMPS are featured with very low ripple & noise and are suitable for continuous use. Our products are designed, manufactured and tested to meet tough industrial standards for high reliability and quality.
Technic SMPS widely finds its applications in Elevator Industries, Security Systems, Medical & Scientific equipments and so on. Few of the models have been listed below.
Custom Built Panels:

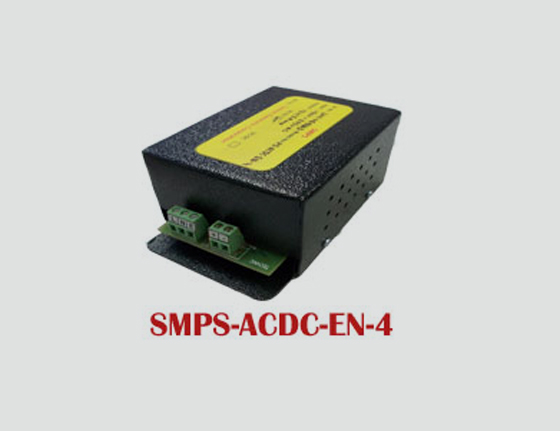

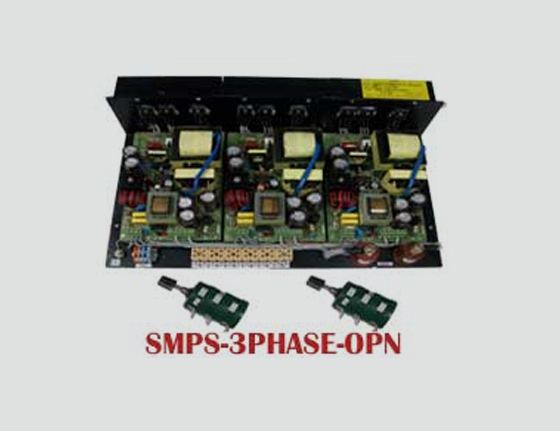

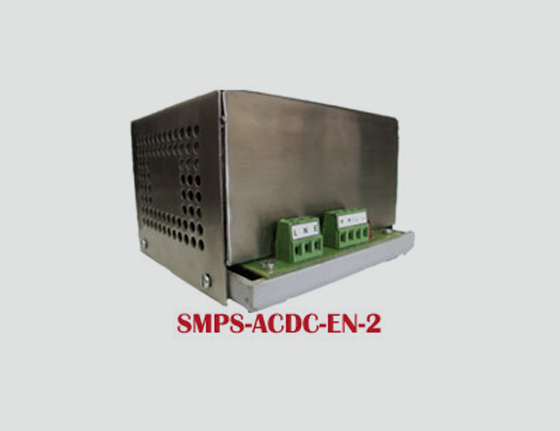

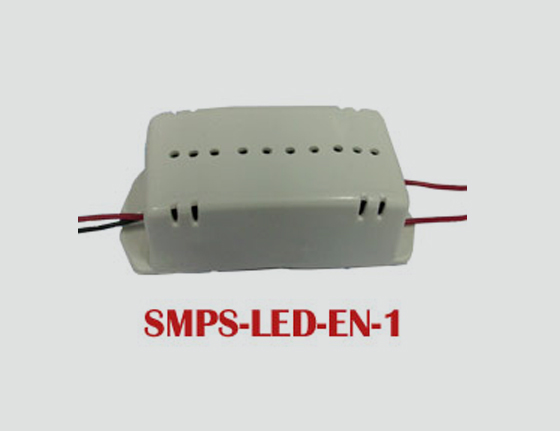

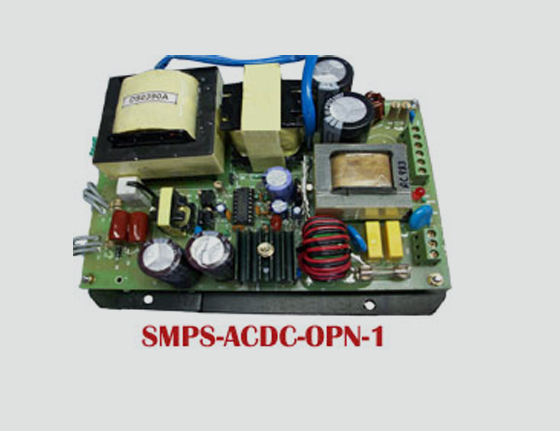

| Model No. | DCDC-EN-1 | ACDC-EN-2 | ACDC-EN-4 | 3PHASE-OPN | ACDC-OPN-1 | LED-EN-1 |
|---|---|---|---|---|---|---|
| Input Voltage | 24V DC | 230V AC | 230V AC | 415V 3phase AC | 230V AC | 230V AC |
| Voltage Range | 18V-26V DC | 18V-26V AC | 90V-270V AC | 380V-440V AC | 90-270V AC | 90-270V AC |
| Output | 12V DC | 26V DC | 12V DC | 40V DC | 10-130V DC | 12V DC |
| Output Power | 120W | 156W | 60W | 1000W | 780W | 24W |
| Efficiency | 80% | 78% | 86% | 85% | 80% | 81% |
| Cooling | FAN | Air | Air | Air | Air | Air |
| Short Circuit Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Overload Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Dimension | 90 X 210 X 120 | 75 X 95 X 108 | 60 X 100 X 77 | 90 X 250 X 380 | 75 X 176 X 134 | 25 X 80 X 85 |
