Technic Proximity Switches are professionally designed, manufactured and tested to meet tough industrial standards for use in the harsh environments encountered in Military, Aerospace and Marine. Wide range of Technic Proximity Switches are available to meet various needs of industries and commercial establishments.

Various proximity sensor targets require different types of proximity switches, thus Technic Proximity switches are available in three categories which are as follows:

• Inductive Proximity Switches.
• Capacitive Proximity Switches.
• Photoelectric Sensors.

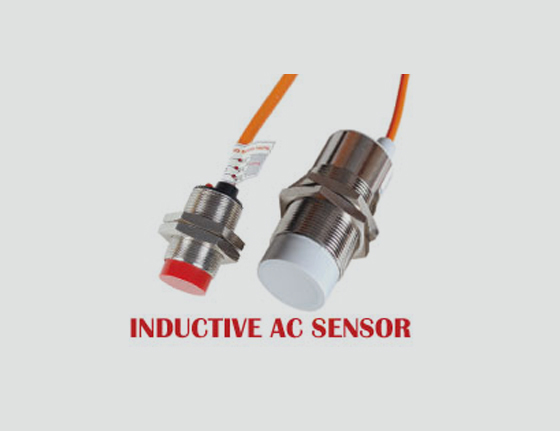

Technic Inductive Proximity Switches are designed to international standards which operate by the proximity of ferrous/non ferrous metals and are used for a wide range of industrial sensing and solid state switching applications.

Inductive Proximity Switches work on electromagnetic principle. It consists of a sensor, oscillator and a switching circuit. Inductive Proximity Switches are the most preferred switches for majority of applications which require accurate, non contact, detection of metal objects in various industrial applications.

• Low power consumption.
• They are resistant to atmospheric conditions such as humidity, dust, oil, etc.
• Available in wide range.
• Low cost.

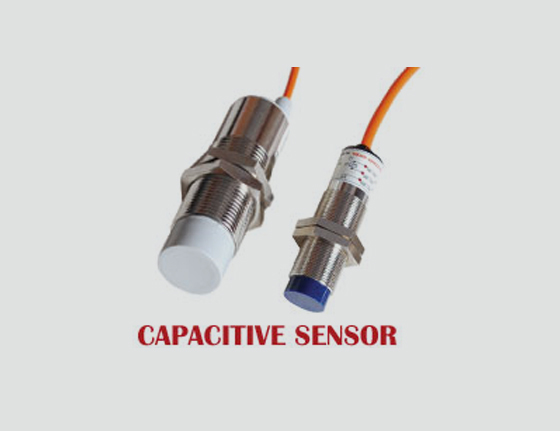

Technic Capacitive Proximity Switches are non contact switching devices designed to sense metallic and non metallic objects in both solid and liquid form. These switches are capable of sensing materials like wood, marble, glass, plastic, water & so on. Capacitive proximity Switches use the variation of capacitance between the sensor and the object being detected. It is useful in applications, such as detection of full containers and non-detection of empty containers.

• Operating Voltage: 10-30V DC
• Mounting Dimension: 8mm to 36mm (Box type available)
• Sensing Range: 1mm to 25mm
• Maximum load current: 300mA
• Hysteresis: < -15% of sn
• Operating temperature: -20 o C to +70 o C
• Output contact: NO or NC
• Switching frequency: 25Hz to 40Hz
• Led Indication: Yes
• Housing: Chrome plated brass
• Cable: 3 core 2m long)

Technic Photoelectric Sensors use light sensitive elements to detect objects. Its made of an emitter and receiver. Technic Photoelectric sensors are of following types:

• Diffuse Reflective Sensors

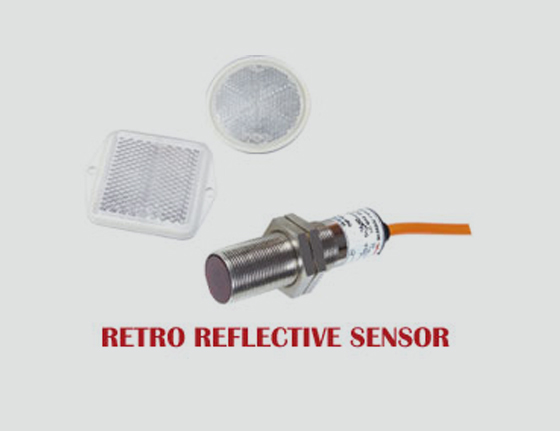

• Retro Reflective Sensors
• Through Beam Sensors

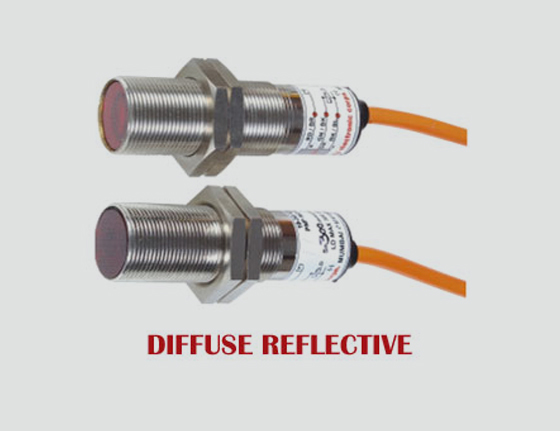

Emitter and Receiver are housed together in a unit and use the light reflected directly off the object for detection. The emitter continuously emits invisible modulate infrared beam which is detected by the receiver when the beam is obstructed by any opaque object.

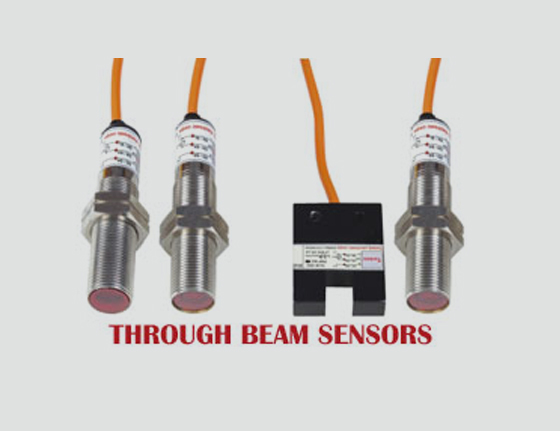

Emitter and Receiver are housed separately in two different units facing each other with their optical areas. It detects an object whenever the IR beam is interrupted. Amplifier circuit is incorporated in the receiver unit hence separate amplifier unit is not required and relay can be driven directly.

Control Unit is used to supply regulated DC voltage and it consist of a relay output which can be connected to 110V, 230V AC. Delayed Output is also available in control unit. A amplifier is also provided in Control Unit. Sensing Distance adjustment potentiometer is provided in the Control unit.

• Operating Voltage: 10-30V DC
• Mounting Dimension: 8mm to 36mm (Box type available)
• Sensing Range: 1mm to 25mm
• Maximum load current: 300mA
• Hysteresis: < -15% of sn
• Operating temperature: -20 o C to +70 o C
• Output contact: NO or NC
• Switching frequency: 25Hz to 40Hz
• Led Indication: Yes
• Housing: Chrome plated brass
• Cable: 3 core 2m long

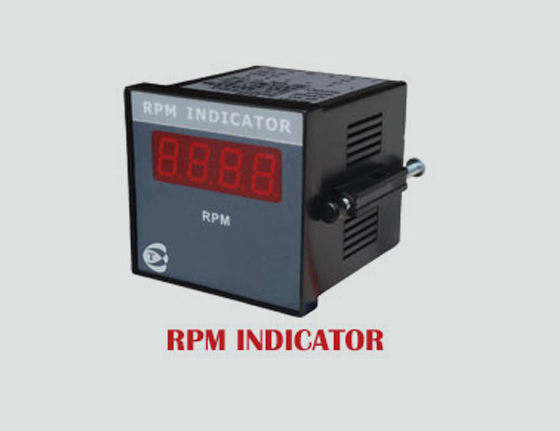

Microcontroller and high speed quartz crystal is used to measure the rpm with high accuracy. It responds quickly to sudden change of RPM.

• Input: Proximity Switch, Photo Sensor, Voltage Pulse (max 30V)
• Supply voltage: 230V AC +-10% 50Hz
• Range: 4.0 to 9999 RPM
• Resolution: 0.1RPM for 4.0 to 999.9 RPM ,1 RPM above 1000 RPM
• Accuracy: 0.02% + Resolution
• Display: 4 / 5 Digit, 0.56. LED display
• Panel cut-out: 68 x 68 mm
• Weight: 400 grams approximately
• Power Consumption: 5 Watts
• Dimension: 72mm x 72mm x 85mm , 48mm x 96mm x 130mm

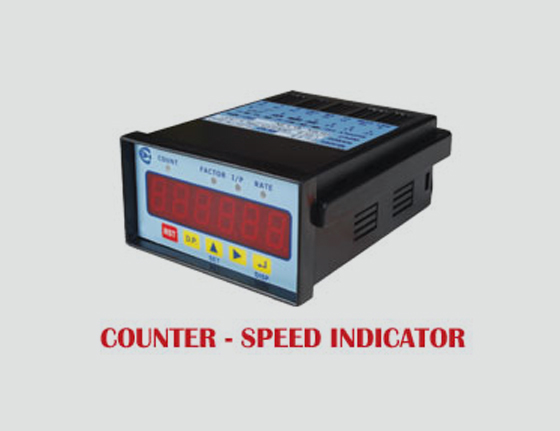

• Input(PNP): Proximity Switch(PNP), Photo Sensor, Voltage Pulse (max 30V)
• Supply voltage: 230V AC +-10% 50Hz
• Scale Factor: 0.00001 to 999999(user programmable)
• Memory: Count retains in Memory without power, without battery.
• Display: 6 Digit, 0.56. LED display
• Panel cut-out: 46 x 92 mm.
• Weight: 400 grams approximately.
• Power Consumption: 5 Watts
• Dimension: 48mm x 96mm x 130mm

• Input: Proximity Switch(PNP), Photo Sensor, Voltage Pulse (max 30V)
• Supply voltage: 230V AC +-10% 50Hz
• Settings: 3 user friendly soft keys for setting
• Preset Count 6 Digit
• Relay ON Time after Preset count reached
• Memory: Count retains in memory without power, without battery.
• Reset: Front switch & Back terminal (Manual) AUTO RESET (0 to 99.99 Sec User Settable)
• Relay contact: 1 CO rated @ 5 Amp 230V AC / 24 V DC.
• Batch Display 4 Digit out of 6 display Batch count.
• Count Display: 6 Digit 0.56 inch height Display.
• Relay mode: Relay ON at Preset Count. ON time set by AUTO RESET time.
• Count Control:
• Enable - Back Terminal open or LOW
• Disable - Back Terminal to HIGH
• Panel cut-out: 46mm x 92 mm.
• Power Consumption: 5 Watts
• Dimension: 48 mm x 96mm x 130mm
