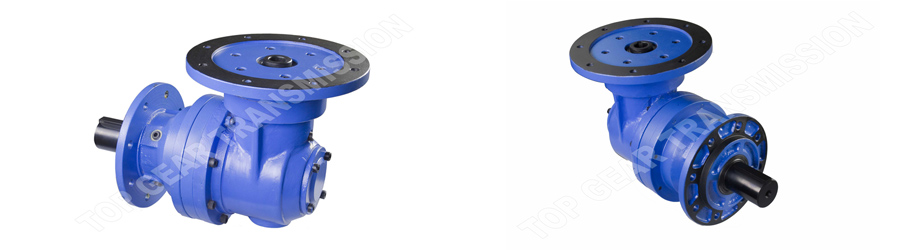

Bevel Planatery Drives

Bevel planetary drives suits the application demand where in space constraints for inline prime mover. The range of Bevel Planetary Drives comes with spiral bevel gears at input stage. The prime mover arrangement can be offered as solid shaft to mount a pulley or sprocket or coupling, and also for hollow female type where in flange mounted electric or hydraulic motor can be directly installed through a flexible shaft. Gear box mounting can be offered as foot mounting or flange mounting as per application demands. Use of Bevel Planetary Drives is becoming popular in various applications mainly for right angle transmission & replacement of conventional worm or bevel helical gearboxes.

Features :

  • Torque Capacity : 1400 Nm to 1700 Nm
  • Reduction Ratio : 12:1 to 10000:1
  • Power Ratio : 3.7 kw to 7.5 kw
  • Mounting : Foot / Flange

Applications :

  • Sugar Industry
  • Printing Machinery
  • Packing Machine
  • EOT Cranes
  • Steel Plant applications
  • Pipe Plants Machine Tools
