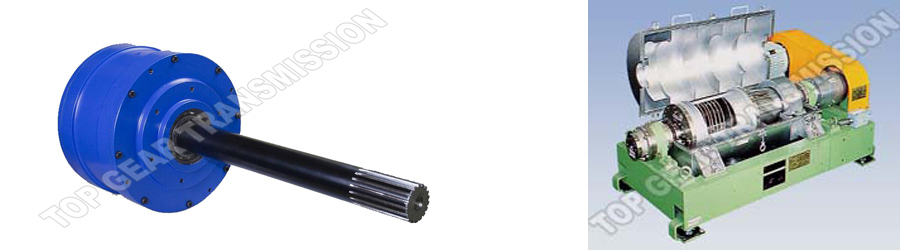

Centrifuge Decanter Drive
The decanter is a machine where the horizontal conical vessel rotates at very high speed and at the centre of the vessel there is a scroll which also rotates in the same direction at differential speed which allows separation of solid and liquid. The planetary drive used in the decanter machine is a high precision gearbox where all the gears have accuracy of DIN 6 & are dynamically balanced to withstand high speed of maximum 4000 rpm. Generally input shaft is kept stationary or given speed to achieve variable speed between bowl & scroll.Depending on the design of the decanter output shaft is designed of hollow female spline construction or extra long male splint construction. The range of products offered by Top Gear are being used by various decanter machine manufacturers in India and abroad.
Features :
- Power: 40 Kw To 150 Kw
- Torque: 3000 Nm To 15000Nm
- Output: Solid Splinted or Hollow Splinted
Applications :
- Decanter Application
