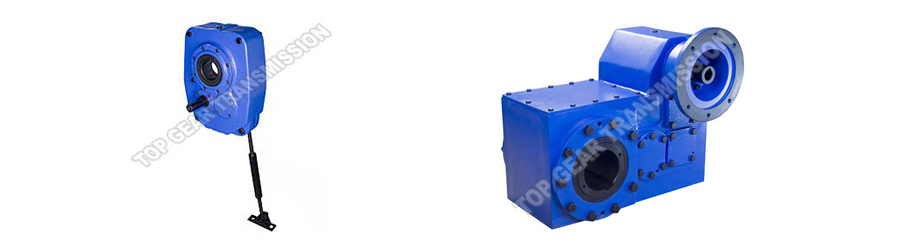

Shaft Mounted Helical Drive
Top gear offers a range of shaft mounted speed reducers to be used in various applications where the application demands to eliminate foundation and direct alignment. The SMSR series have got three ratios as 5:1, 13:1 & 20:1 and input offered as a solid shaft which can be connected by belt pulley supplied along with adjustable torque arm. AD series gear boxes are offer as heavy duty & higher reduction ratios and widely used in EOT cranes & many applications including material handling, chemical industry. The motor mounted as male
Features :
| Name | SMSR Series | AD Series |
| Power | 2 Kw To 50 Kw | 2 Kw To 10 Kw |
| Torque | 300 Nm To 12000 Nm | 4000 Nm To 30000 Nm |
| Reduction Ratio | 5:1 To 20:1 | 60:1 To 100:1 |
| Input | Solid Shaft | Hollow Input |
Applications :
- Material Handling
- Conveyor Applications
