Shrink Fit Technology

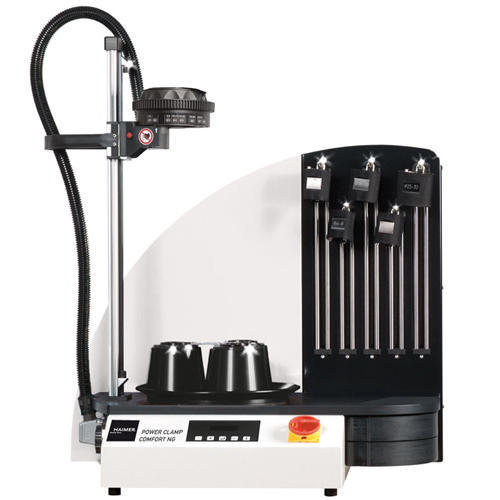

Power Clamp

For years, HAIMER has been leading in the development of inductive shrink technology for tool holders. Many patents, mainly in the area of inductive coils, are visible proof for innovation and progress. The patented coil technology in conjunction with the intelligent power electronics form the core of HAIMER shrink fit technology. Perfectly coordinated assembly groups and electronic components make sure that only the clamping area of the chuck is heated in the shrinking process. This reduces the shrinking and cooling cycle to a minimum. With the Power Clamp range, HAIMER provides its shrink-fit chucks with a comprehensive and well thought out range of devices of inductive shrink fit machines. By doing so, you profit from the fact that HAIMER perfectly coordinates shrink fit machines and chucks in its own production. The spectrum of the machines ranges from the beginner model, Power Clamp Basic, to the high-end device Power Clamp Premium Plus. Use the world’s largest range of products of shrink fit machines and coils.

Modular Boring Bars

Size (mm) Customized
Usage Metal Drilling
Material Tungsten Carbide

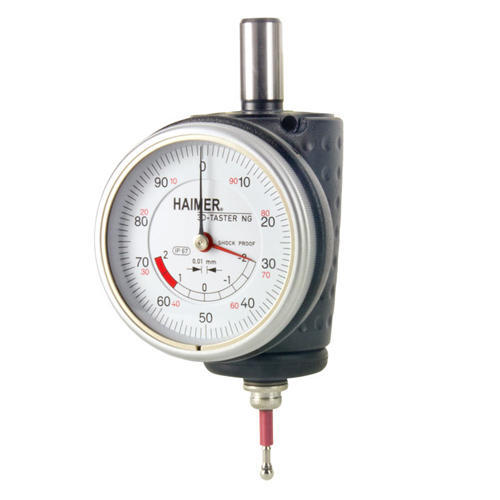

3D-Sensors

The HAIMER 3D-Sensors are very precise and wide-ranging measurement devices for milling and EDM machines (isolated probe tip). They are clamped into a tool holder and inserted into a milling spindle and make it possible to position the spindle axis exactly on the edges of the workpiece. This allows for zeros to be set and the length to be measured quickly and easily. You may approach in any direction (X-, Y-, Z-Axis). When the dial gage shows zero, the spindle axis is exactly on the workpiece edge. Only the HAIMER 3D-Sensor allows for the edge to be found on the first attempt. No calculating of the probe’s ball diameter is necessary – just Zero it out! Problems with mathematics or calculations are eliminated, allowing for fewer operator errors. By using the HAIMER Centro centering bores and arbors is quick and precise. HAIMER 3D-Sensors are very precise and versatile measuring instruments. Individually exchangeable probe tips provide even more flexibility!

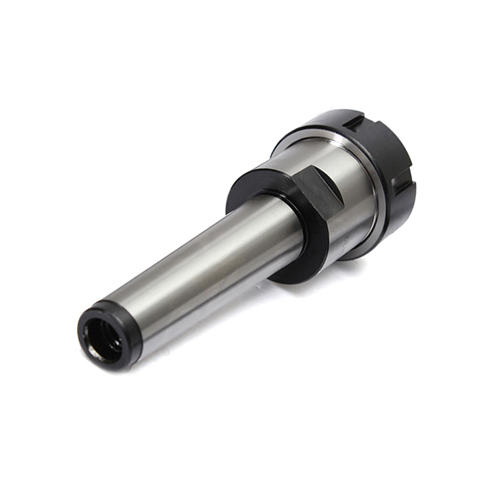

CNC Lathe Collet Chucks

Shank Dia Part No. Collet Clamping Range L L1 D1 Nut Spanner Approx. Wtin Kgs.
32 FTCL32CCHER25050 ER25 42751 82 50 42 NUTER25 SPER25W 0.7
FTCL32CCHER32055 ER32 42786 82 55 50 NUTER32 SPER32W 0.8
FTCL32CCHER40070 ER40 42820 82 70 63 NUTER40 SPER40W 1.2
40 FTCL40CCHER25050 ER25 42751 85 50 42 NUTER25 SPER25W 1
FTCL40CCHER32055 ER32 42786 85 55 50 NUTER32 SPER32W 1.1
FTCL40CCHER40065 ER40 42820 85 65 63 NUTER40 SPER40W 1.3
50 FTCL50CCHER25050 ER25 42751 90 50 42 NUTER25 SPER25W 1.6
FTCL50CCHER32055 ER32 42786 90 55 50 NUTER32 SPER32W 1.7
FTCL50CCHER40060 ER40 42820 90 60 63 NUTER40 SPER40W 1.9
