BEVMIX
Silent Features
- Pumps are sanitary, of stainless steel and sourced from Alfa –Laval
- Pipes And Pipe Fitting With High Quality (< 3 Ra) From Alfa Laval / Idmc.
- Electronic Controls-plc From Ge Fanuc Touch Screen Colour Tft 12.5 Inch Diagonal With High Graphic Resolutiuon Display From Exor Italy.

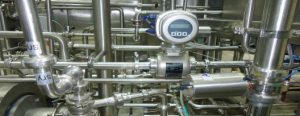

- Flow Meters ,probes From E & H – Germany
- Pipes Joints with high welding quality by means of automatic orbital welding machines. Main mixing pump From Alfa Laval Germany.
- PHE from Alfa Laval / Idmc
Maximum Mixing ratio 1:3 (syrup : water) - Brix accuracy: +/- 0.05 Deg.
- Maximum carbonation: 11 grams / ltr.
Carbonation accuracy: +/- 0.1 GV - De aeration efficiency: 75% Beverage
Temperature: 1 Deg. C @ incoming water temp. 35 deg. C.
Temperature accuracy: +/- 1 deg. C. - Beverage temp. drop: Max. 1 Deg. C. / 10 min. storage
CIP flow: 10% higher than rated mixer capacity
| MODELS OF BEVMIX |
| Bev Mix – 8 (Max. beverage output: 8 KL / Hr.) |

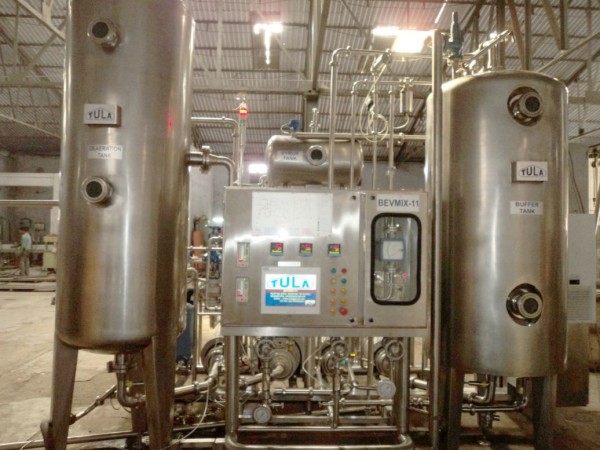

| Bev Mix – 11 (Max. beverage output: 11 KL / Hr.) |
| Bev Mix – 15 (Max. beverage output: 15 KL / Hr.) |
| Bev Mix – 18 (Max. beverage output: 18 KL / Hr.) |
| Bev Mix – 24 (Max. beverage output: 24 KL / Hr.) |
| Bev Mix – 28 (Max. beverage output: 28 KL / Hr.) |
- Mixing De aerated water with syrup means of a Pneumatic mixing valve with Orifice - Screw gauge control.
- The Water & Syrup tank head pressure to be controlled, to control the flow.
- The mixed Beverage falls in the mix tank. The final Brix to be measured before the filler.
- Mixing ratio and flow can be precision controlled by screw gauge manually.
- Removes air from the incoming treated water to keep the beverage dissolved oxygen (DO) level down.
- The de aeration is done with vacuum as well as with forced CO2 metho
- 2 stage SS water tank with continuous water circulation under vacuum condition for De aeration.
- Water ring type vacuum pump is used to create vacuum.
- The CO2 is mixed in chilled beverage by online venturi system by measuring CO2 flow. The CO2 is controlled by manual vernier graded valve.
- The option of tank carbonation is also possible for carbonation.
