DEWATERING PUMPS

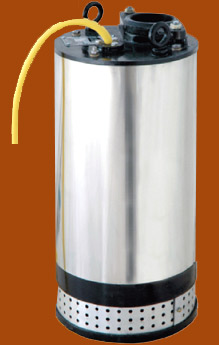

SUBMERSIBLE DEWATERING PUMPS( SL - SERIES )
- Portable & self priming with bottom suction which enables the pump to dewater up to the lowest level.
- Motor available in "F" class insulation also have option of submersible winding.
- Motor - 2800 rpm suitable for 230 VAC single phase for pumps up to 2 HP and for entire range 415 vac,3ǿ ,50 Hz power supply.
- Motor is jacketed hence cooling takes place faster.
- Dual mechanical seal. for protection of motors, pump side seal Tc Vc Tc.
- Cable - of suitable rating x 4 core submersible cable of 10 mtrs length free with the pump.
- Material of construction Up to 10 HP - The entire pump and motor body made of aluminum alloy and outer stainless steel jacket,
hence light weight and portable
- 15 to 30 pumps are in fabricated MS construction. Impeller - SS - 410.

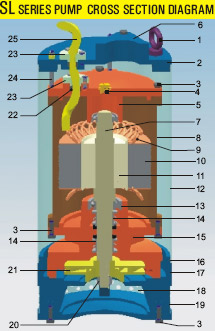

GNS SERIES PUMP CROSS SECTION DIAGRAM
| Sr. |
PART NAME |
Sr. |
PART NAME |
| 1. |
LIFTING HOOK |
2. |
TOP SHELL |
| 3. |
BOLT |
4. |
DRAIN NUT |
| 5. |
TOP END SHIELD |
6. |
DELIVERY FLANGE |
| 7. |
SHAFT |
8. |
MOTOR BODY |
| 9. |
WINDING |
10. |
STATOR |
| 11. |
ROTOR |
12. |
MIDDLE SHELL |
| 13. |
BEARING |
14. |
MECHANICAL SEAL |
| 15. |
BOTTOM END SHIELD |
16. |
'O' RINGS |
| 17. |
BOTTOM SHELL |
18. |
STRAINER |
| 19. |
BOTTOM PLATE |
20 |
NY-LOCK NUT |
| 21. |
IMPELLER |
22 |
CABLE GROMMET |
| 23. |
CABLE GLAND |
24 |
STUD |
| 25. |
CABLE |
|
|

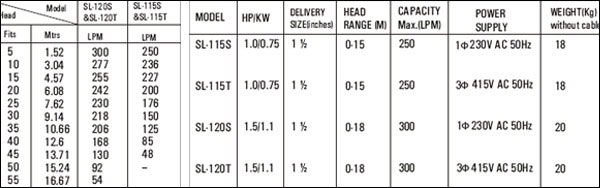

MODEL - SL - 120S/T, SL-115S/T

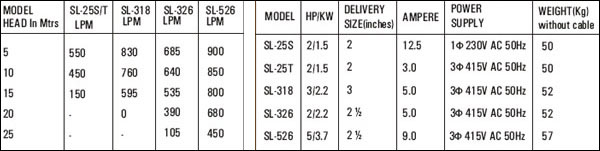

MODEL - SL - 25S/T,SL-318,SL-326,SL-526

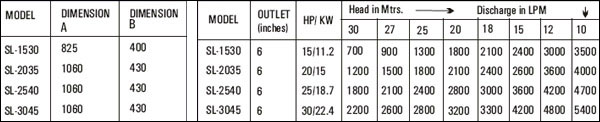

MODEL - SL - 721,SL-1020,SL-736,SL-1040
MODEL - SL - 721,SL-1020,SL-736,SL-1040
