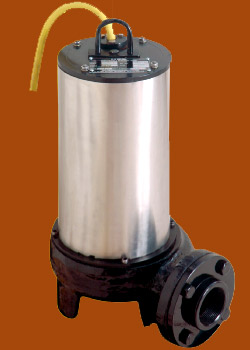

GNS-SUBMERSIBLE EFFLUENT PUMPS ( DOMESTIC SERIES )
Handling Light Sewage, Effluent, Kitchen Waste, Toilet Waste Model: E075-S, E010-S, E075-T, E010-T for handling solids for upto 35mm spherical, used in domestic sewage, effluents, waste water, kitchen waste in hotels, etc. and hospital waste.
- For handling water with suspended solids up to 35mm sphere
- Non- clog vortex impeller.
- Motor- 2800 rpm oil filled with "F" class insulation,suitable for three phase and single phase power supply.
- The motor is jacketed & filled with the coolant. Thus the pump is suitable for working in worst of the working conditions having
longer dry running capacities - Dual ball bearing running in oil bath.
- Dual mechanical seal.
- Cable - 1.5 sq. mm. x 4 core double sheathed submersible cable of 5 mtrs length provided as standerd length.
- Extra cable can be provided with prior information.
- Material Of construction - All Cast Iron with stainless steel jacket.
- Stainless Steel hardware for easy MAINTENANCE.
- Horizontal discharge with female flange of 50mm.

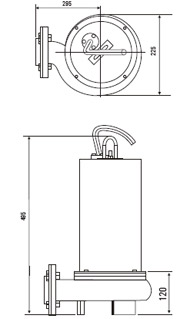

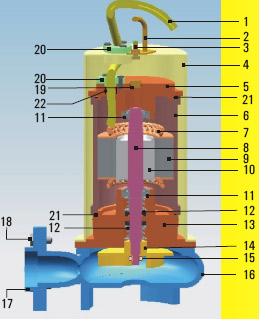

GNS SERIES PUMP CROSS SECTION DIAGRAM
| Sr. | PART NAME | Sr. | PART NAME |
| 1. | CABLE | 2. | LIFTING HOOK |
| 3. | BOLT | 4. | OUTER SHELL |
| 5. | TOP END SHIELD | 6. | MOTOR BODY |
| 7. | WINDING WIRE | 8. | SHAFT |
| 9. | STATOR | 10. | ROTOR |
| 11. | BEARING | 12. | MECHANICAL SEAL |
| 13. | BOTTOM END SHELL | 14. | IMPELLER |
| 15. | NY-LOCK NUT | 16. | CASING |
| 17. | DELIVERY FLANGE | 18. | BOLT |
| 19. | DRAIN NUT | 20 | CABLE GLAND |
| 21. | 'O' RINGS | 22 | CABLE GROMMET |
| MODEL | GNS -150-S GNS -150-T |
GNS -100-S GNS -100-T |
GNS -75-S GNS -75-T |
| HEAD(M) | (LPM) | (LPM) | (LPM) |
| 2 | 485 | 375 | 295 |
| 4 | 440 | 325 | 250 |
| 6 | 390 | 270 | 285 |
| 8 | 345 | 210 | 125 |
| 10 | 280 | 145 | 40 |
| 12 | 220 | 55 | - |
| 14 | 150 | - | - |
| 16 | 60 | - | - |
| 18 | - | - | - |
| 20 | - | - | - |
| MODEL | HP/KW | SOLID HANDLING | POWER SUPPLY | DELIVERY SIZE | MINIMUM LEVEL OF SUBMERGENCE |
| GNS-75-S | 1.0/0.75 | 35 mm | 1ф,50Hz 230V | 50 mm | 120 mm |
| GNS-75-T | 1.0/0.75 | 35 mm | 3ф,50Hz 415V | 50 mm | 120 mm |
| GNS-100-S | 1.5/1.1 | 35 mm | 1ф,50Hz 230V | 50 mm | 120 mm |
| GNS-100-T | 1.5/1.1 | 35 mm | 3ф,50Hz 415V | 50 mm | 120 mm |
| GNS-150-S | 2.0/1.5 | 35 mm | 1ф,50Hz 230V | 50 mm | 120 mm |
| GNS-150-T | 2.0/1.5 | 35 mm | 3ф,50Hz 415V | 50 mm | 120 mm |
