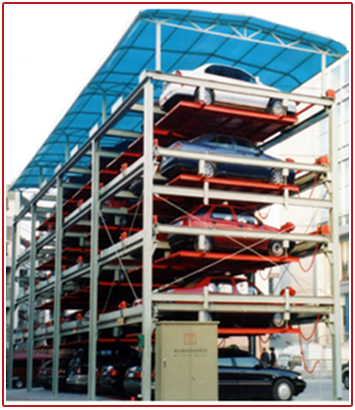

Computerized Car Parking System

Operation :
  • Except the top floor, each floor has a spare parking space and front-rear guide rails. Each parking space has a pallet which moves horizontally on the guide rail.
  • The pallets on the top floor make up-down movements while the ones on the ground floor make left-right horizontal movement, the other ones can move either left to right or up and down. Through continuous space shift, parking and fetching a car can be realized.
Features :
  • Multiple parking cars to the limited parking space save a great deal of room.
  • PLC control, easy operation, convenient parking, touch screen.
  • 4-point suspending wire rope for driving system, stable movement, ensure the safety of the up and down of the cars.
  • Falling-proof system which controls car standard and parking place
  • Photoelectric security checking, Lift stops automatically if somebody goes in by accident.
  • Emergency Stop Button
  • High-quality steel, inside and outside thermal-galvanization
Vertical Horizontal Parking System

Operation :
This type of parking system is designed 3 levels of top, middle and bottom. Two levels are on and above the ground, the bottom level is underground. There is an exchange space in the middle level. The spaces in top and bottom levels may lift up and down automatically and the space in the middle level can slide left and right. Spaces in the middle level are the same line with ground for cars going in and out freely. When we need to park or get a car in the top or bottom levels, the space in the middle level over or under this space will slide to the exchange space to form a lifting passage. This space will be operated down to the ground for parking and retrieving.
Features :

  • Save land area and take full use of the underground space to raise more parking numbers.
  • It has advantages of steady operation, low noise, fast operative speed and short time of parking.
  • Fast maintenance and simple malfunctions solution with PLC logic circuit
  • Multi-channel safety protection and series of safety protection

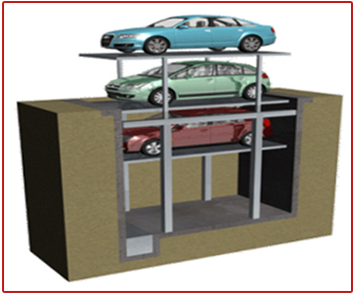

Pit Lifting Parking System

Operation : Three spaces of top, middle and bottom are united and lift together. The middle and bottom spaces are underground in the pit. The top level space is in the same line with the ground for cars parking in and out directly. The middle and bottom spaces may park cars when the system is lifted.

Features :

  • Save land area and take full use of the underground space to raise more parking numbers.
  • It has advantages of steady operation, low noise, fast operative speed and short time of parking.
  • The middle and bottom levels have functions of dustproof, rainproof and anti-theft.
  • Fast maintenance and simple malfunctions solution with PLC logic circuit.
Stack Car Parking System

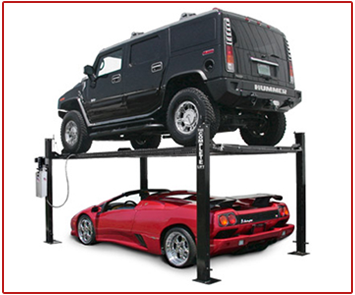

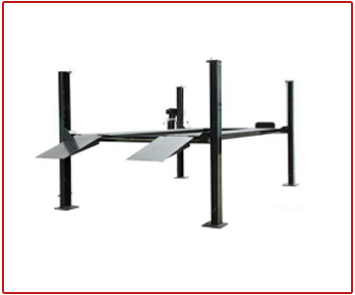

One on One stack Parking Lift
  • Hydraulic Driven
  • 3000Kgs. capacity, instantly double parking space
  • Safety locks on all post for added safety
  • Simple installation
  • Operates on Single Phase 230VAC
  • Diamond plate runway and ramps for easy use
  • Description.
Specification
  • Lifting capacity: 3000 Kgs
  • Lifting height: 1900mm
  • Overall length: 4453mm
  • Motor capacity: 220VAC
