Hospital Elevator
What is hospital elevator and how to choose a hospital elevators?
Hospital elevators are used for simple transportation of a patient on wheelchair to wheeling away a critical patient on stretcher without disturbing his life support system with doctors and nurses, smoothly, silently and swiftly, without jerks and shocks. Elevators for medical purpose are vertical transport equipment used in hospital and other relevant places to move patients and surgical instruments. Beacon offers Hospital elevator in Auto Door and Manual door operation.
Hospital Hydraulic Passenger Lifts
The Hydraulic elevators are based on the motor mechanism for hydraulic lifts. The system operates on the elevator valves, submersible motors and screw pumps are manufactured by specialized European companies.
Why Hydraulic Lifts?
- No need for deep pit and head room
- Does not require conventional lift well / room
- Not necessary to have 3 phase power
- Can come down in case of power cut by opening manual valve
- Can be totally customized for your needs / space available
- Very economical compared to conventional lifts
Technical specifications/ features:
- Can be made for 1 / 2 / 3 floors
- Load capacity : up to 750 kgs on lift car
- Can be designed for wheel chair movement
- Lift speed : usually 4 to 6 meters per minute
- Power required : usually 2 to 3 h. P (single/three phase)
- Has hose burst valve for total hydraulic circuit safety
- Interior of car and outside doors can be designed to suit your taste (by us or your architects/interior designers)
Options :
- Light / fan / telephone fittings inside lift car
- Type of outside doors & car door and their interlocking method (electrical or electro mechanical types)
- Input power : single phase / 3 phase
- Installations possible both inside house / outside house.
Hydraulic Elevators Salient Features :
- Easy to install and requires a small space.
- Power consumption like any household electrical
- appliance. Also wide range availability.
- Removes architectural barriers, Retrofit.
Hospital/Stretcher Elevators (Lifts)

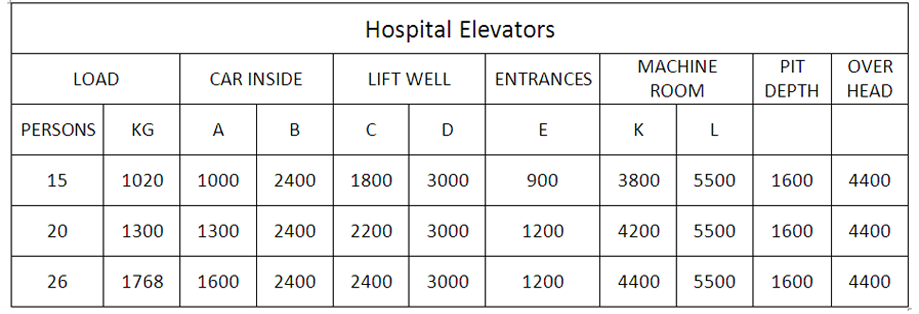

The Vertical transportation system for modern hospitals have special requirements such as spacious & durable car, smooth & comfortable travel, accurate stop with emergency control features and above all, reliability with safety. The car dimensions are as per the Indian Standard requirements for Hospital lifts. We have proficiency in producing a broad range of stretcher lifts that can be fitted in a stretcher or medical component with no trouble. Main features of these lifts are used for hospital purpose, modified as per client specifications, the best possible performance, and smooth operation. These stretcher lifts are mostly employed in hospitals & nursing homes.
