Passenger Elevator (Manual Door)

Ramayan Elevators designs and manufactures a wide range of manual doors for elevators, used mainly in residential applications, able to guarantee high performances at competitive cost. Ramayan Elevators manual doors offer several advantages: high quality travel comfort, smooth, noiseless operation, fast "plug-n-play" installation, low maintenance, low operation cost and a complete host of user-friendly options, such as for example antiskid sill and "clear & safe" vision.

What is passenger elevators, how to choose a passenger elevators?

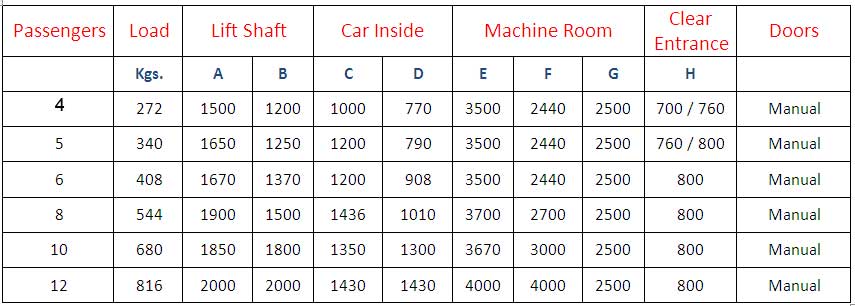

A passenger elevator (Lift) is designed to ferry people from point A to point B vertically. The modern passenger lift is a simple means of transport within a building. Passenger elevators capacity is related to available floor space. Generally passenger elevators are available in typical capacities from 4 to 26 PASSENGER and speed varying between 0.5 Meter/Sec to 2.5 Meter/Sec. Type of Passenger elevator is depends on type of building (Commercial, Residential, Hotel, Mall, Housing Society etc…) and parameter such as passenger traffic movement. Budget involved is also a deciding factor between manual door & auto door passenger elevators. RAMAYAN offers all types of passenger elevator weather auto door or manual doors with variety of aesthetic choices for interior, flooring & false ceiling.

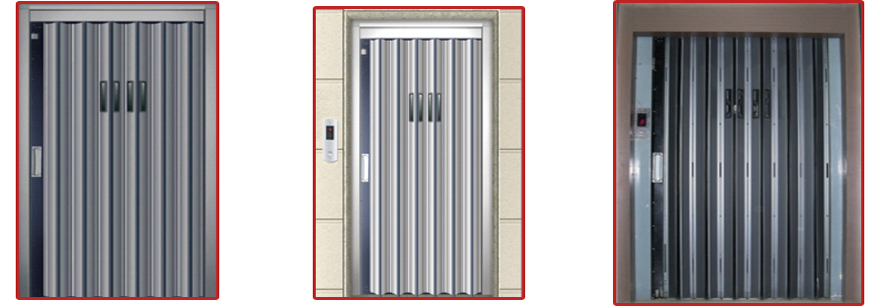

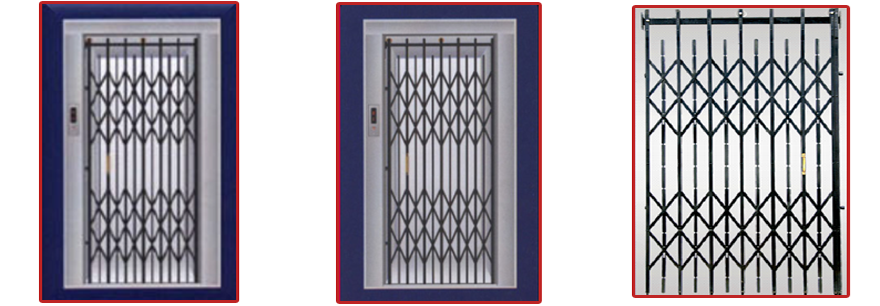

MS/SS Collapsible Door (Clear Opening 700/800 mm)
(Full Mid Bar – M.S Collapsible Door)

Ramayan Elevators Pvt.Ltd. is proud to present premium quality Full Mid Bar – M.S/S.S Collapsible Door that are made from superior quality Mild Steel that offers durability and strength to them. Our Collapsible Doors are available in different sizes and specifications and are praised for their unique construction features like:

  • Noiseless operation
  • Smooth functioning
  • High durability
  • Supreme strength

We also provide customization option to our esteemed clients because of which we have been able to procure large clientele. The wide demand of our Imperforate Doors has testified our claims of being one of the top notch Imperforate Doors manufacturers and suppliers in India. Technical Specifications :

  • Material : Mild Steel / MSI Stainless Steel
  • Width : From 600 mm onwards
  • Height : Standard 2000 mm and also as per specification
  • Rapper : 3" width and 5' width
» MS/SS Imperforated Door (Clear Opening 700/800 mm)

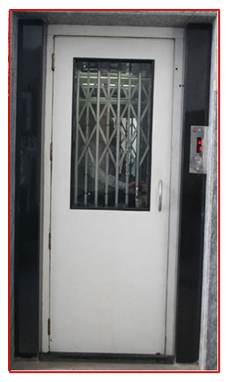

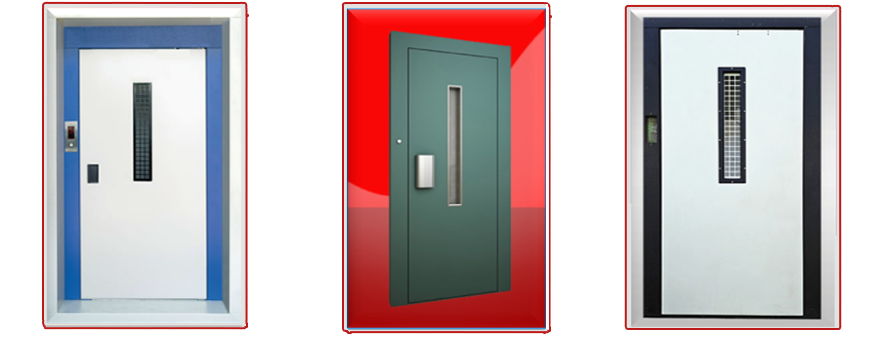

Metal Swing Door (Clear Opening 700/800 mm)

Highlights

  • Solid Built & yet Light Weight
  • Anticorrosive coating for Enhanced life
  • Concealed & Vandal proof Door Closer, Handle & Hinges
  • Flush front facade, Enhanced Aesthetics
  • Effective skin protection till Installation to endure hostile site conditions
  • Lifelong Dimensional Stability
  • Compatible with Any Kind of Door Lock
  • Enables Full Opening even at narrow Architraves

General Features

  • Opening: W=800mm, H=2000mm
  • In MS Pre-coated / Painted / Powder Coated or SS
  • Colour Scheme – Ivory (Panel) & Azure Blue (Frame)
  • Door Frame without Hall Button Cutout

Optional Extras

  • Custom openings
  • Custom Finishes
  • Door Frame with Hall Button Cutout
  • Door Lock
  • Offset Vision Opening
  • Glass Swing Doors
  • Glass Telescopic Doors

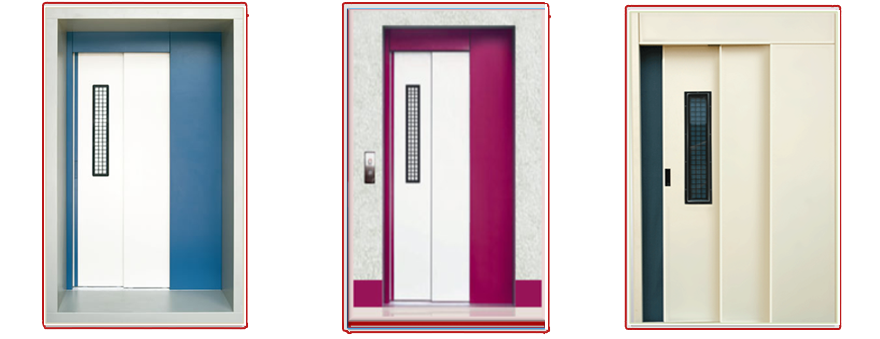

Manually Operated Telescopic Landing & Car Doors (Clear Opening 700/800 mm)

Highlights

  • Anticorrosive coating for Enhanced life
  • Compatible for Any Kind of Door Lock
  • Enhanced Aesthetics
  • Effective skin protection till Installation
  • Concealed Handle Fire Resistant Design
  • Self Door Closing Mechanism
  • Compatible for Retrofitting

General Features

  • Opening W=700/800mm, H=2000mm
  • Single Skinned Door Panels
  • In MS Pre-coated / Painted / Powder Coated or SS
  • Colour Scheme – Ivory (Panel) & Azure Blue (Frame)
  • Door Frame without Hall Button Cutout
  • Optional Extras
  • Custom openings
  • Custom Finishes
  • Double Skinned door Panels
  • Door Frame with Hall Button Cutout
  • Door Lock
  • Glass Swing Doors
  • Glass Telescopic Doors
