B5 Flang Mount Motor

We bring forth a range of B5 Flange Vertical Motors, which has a protective cover mounted vertically placed on the top of a motor to protect various wear and tear. This type of flange is widely used with close-coupled pumps, speed reducers and similar other equipments. Standardization of frame sizes is an important part of motor interchangeability. These flange motors always have threaded mounting holes that are visible in the face of the different parts.

Features:
• Low maintenance
• Low power consumption
• High efficiency

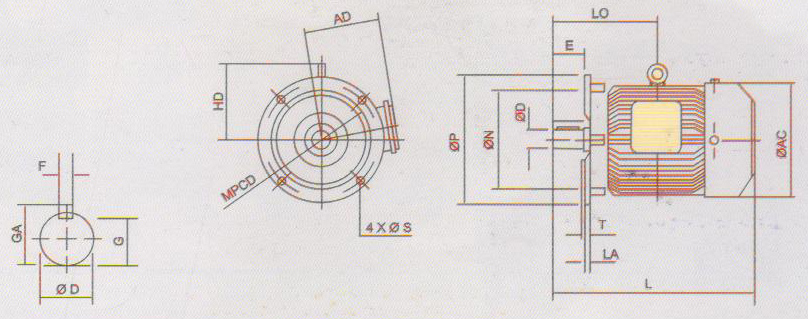

Fr. Size	L	LO	AC	AD	HD	D	E	F	GA	G	P	M	N	S	T	LA	Tolerance of
																	D	F	M	N
63	210	-	115	95	-	11	23	4	12.5	8.5	140	115	95	10	3	9	+0.008 -0.003 (j6)	+0.000 -0.030 (h9)		+0.013 -0.009 (j6)
71	240	-	140	105	-	14	30	5	16	11	160	130	110	10	3.5	9	+0.008 -0.003 (j6)			+0.013 -0.009 (j6)
80	277	-	162	128	-	19	40	6	21.5	15.5	200	165	130	12	3.5	10	+0.009 0.0.004 (j6)			+0.014 -0.011 (j6)
90S	312	-	173	135	-	24	50	8	27	20	200	165	130	12	3.5	10		+0.000 -0.036 (h9)
90L	337	-	173	135	-	24	50	8	27	20	200	165	130	12	3.5	10
100L	370	193	195	165	145	28	60	8	31	24	250	215	180	15	4	11
112M	400	200	226	178	173	28	60	8	31	24	250	215	180	15	4	11				+0.016 -0.013 (j6)
132S	450	239	260	198	188	38	80	10	41	33	300	265	230	15	4	12	+0.018 -0.002 (k6)
132M	488	258	260	198	188	38	80	10	41	33	300	265	230	15	4	12		+0.000 -0.043 (h9)	+0.0 -0.5
160M	580	323	310	240	230	42	110	12	45	37	350	300	250	19	5	13
160L	624	345	310	240	230	42	110	12	45	37	350	300	250	19	5	13
