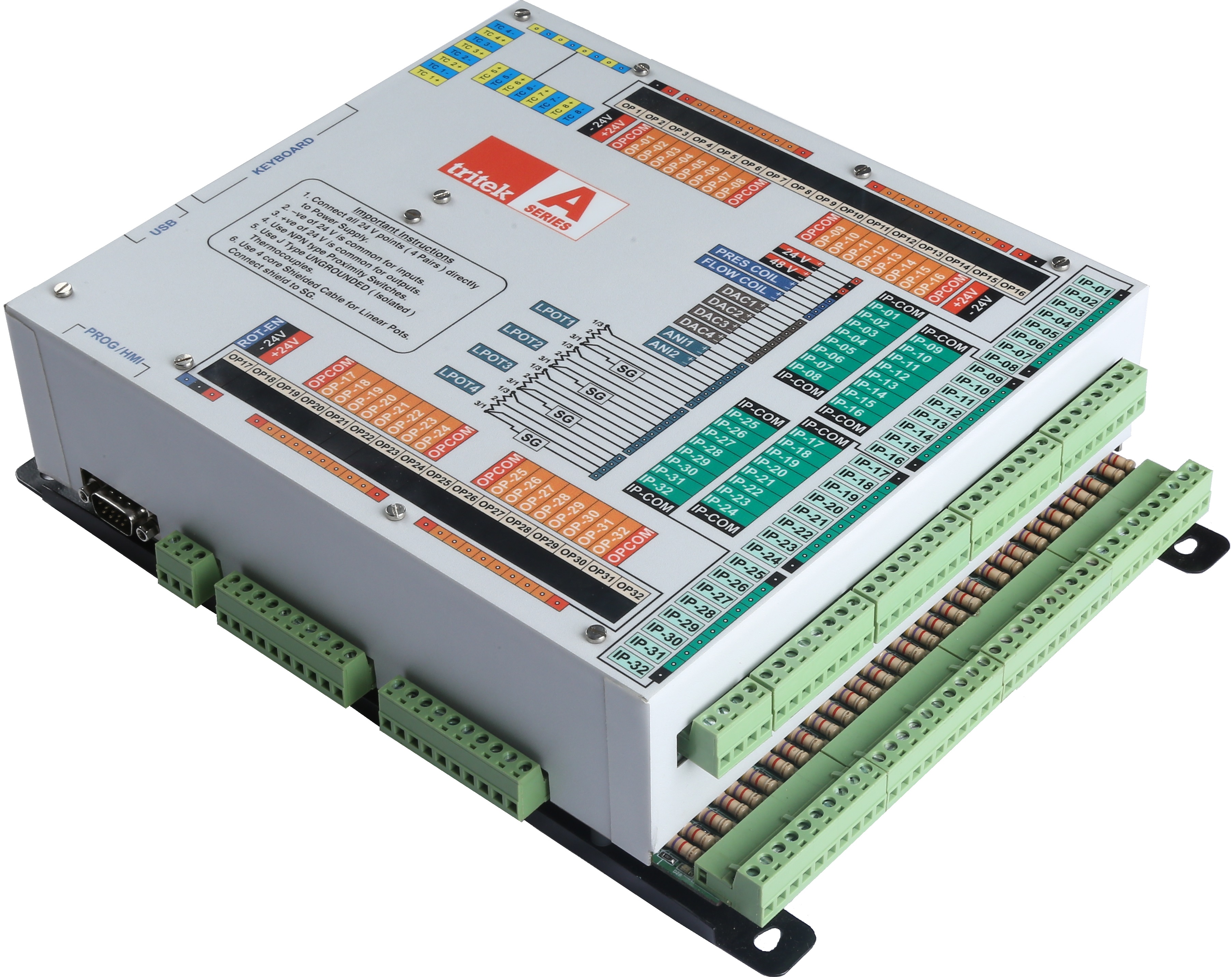

A Series PLCs
Leap into the Future
The Tritek A Series Programmable Logic Controllers (PLCs) offer you terrific value and features! Based on latest 32 Bit ARM Microcontroller, it offers terrific features and extremely high reliability!
Key Features:
- Single Box Cost Effective solution
- Complete Hardware for Standard Moulding Machine (Injection or Blow)
- Can be coupled with wide range of HMIs.
- Multiprocessor system with 16 bit ADCs
- 6 Analog Inputs can handle 4 Linear Scales and 2 Transducers.
- 4 Configurable Analog Outputs.
- Inbuilt Proportional Valve Amplifier.
- USB Pen Drive Interface for Program Update and Machine Backup
- Fuse Protected Outputs to directly drive machine valves.
- Extensive LED Indicators for easy troubleshooting.
TERRIFIC FEATURES. TERRIFIC VALUE.
ACCURACY : Accurate digital temperature indication and control
SAFETY : Temperature based interlocking for machine safety (cold screw safety)
HI-LO SETTINGS : Individual high and low limit setting for each zone
DUAL TEMPERATURE CONTROL : Dual point temperature controller capable of driving blowers
STORAGE : Parameter storage in EEPROM (permanent memory not dependant on battery)
MEMORY : Mould memory of 100 moulds to store parameters
MEMORY STORAGE : Mould memory storage under mould name for easy recall
TIMER : Cycle timer with settable limit
COUNTER : Shot counter with settable limit, as well as hourly shot counter for the last 24 hours
ARCHITECTURE : Latest 32 Bit Micro-controller and Versatile software architecture capable of handling very complex machine requirements
CUSTOMIZATION : Front Keyboard and Display as well as machine software can be customized to suit specific machine requirements
CORE FACTS :
| Core | A Series |
| Digital Inputs (contact or NPN) | 32 |
| Digital Outputs (24VCD 1.5A) | 32 (Fuse Protected) |
| Thermocouple IP | 8 (J Type, Ungrounded) |
| Analog Inputs | 6 (4 LinPot and 2 Transducers) |
| Analog Outputs (0 to 10 V or -10 to +10 V) | 4 |
| User Interface | Coulour TFT with Touchscreen (10",7",19") |
| Power Input24 | 24V DC |
| Maximum Ambient | 45'C |
CONTROLLING THE INDUSTRY FOR ALMOST 30 YEARS!
If Tritek PLCs have been in control in the Plastics industry for over 30 years, the reasons are clear. When you settle for Tritek, you are assured of complete control systems from a single source. (This includes proportional valve amplifiers and different user interfaces to select from.) Plus we provide complete development support including custom made user interface panels. It is a highly reliable and proven system, ideal for Indian conditions, because we use indigenous technology with full backup. It is highly versatile, since our very flexible software is capable of handling different machine requirements. In addition we give you the assurance of free software development and upgradation. Our test programmes make diagnostics a simple matter.
THE RETRO-FITTING EXPERT!
Tritek PLCs are very popular for retro-fit on old machines of various companies. Not surprisingly, Tritek is trusted by the most reputed machinery manufacturers. And more than 3000 machines working efficiently in the field, in the most testing circumstances and the most demanding environments speak volumes about the controls, year after successful year!
WELL-KNOWN MACHINE BRANDS RETRO-FITTED with TRITEK PLCs :
Bakum, Battenfeld, Dr. Boy, Electronica, Kautex, Nigata, Windsor...
