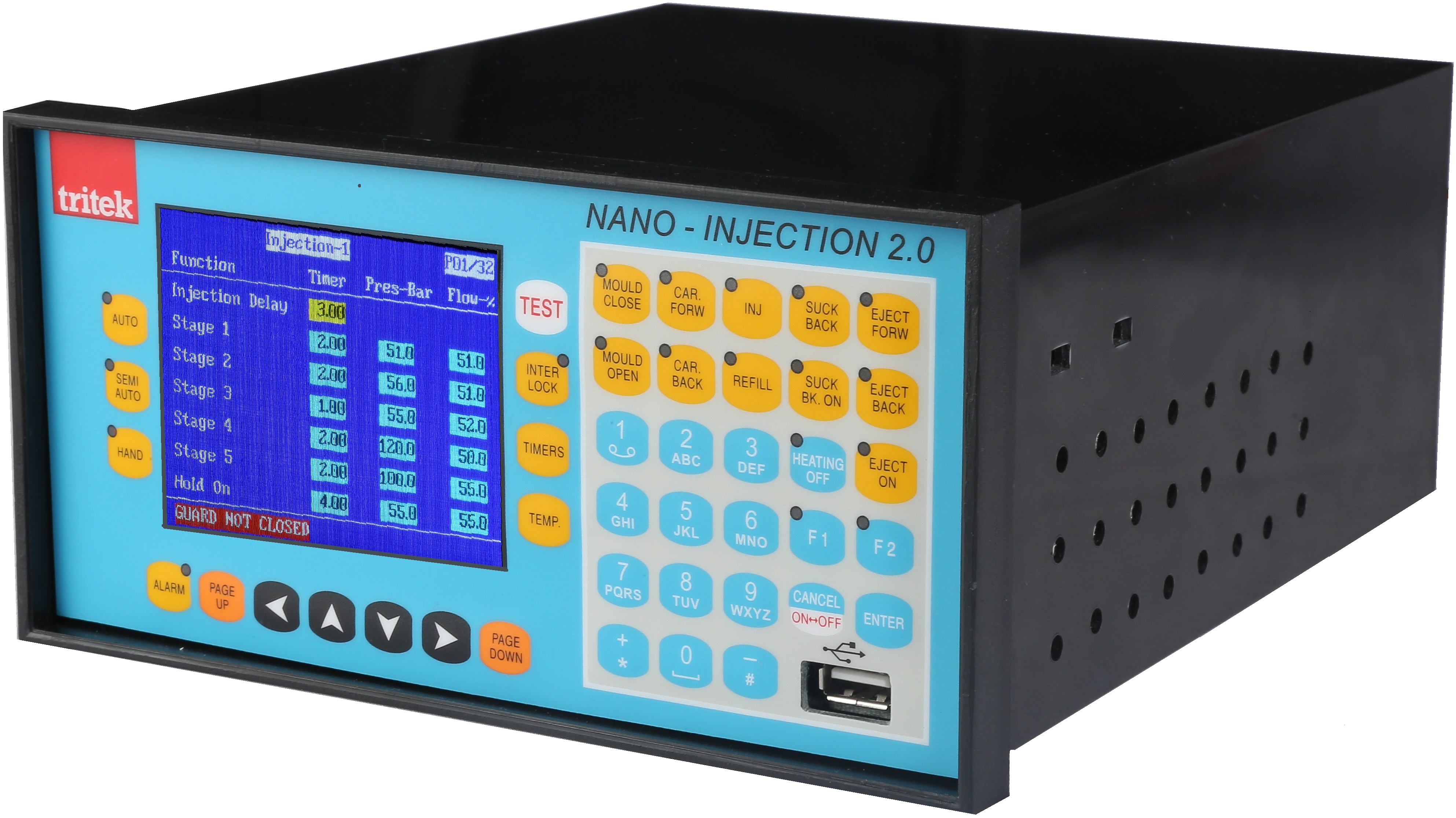

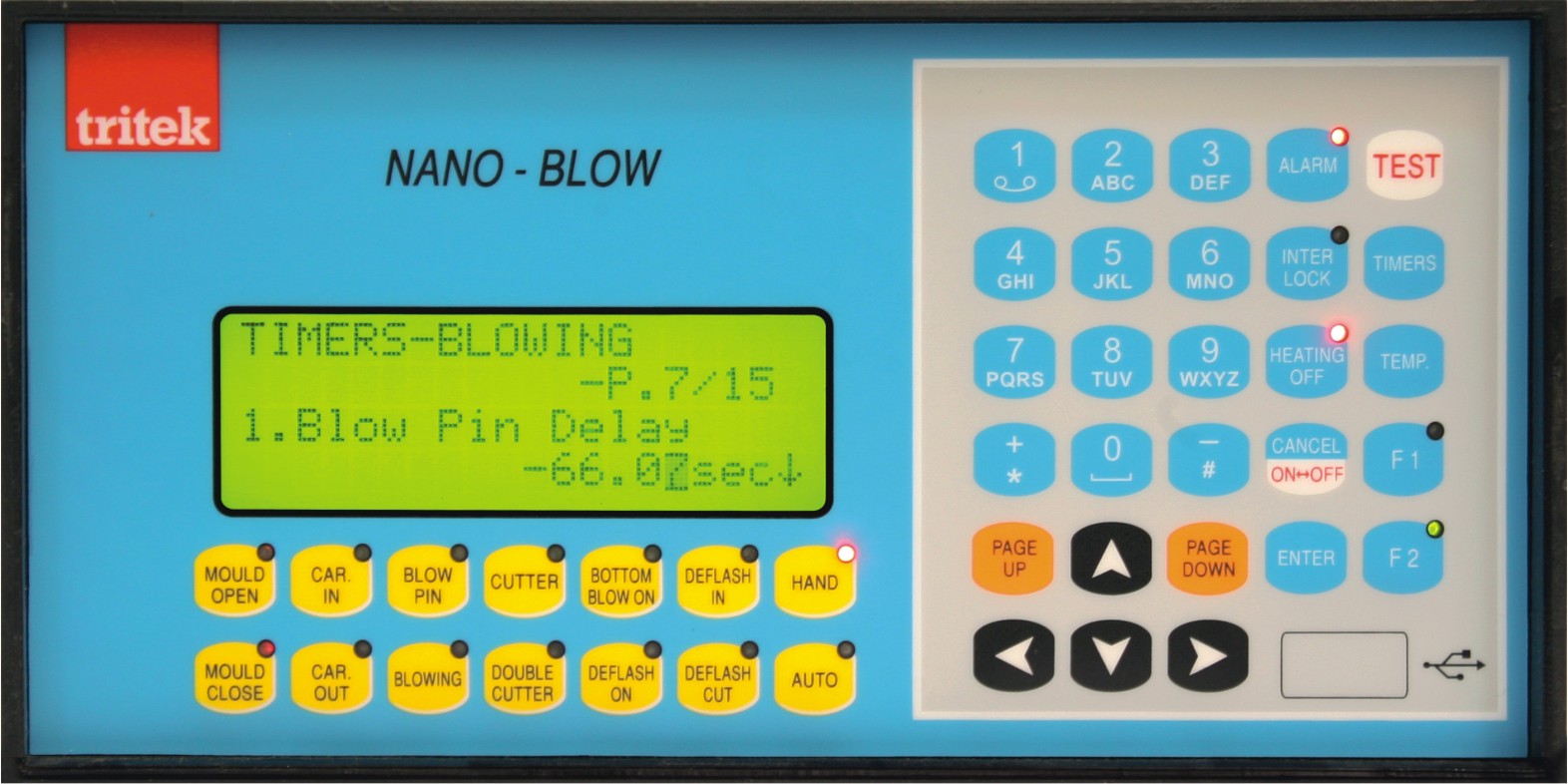

Nano Series PLCs
Leap into the Future!
The Tritek Nano Series Programmable Logic Controllers (PLCs) offer you terrific value and features at the nano price! Just look at its superb features and when you consider its extremely high reliability, you'll agree it's a steal!
SINGLE BOX SOLUTION .
The Nano range is a Single Box Solution even for complex Machines. It can be easily used for PET, Injection, Blow and many other machines. Tritek Customized Keyboards and Programming gives you an edge, that too at Nano Price!
FUTURE READY.
Based on Latest 32 Bit Microcontroller, it has the capability to take a leap into the future with USB and Ethernet Interface Capabilities. Your machine can be easily upgraded and networked in Future.
PROBLEM-SOLVING MADE EASY!
You will notice the precise fault and interlock indications. LED indicators for individual outputs add up to easy diagnostics. There is a fuse protection for each output with fuse fail indication.
TERRIFIC FEATURES. TERRIFIC VALUE.
ACCURACY : Accurate digital temperature indication and control
SAFETY : Temperature based interlocking for machine safety (cold screw safety)
HI-LO SETTINGS : Individual high and low limit setting for each zone
DUAL TEMPERATURE CONTROL : Dual point temperature controller capable of driving blowers
STORAGE : Parameter storage in EEPROM (permanent memory not dependant on battery)
MEMORY : Mould memory of 100 moulds to store parameters
MEMORY STORAGE : Mould memory storage under mould name for easy recall
TIMER : Cycle timer with settable limit
COUNTER : Shot counter with settable limit, as well as hourly shot counter for the last 24 hours
ARCHITECTURE : Latest 32 Bit Micro-controller and Versatile software architecture capable of handling very complex machine requirements
CUSTOMIZATION : Front Keyboard and Display as well as machine software can be customized to suit specific machine requirements
THE PERFECT BLEND CORE, MMI & EFFICIENCY!
| THE MMI CHECK-LIST : | Feature | Nano |
|---|---|---|
| LED Display | No | |
| 4 Line LCD | yes | |
| Touchscreen) | yes |
CORE FACTS :
| Core | Nano |
| Digital Inputs (contact or NPN) | 16 or 24 |
| Digital Outputs (24VCD 1.5A) | 16 or 32 |
| Thermocouple IP | 6 |
| Analog Inputs for Potentiometers | Not supported |
| Analog Outputs (0 to 10 V) | 4 |
| User Interfacetd> | Touchscreen or 4 Line LCD |
| Power Input | 230V± 10% AC |
| Maximum Ambient | 45'C |
CONTROLLING THE INDUSTRY FOR ALMOST 30 YEARS!
If Tritek PLCs have been in control in the Plastics industry for over 30 years, the reasons are clear. When you settle for Tritek, you are assured of complete control systems from a single source. (This includes proportional valve amplifiers and different user interfaces to select from.) Plus we provide complete development support including custom made user interface panels. It is a highly reliable and proven system, ideal for Indian conditions, because we use indigenous technology with full backup. It is highly versatile, since our very flexible software is capable of handling different machine requirements. In addition we give you the assurance of free software development and upgradation. Our test programmes make diagnostics a simple matter.
THE RETRO-FITTING EXPERT!
Tritek PLCs are very popular for retro-fit on old machines of various companies. Not surprisingly, Tritek is trusted by the most reputed machinery manufacturers. And more than 3000 machines working efficiently in the field, in the most testing circumstances and the most demanding environments speak volumes about the controls, year after successful year!
WELL-KNOWN MACHINE BRANDS RETRO-FITTED with TRITEK PLCs :
Bakum, Battenfeld, Dr. Boy, Electronica, Kautex, Nigata, Windsor...
