Micro Series PLCs
Micro Costs!
The Tritek Micro Series Programmable Logic Controllers (PLCs) offer you greatest versatility at the smallest price! Examine its superior list of features and when you consider its extremely high reliability, you'll agree it's a steal!
ADAPTABLE SYSTEMS.
COMPATIBLE TECHNOLOGY.

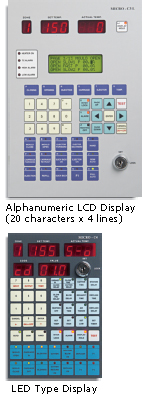

The Tritek Micro Series PLCs boast of multilayer technology for CPU Cards. There are 3 different user interfaces (12 line LCD, 4 line LCD or LED display) and the compact modular design works well with easily replaceable cards.
SIMPLE OPERATIONS.
OPERATIONAL EFFICIENCY.
Manual operations are included on the feather touch front panel. A single point machine operation makes for ultra simplicity. While uniform maintenance, through test programmes (not dependent on model or machine) simplify maintenance tremendously.
PROBLEM-SOLVING MADE EASY!
You will notice the precise fault and interlock indications. LED indicators for individual outputs add up to easy diagnostics. There is a fuse protection for each output with fuse fail indication.
ACCURACY : Accurate digital temperature indication and control
SAFETY : Temperature based interlocking for machine safety (cold screw safety)
HI-LO SETTINGS : Individual high and low limit setting for each zone
DUAL TEMPERATURE CONTROL : Dual point temperature controller capable of driving blowers
STORAGE : Parameter storage in EEPROM (permanent memory not dependant on battery)
MEMORY STORAGE : Mould memory storage under mould name (available in units with LCD screen)
TIMER : Cycle timer with settable
COUNTER : Shot counter with settable limit, as well as hourly shot counter for the last 24 hours
ARCHITECTURE : Versatile software architecture capable of handling very complex requirements
COST-EFFECTIVE Additional features at no extra cost
THE PERFECT BLEND CORE, MMI & EFFICIENCY!
| THE MMI CHECK-LIST : | Feature | Rack |
|---|---|---|
| LED Display | yes | |
| 4 Line LCD | yes | |
| 240x128 LCDtd> | yes |
CORE FACTS :
| Core | Micro |
| Digital Inputs (contact or NPN) | 16 |
| Digital Outputs (24VCD 1.5A) | 16 to 32 |
| Thermocouple IP | 6 |
| Analog Inputs for Potentiometers | Not supported |
| Analog Outputs (0 to 10 V) | 2 to 4 |
| User Interface> | Selectable (12 line, 4 Line or LED) |
| Power Input | 230V± 10% AC |
| Maximum Ambient | 45'C |
CONTROLLING THE INDUSTRY FOR ALMOST 20 YEARS!
If Tritek PLCs have been in control in the Plastics industry for over 18 years, the reasons are clear. When you settle for Tritek, you are assured of complete control systems from a single source. (This includes proportional valve amplifiers and different user interfaces to select from.) Plus we provide complete development support including custom made user interface panels. It is a highly reliable and proven system, ideal for Indian conditions, because we use indigenous technology with full backup. It is highly versatile, since our very flexible software is capable of handling different machine requirements. In addition we give you the assurance of free software development and upgradation. Our test programmes make diagnostics a simple matter.
THE RETRO-FITTING EXPERT!
Tritek PLCs are very popular for retro-fit on old machines of various companies. Not surprisingly, Tritek is trusted by the most reputed machinery manufacturers. And more than 3000 machines working efficiently in the field, in the most testing circumstances and the most demanding environments speak volumes about the controls, year after successful year!
WELL-KNOWN MACHINE BRANDS RETRO-FITTED with TRITEK PLCs :
Bakum, Battenfeld, Dr. Boy, Electronica, Kautex, Nigata, Windsor...
