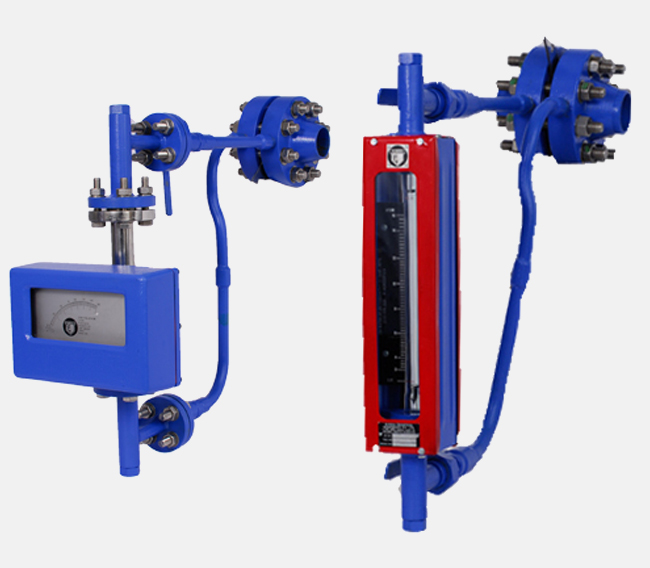

BYE PASS ROTAMETER
- Bye pass rotameters are used for measurement of higher flow rates where using inline flow meter is not commercially or functionally not viable.
- It works on the principle of measuring differential pressure created across restriction.
- The construction includes an orifice plate installed between either carrier ring or orifice/pipe flanges.
- The Hi/Low pressure taps of carrier ring/orifice flange/ pipe are connected to indicating Rotameter with a help of impulse tube arrangement. The Indicating Rotameter can be of Glass or Metal tube Type.
- Eureka make Bye pass Rotameters can be used for liquids or Gases and is available from 2” to 40” sizes.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
