THERMAL MASS FLOWMETERS/CONTROLLERS
Thermal Mass Flowmeters/controllers are used for precise measurement and control of Gases. These are mainly used in laboratory and pilot plant instrumentation where flow rates are very low to moderate. Conventional flowmeters are not suitable to use for these applications.
Eureka has a vast experience of over 30 years in assembly/calibration/marketing and servicing of Thermal Mass flow instruments in India. We have a well-equipped assembly/calibration and servicing set up in Pune. We also have a good customer base which we have served over the years.
We represent Linetech of South Korea for their range of Thermal Mass Flowmeter and controllers.
They are available from flow rate of 10 mls/min to over 5000 ls/min. in analog and digital versions.
- Applications : R&D, Pilot Plants, CVD, Gas mixing, Fuel cell, Plasma etc.
Specifications:
- Suitable for clean gases
- Flow ranges from 10 ml to 5000 ml/min.
- Pressure rating up to 90 bar
- Temperature rating up to 60 Deg. C
- Accuracy: 1% FS
- Output: 4-20 mA proportional to flow
- Communication: RS-232/485, Modbus, Profibus
MAJOR CUSTOMERS SERVED
MAJOR CUSTOMERS SERVED
ANALOGUE MASS FLOWMETER & CONTROLLER
Mass Flow Meters and Controllers for gas applications is with an electronic housing suitable for laboratory conditions. Analogue series instruments are truly unique in their capability to control flow ranges between 10 mls/min and 5000 ls/min with pressure rating ranging between vacuum and 90 bar g - all in one range of instruments. This versatility in flow ranges and in operating conditions has ensured that the Analogue series remains our most popular and field proven of instruments. These have a fast response and a high accuracy: ± 1% of FS. IP65 version is also available.

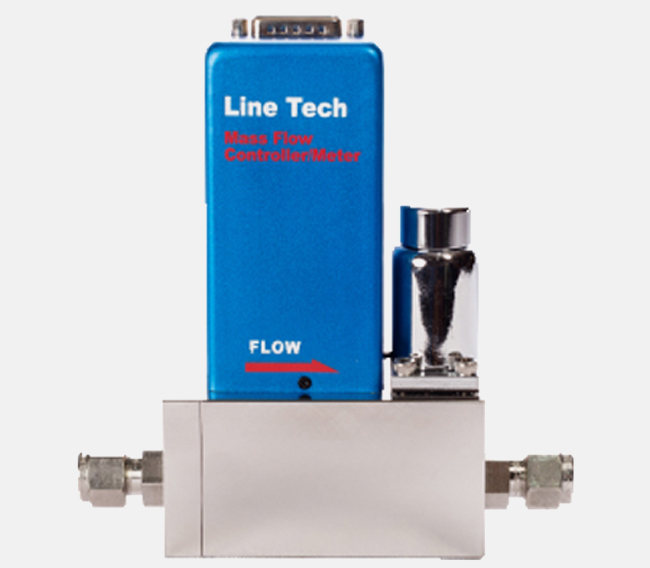

Analogue Mass Flow Controller Analogue Mass FlowMeter
DIGITAL MASS FLOWMETER & CONTROLLER
Digital series of Mass Flow Meters and Controllers for gas applications is with high accuracy of ± 0.25% of FS along with high end communication protocol RS-485, Modbus, Profibus. This series ranges between 10 mls/min and 5000 ls/min with pressure rating ranging between vacuum and 90 bar g. IP65 version is also available.
Digital Mass Flow Controller Digital Mass FlowMeter
