DIFFERENTIAL PRESSURE BASED FLOWMETERS
Differential pressure used to determine the flow rate is one of the oldest and widely used technique of flow measurement. Differential pressure is generated by creating obstruction to the moving flow. The pressure difference created is measured through pressure taps provided on upstream and downstream side of obstruction. This differential pressure can be measured using devices like manometer or DP transmitter. Based on the differential pressure value, the flow rate is calculated.
The differential pressure-based flow meters are of following types
Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery

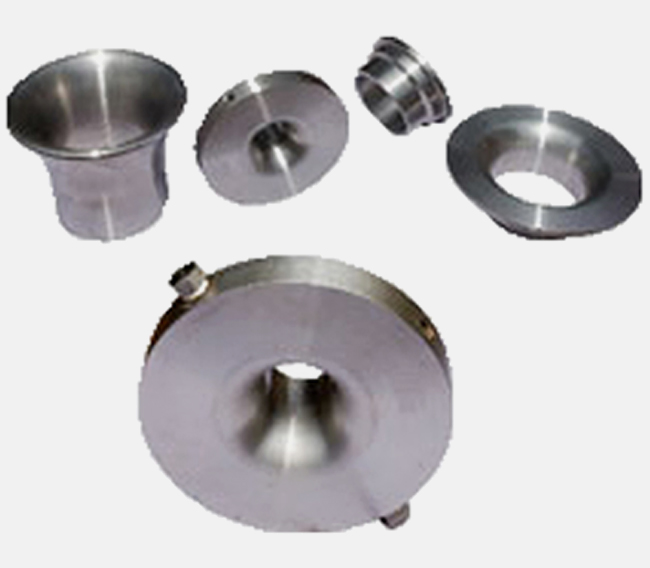

FLOW NOZZLES
- Flow nozzles are especially used for flow measurement or steam service which is normally under high temperature and pressure. Flow nozzles are normally of two types Long radius and ISA 1932.
- Flow nozzles are available in sizes from 25 to 600 mm. The pressure tapping is either D, D/2, Corner or throat tap.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
Download Catalogue Pdf

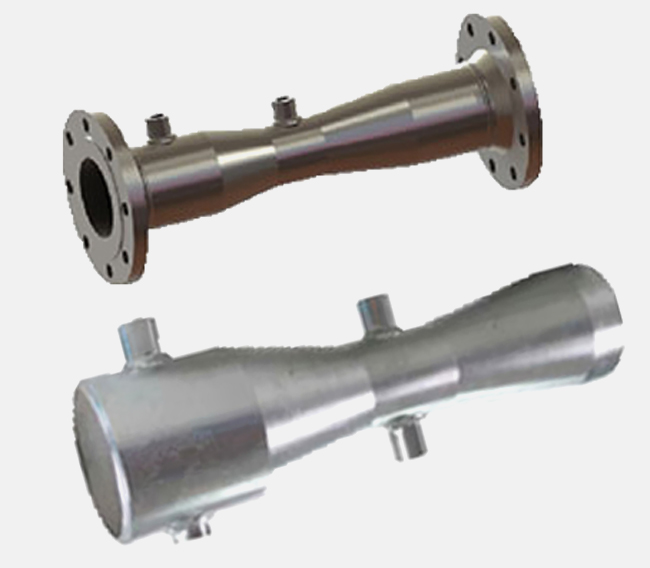

VENTURI
- Venturi tube flowmeters are used for flow measurement where higher pressure drop is not acceptable.
- Venturi tube design consists of inlet and outlet cones, a throat and cylinder.
- Pressure tap is located on throat and inlet cylinder.
- Venturi tube is available from 50 mm to 2000 mm size.
- They are either machined (up to 8”) or fabricated.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
Download Catalogue Pdf
AVERAGING PITOT TUBES (EUBAR)
- Averaging pitot tubes offer lowest pressure drop amongst all DP elements and hence are used for applications where static pressure is less or when high pressure drops are not acceptable.
- It consists of a diamond shape sensor which is inserted in a pipeline or a duct. The sensor has holes at equal distance along its length on upstream side and on downstream side for pressure sensing.
- It is available from 50 to 2000 mm length. It is available in fixed or in retractable type for online withdrawal of sensor.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
Download Catalogue Pdf

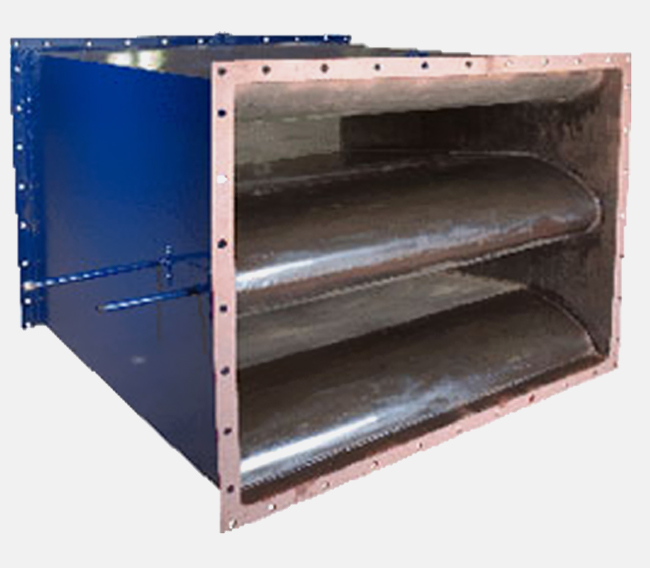

AEROFOILS
- Aerofoils are typically used for flow measurement of air in square/rectangular ducts.
- Measurement of air in blower is a typical application.
- Aerofoil is fabricated and normally consists of two foils. The upstream pressure tap is provided on the front face of foil.
- The accuracy is about 3% FS.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
Download Catalogue Pdf

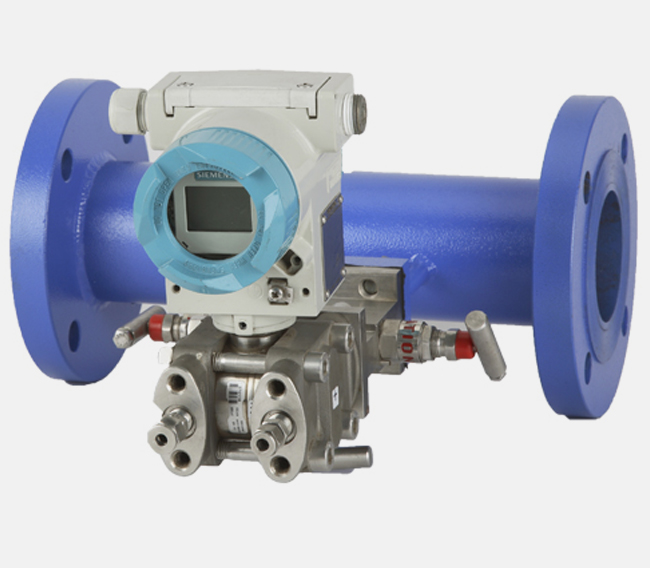

V CONE FLOWMETERS (EUREKONE)
- V cone flowmeters are comparatively new addition to DP flow element family.
- It consists of a cone inserted in a flow stream, which creates a differential pressure.
- It is available from 20 mm to 200 mm line size.
- Eurekone flowmeter can be used for liquid/Gases/ steam or slurry service.
- The pressure drop is low and requirement of straight lengths are minimum.
- Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery
Download Catalogue Pdf
