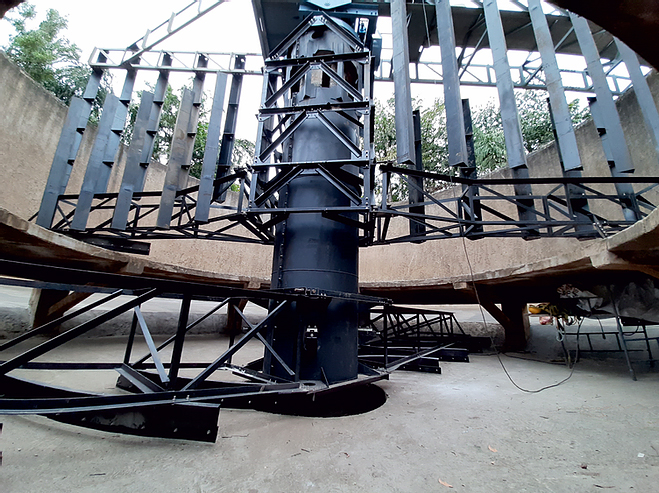

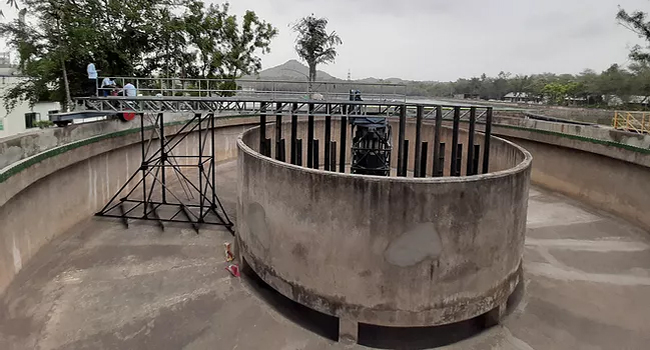

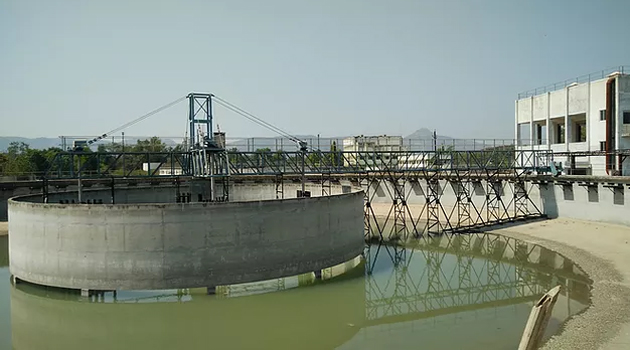

Indofab Clariflocculators are scientifically designed mechanisms to suit Client's tanks for handling low TSS solids. The unit consists of two mechanisms, the Flocculator Mechanism and the Clarifier Scrapper Mechanism. Indofab Clariflocculators ensures good flocculation characteristics are achieved in optimum time for accelerating settling of flocs & ensuring minimum Flocculant Consumption at all times. Critical Criteria Design of Flocculator Mechanism such as Velocity Gradient G, Projected Flocculator Paddle Area of 15% to 35%, optimum Mixing speeds as required for effective flocculation is well understood by our Design experts. We encourage the use of Central Large Flocculators for most efficient design & achieving excellent treated water results. A Flocculation Compartment usually of 15mins to 45 mins of retention time hydraulically separates the Flocculation & Clarification zones within the tank. The settled flocs are carefully and gently scraped with the help of Indofab Clarifier Rake Arms towards Central Sludge Well in a regular manner giving high-quality overflow or supernatant Water/Liquid.

• Mechanism Types
  • Central Large Flocculator spread across entire Flocculation Compartment/Zone.
  • Dual Stator-Rotor type Central Large flocculation spread across full flocculation zone.
  • One or More Small Circulator Flocculators either fixed on stationary bridge or on rotating bridge.
• Drive Types : Independent Flocculator Drive or Combined Flocculator & Scrapper Drive or Central Flocculator Drive cum Turntable. For more details refer INDOFAB Drive Head.
• Flocculation Well : RCC Construction or Structural construction
• Mounting Type : Bridge Mounted or Pier Mounted.
• Drive Type : Central Driven or Peripheral Drive
• Peripheral Type : Full Scrapper or Half Scrapper
• Scum Removal : Single or Dual Balanced Skimmer
• Sludge Sampling : Telescopic Sludge Sampling or Sampling Piping across all zones.
• For Indofab Clarifier Type refer the Product page.

• Size : Diameters ranging from 3 Meter to 72 Meter. Span.
• Depths : Side Water Depths from 2 Meter to 7 Meter.
• Flocculator Paddles : Triangular low resistance or Concave paddle designs. Rotating Paddles or in combination with Stator Paddles.
• Bottom Slopes : 1 in 12 (4.76 degree), 1 in 10 (5.71 degree), or Dual Slope Designs are preferred in Flocculation & Clarification zones.
• Construction Materials of Carbon Steel A36, A286, SA516, IS2062 or equivalent.
• Construction Materials of Low Carbon Steels like INOX or Stainless Steels AISI304 AISI 316, AISI317 etc.
• Coating or Lining Materials : Epoxy Painting, Enamel Painting, Special Coastal Painting, FRP lining with ISO or Vinyl Ester Resins, Natural, Neoprene or Hard Rubber Lining, PU coating, Halar Coating.

• Water Treatment Plants (WTP) & Waste Treatment Plants (WWTP)
• Effluent Treatment Plant (ETP) or Common Effluent Treatment Plants (CETP)
• Industrial Water ReCycle/Recovery Circuits
• Municipal Water Treatment Plants & Raw Water Treatment Plants.
• Sewage Treatment Plants (STP) or Grey Water Treament Plants.
• Primary Treatment, Secondary Treatment, Tertiary Treatment of Liquids in Various Industrial Processes.
• Caustiscizing & Re-Caustiscizing plants as Green Liquor Clarifier & White Liquor Clarifier.
• Wash water or Beneficiation Circuit water Recycle/Recovery systems.
