When the Sedimentation tanks are designed for effective removal of colloidal impurities like In Water treatment to get desired Low Turbidity in the Overflow liquid the Mechanism of Recirculation of premature sludge blanket to accelerate the sludge formation is used & termed as Solids Contact Clarifier (SCC) This is a typical Pre-Treater Mechanism. When further the rate of Solids contact is accelerated for a higher rate of sedimentation is High Rate Solids Contact Clarifiers (HRSCC). Indofab High Rate Solids contact clarifiers are a compact unit occupying less footprint & capital cost as it houses; Flash Mixing; Flocculation and Clarification compartments within a single Sedimentation Tank. The Flash Mixer helps mixing/neutralization/flocculant mixing/Chemical Precipitation and the Turbine mechanism mixes the fresh feed with lighter sludge to recirculate making higher size flocs. The liquid now passes to the Flocculation zone providing retention time for floc. formation and finally the liquid enters the Clarification zone; In the clarification zone, the Clear supernatant liquid overflows through the high no. of weirs/radial launders of a combination of both. Solids contact clarifiers (SCC) popularly known are HRSCC (High Rates Solids Contact Clarifiers). These are enhanced version of Pre-Treater systems largely and widely used for very low PPM solids feed to further purify or reduce TSS for achieving extremely clear flow characteristics. It serves as Flocculation and/or Chemical Precipitator with gentle flocculation and Gravity Sedimentation. It is a Unique and most advanced Clarification Equipment used by modern designers to enhance productivity with minimum Foot Print.

Features

  • Advantages
    • Less Foot Print.
    • Low Construction Cost.
    • 3 IN 1 Unit eliminates much of Piping, Instrumentation, Hydraulic level problems.
    • Lower Power Consumption.
    • Flexibility to Design for varied Flash mixing, Flocculation and Clarification Time required for the Water/Slurry.
    • Ease of Control over Mixing Dosage & Turbulence using Variable Impellor Speed.
    • Highest Rise Rate possible using appropriate Radial Launders.
  • Options
    • Mounting Type : Bridge Mounted or Pier Mounted.
    • Drive Type Turbine/Impellor & Scrapper : Both Central Driven
    • Sweep Type : Single Sweep or Double Sweep.
    • Impellor/Turbine Type : Deeply Submerged Impellor or Top Surface Impellor
    • Scum Removal : Single or Dual Balanced Skimmer
    • Draft Tube: Standard, High volume, Deep Design.
    • Launders : Peripheral, Radial and Mixed Deisgns
    • Treatment Sampling : Sampling Piping across all four zones

Specification

  • Bridge Mounted Central Driven Solids Contact Clarifiers / HRSCC
  • Pier Mounted Central Driven Solids Contact Clarifiers / HRSCC
  • Rotating Half Bridge Solids Contact Clarifiers / HRSCC
  • Rotating Full Bridge Solids Contact Clarifiers / HRSCC
  • Structural steel design Solids Contact Clarifiers / HRSCC
  • Steel Pipe design Solids Contact Clarifiers / HRSCC
  • FRP Lined Solids Contact Clarifiers / HRSCC
  • Epoxy Painted Solids Contact Clarifiers / HRSCC
  • Dual Slope Solids Contact Clarifiers / HRSCC
  • Carbon Steel Construction Solids Contact Clarifiers / HRSCC
  • Stainless Steel SS304/SS304L Construction Solids Contact Clarifiers / HRSCC
  • Stainless Steel SS316/SS316L Construction Solids Contact Clarifiers / HRSCC
  • Duplex Stainless Steel Construction Solids Contact Clarifiers / HRSCC
  • Mild Steel Rubber Lined Construction Solids Contact Clarifiers / HRSCC
  • Central Flocculators Solids Contact Clarifiers / HRSCC
  • Solids Contact Clarifiers / HRSCC with two circulator Flocculators
  • Solids Contact Clarifiers / HRSCC with four circulator Flocculators

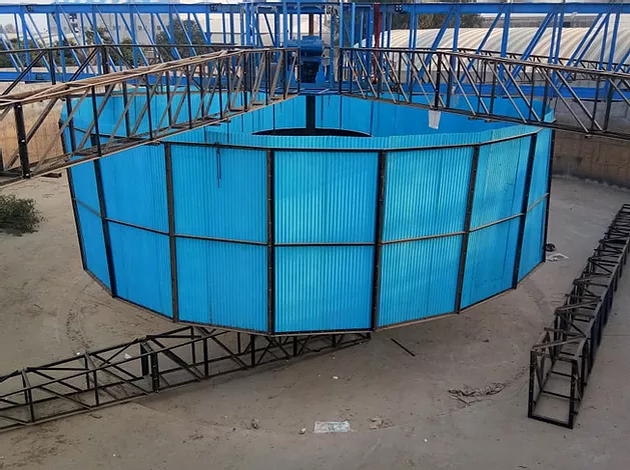

  • Solids Contact Clarifiers / HRSCC with FRP Flocculation Well
  • Clariflocculator suitable for RCC Flocculation zone.
  • Clariflocculator with Dual Weir or Multiple Weir
  • Single Sweep Solids Contact Clarifiers / HRSCC
  • Double Sweep Solids Contact Clarifiers / HRSCC
  • Inward Raking Solids Contact Clarifiers / HRSCC

Application

  • Raw water Treatment Plants
  • Power Plants WTP facilities.
  • Municipal Water Treatment Plants (WTP)
  • Waste Water Recycle Treatment Plants.
  • River & Well Water Treatment Plants.
  • Total Suspended Solids (TSS) reduction in low turbidity Water.
  • Wash Water Recycle Circuits for Suspended Solids removal.
  • Desalination Plants.
