Assembly Testing Machines

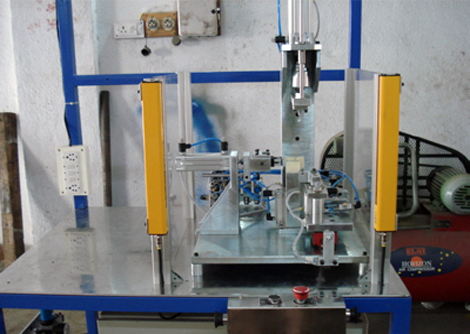

Glove Latch Assembly Testing Machines
- To Test Correct Assembly & Function of Glove Latch after Final Assembly
- Manual loading of job
- Safety Curtains (Area Sensors) provided for operator safety
- Purely pneumatically operated machine
- PLC controlled cycle start with two hand push buttons

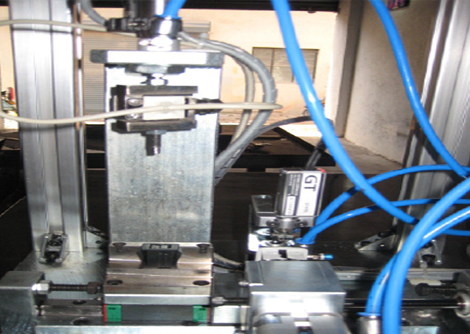

E4 Latch Testing Machines
- Checking minimum Load Required for the Operation of Latch, Distance Checking of Correct Spring Position after Final Assembly
- 2 station machine:
- a. 1 st Station: Height checking
- b. 2 nd Station: Force/ Load checking and date marking
- PLC controlled pneumatically operated
- Safety Curtains (Area Sensors) provided for operator safety

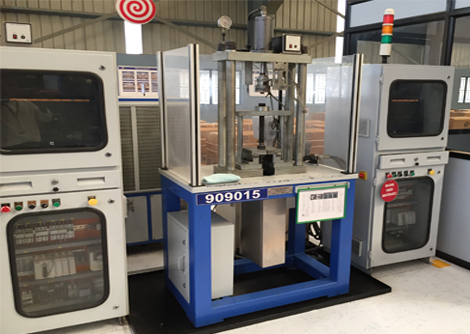

Separation Load Testing
- Manual job loading into fixture
- Cycle start with two hand push buttons
- Load will be increased in specified load steps
- Press capacity: 5 Tons
- Hydraulically operated with PLC control
- Data will be recorded with respect to entered job ID
