Leak Testing With Assembly

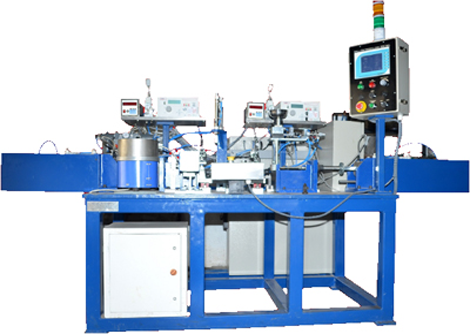

Ball and Pin Pressing Machines
- 1st Station Ball Plug Press from One Side & Pin Press from Other Sides
- 2nd Station Leak Testing of the Plugged Holes for Both the Sides
- Ball & Pin Escapement is Automatic. Operator Will Load & Unload Cam Shaft Only
- All Pressing by Pneumatic Cylinders
- Control Through PLC Logic

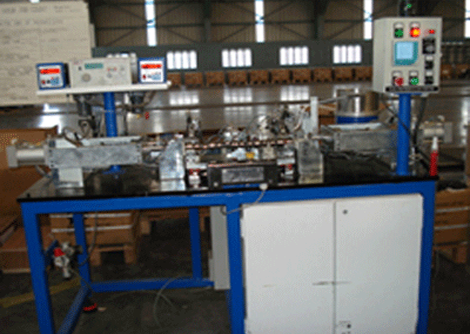

Ball and Pin Pressing Machines
- 1st Station Plug & Pin Pressing
- 2nd Station Leak Testing & Passage Open Confirmation

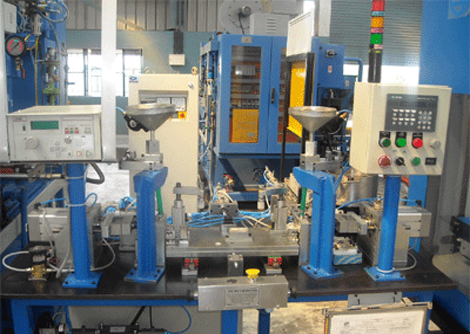

Ball Plug Pin Press and Leak Testing Machines
- Two Station Machine with Bowl Feeder for Pin Escapement & Bowl for Ball Plug Escapement
- Load Cam Shaft Manually
- First Station - Pin & Plug is Pressed Automatically. Pressing Load is Confirmed
- Second Station - Leak Testing of Pressed Ball Plug is Confirmed
