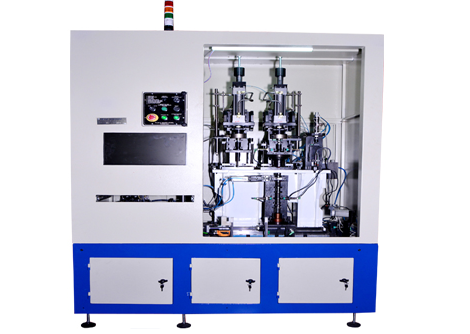

Bar Code Reader Read the Code on the Job & The same is Stored in the Scada
Take out the Job & Load in the Fixture & Load Target Wheel & Plug on the Holders
Press Cycle Start Button
Camera Confirms the Presence of Seals
If Seals are Present the Plug is Pressed at 1st Station
Then on the 2nd Station Target Wheel is Pressed
On 3rd Station Depth of Target Wheel & Plug is Checked
During Pressing Load V/S Distance Graph is Plotted & All the Data’s are Stored
in the PC

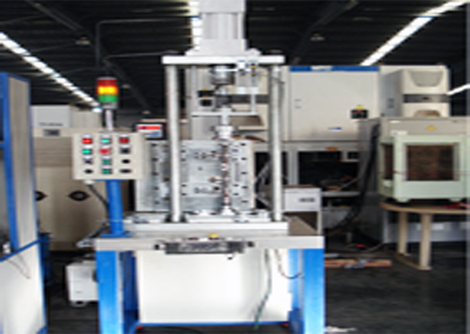

Target Wheel Press Machines
Check Target Wheel Dia. By Air Gauge. Press Push Button to Confirm The Bore is
Within Tolerance.Then Load the Target Wheel in the Holder on the Machine.
Load Cam Shaft Manually. for Orientation Pin is Provided At the Bottom Face
Press Two Hand Cycle Start Buttons.
Press Moves Onwards, First Load is Measured Upto to Set Length.
Then Press Returns by Pressure Switch.

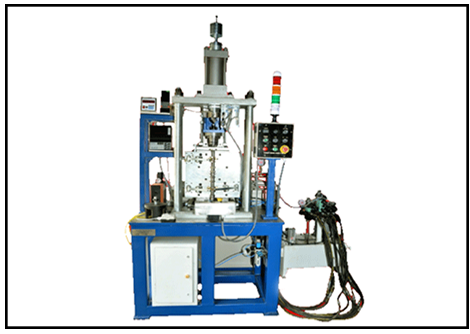

Target Wheel Assembly Machines
Basic Machine Hydraulically Operated.
Target Wheel is Held in Special Holder.
Cam Shaft is Located in a Fixture & Clamped by Hydraulic Cylinder
During Pressing Load is Measured.
Target Wheel has to Rest Against the Collar Face of the Cam Shaft
