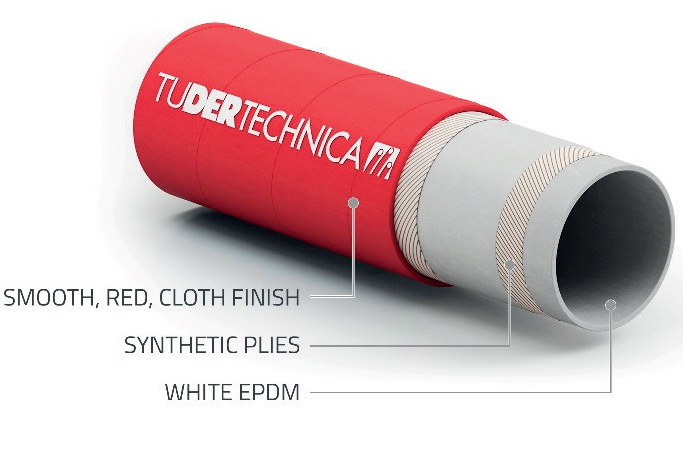

Brewery EPDM D

Delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA BREWERY EPDM

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,6	8,5	16	250	48	750	0,75	0,50	150	5,91
32	1,25	48	1,89	0,5	7,25	16	250	48	750	1,24	0,83	210	8,27
38	1,50	56	2,20	0,5	7,25	16	250	48	750	1,79	1,20	260	10,24
50	1,97	70	2,76	0,4	6	16	250	48	750	2,48	1,66	350	13.78
51	2,00	70	2,76	0,4	6	16	250	48	750	2,35	1,57	350	13,78
63,5	2,50	89	3,50	0,4	6	16	250	48	750	3,88	2,60	470	18,50
65	2,56	89	3,50	0,4	6	16	250	48	750	3,75	2,51	470	18,50
75	2,95	99	3,90	0,3	4,5	16	250	48	750	4,29	2,87	580	22,83
76	3,00	99	3,90	0,3	4,5	16	250	48	750	4,10	2,75	580	22,83
100	3,94	130	5,12	0,2	3	16	250	48	750	7,06	4,73	800	31,50
102	4,00	130	5,12	0,2	3	16	250	48	750	6,57	4,40	800	31,50

Tufood Fat

Suction and delivery hose suitable for beer and a wide range of nonfatty food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA BREWERY EPDM

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	53	2,09	0,9	13	16	250	48	750	1,48	0,99	155	6,10
50	1,97	66	2,60	0,9	13	16	250	48	750	2,05	1,37	215	8,46
51	2,00	66	2,60	0,9	13	16	250	48	750	1,92	1,29	215	8,46
63,5	2,50	81	3,19	0,9	13	16	250	48	750	2,98	2,00	275	10,83
65	2,56	81	3,19	0,9	13	16	250	48	750	2,84	1,90	275	10,83
75	2,95	94	3,70	0,9	13	16	250	48	750	4,06	2,72	330	12,99
76	3,00	94	3,70	0,9	13	16	250	48	750	3,87	2,59	330	12,99
100	3,94	120	4,72	0,9	13	16	250	48	750	5,38	3,60	450	17,72
102	4,00	120	4,72	0,9	13	16	250	48	750	5,19	3,48	450	17,72

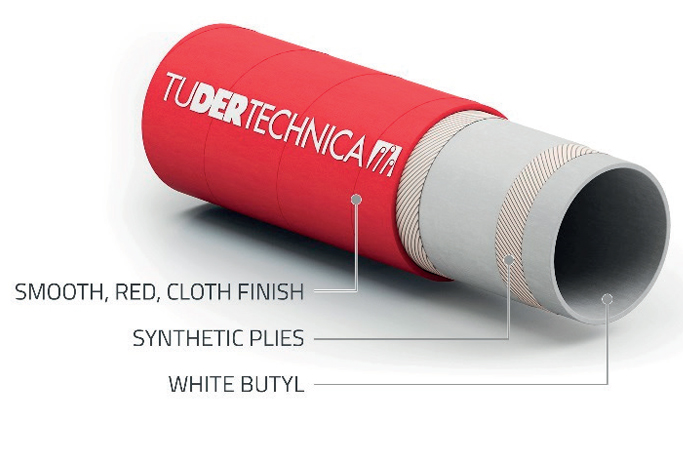

Brewery Butyl D

Premium grade low permeation delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
Reinforcement : synthetic plies
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA BREWERY BUTYL

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,6	8,5	16	250	48	750	0,76	0,51	150	5,91
32	1,25	48	1,89	0,5	7,25	16	250	48	750	1,27	0,85	210	8,27
38	1,50	56	2,20	0,5	7,25	16	250	48	750	1,83	1,23	260	10,24
50	1,97	70	2,76	0,4	6	16	250	48	750	2,53	1,70	350	13,78
51	2,00	70	2,76	0,4	6	16	250	48	750	2,41	1,61	350	13,78
63,5	2,50	89	3,50	0,4	6	16	250	48	750	3,95	2,65	470	18,50
65	2,56	89	3,50	0,4	6	16	250	48	750	3,82	2,56	470	18,50
75	2,95	99	3,90	0,3	4,5	16	250	48	750	4,37	2,93	580	22,83
76	3,00	99	3,90	0,3	4,5	16	250	48	750	4,18	2,80	580	22,83
100	3,94	130	5,12	0,2	3	16	250	48	750	7,17	4,80	800	31,50
102	4,00	130	5,12	0,2	3	16	250	48	750	6,68	4,48	800	31,50

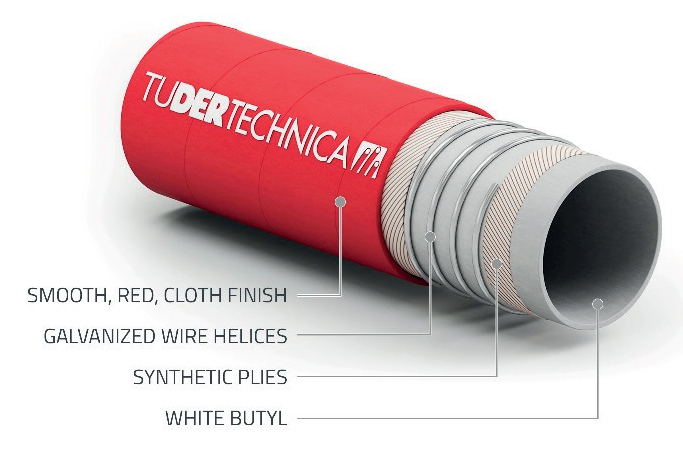

Brewery Butyl

Premium grade low permeation suction and delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA BREWERY BUTYL

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	53	2,09	0,9	13	16	250	48	750	1,51	1,01	155	6,10
50	1,97	66	2,60	0,9	13	16	250	48	750	2,09	1,40	215	8,46
51	2,00	66	2,60	0,9	13	16	250	48	750	1,96	1,31	215	8,46
63,5	2,50	81	3,19	0,9	13	16	250	48	750	3,02	2,02	275	10,83
65	2,56	81	3,19	0,9	13	16	250	48	750	2,88	1,93	275	10,83
75	2,95	94	3,70	0,9	13	16	250	48	750	4,11	2,75	330	12,99
76	3,00	94	3,70	0,9	13	16	250	48	750	3,92	2,63	330	12,99
100	3,94	120	4,72	0,9	13	16	250	48	750	5,45	3,65	450	17,72
102	4,00	120	4,72	0,9	13	16	250	48	750	5,26	3,52	450	17,72

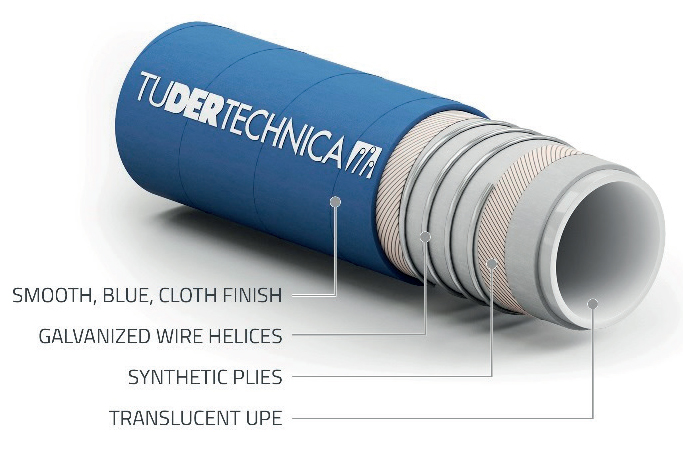

Brewery UPE

Suction and delivery hose suitable for beer, alcohol concentration up to 96% and a wide range of food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA BREWERY UPE

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	51	2,00	0,9	13	16	250	48	750	1,34	0,90	240	9,45
50	1,97	64	2,52	0,9	13	16	250	48	750	1,84	1,23	330	12,99
51	2,00	64	2,52	0,9	13	16	250	48	750	1,72	1,15	330	12,99
63,5	2,50	81	3,19	0,9	13	16	250	48	750	3,06	2,05	415	16,34
65	2,56	81	3,19	0,9	13	16	250	48	750	2,92	1,96	415	16,34
75	2,95	93	3,66	0,9	13	16	250	48	750	3,70	2,48	500	19,69
76	3,00	93	3,66	0,9	13	16	250	48	750	3,50	2,35	500	19,69
100	3,94	119	4,69	0,9	13	16	250	48	750	5,12	3,43	675	26,57
102	4,00	119	4,69	0,9	13	16	250	48	750	4,78	3,20	675	26,57

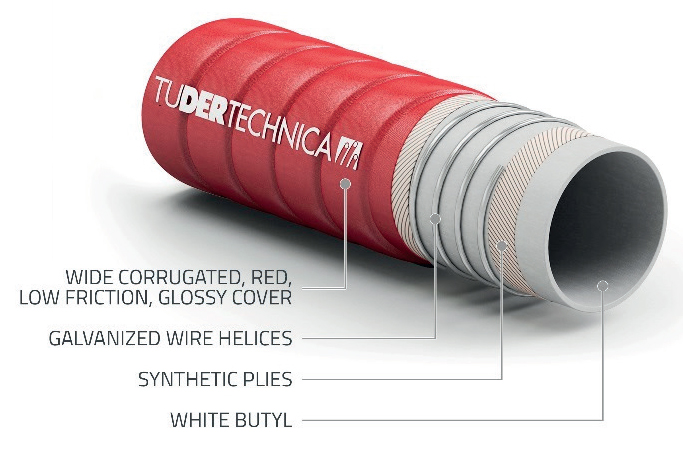

Glidetech Brewery HD

Premium grade low permeation extra flexible suction and delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.

DESCRIPTION

Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, galvanized wire helices
Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ozone, ageing, oil and chemical resistant, easy to clean, glossy cover
Marking : TUDERTECHNICA GLIDETECH® BREWERY HD

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Th. outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	38	1,50	0,9	13	16	250	60	900	0,91	0,61	105	4,13
38	1,50	52,5	2,07	0,9	13	16	250	60	900	1,38	0,92	120	4,72
51	2,00	67	2,64	0,9	13	16	250	60	900	2,21	1,48	150	5,91
63,5	2,50	80,5	3,17	0,9	13	16	250	60	900	2,79	1,87	195	7,68
76	3,00	94	3,70	0,9	13	16	250	60	900	3,51	2,35	225	8,86
102	4,00	120	4,72	0,9	13	16	250	60	900	4,57	3,06	375	14,76

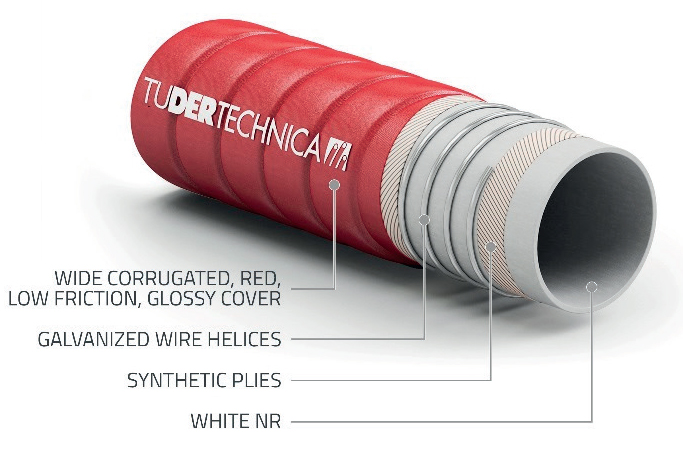

Glidetech Vineyard

Extra flexible suction and delivery hose suitable for wine and vinification by-products.

DESCRIPTION

Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
Reinforcement : synthetic plies, galvanized wire helices
Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
Marking : TUDERTECHNICA GLIDETECH® VINEYARD

TECHNICAL CHARACTERISTICS

Temperature range : -60°C / +200°C ( -76°F / +392°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Th. outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,9	13	10	150	30	450	0,82	0,55	70	2,76
38	1,50	51,5	2,03	0,9	13	10	150	30	450	1,23	0,82	80	3,15
51	2,00	66	2,60	0,9	13	10	150	30	450	1,90	1,27	100	3,94
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,30	1,54	130	5,12
76	3,00	92	3,62	0,9	13	10	150	30	450	2,90	1,94	150	5,91
102	4,00	118	4,65	0,9	13	10	150	30	450	3,78	2,53	250	9,84

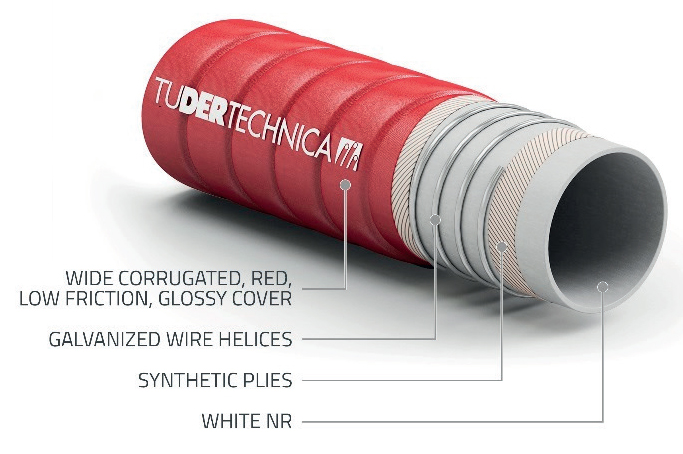

Glidetech Vineyard Hd

Extra flexible suction and delivery hose suitable for wine and vinification by-products with an improved resistance to higher pressure.

DESCRIPTION

Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
Reinforcement : synthetic plies, galvanized wire helices
Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
Marking : TUDERTECHNICA GLIDETECH® VINEYARD HD

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +80°C ( -40°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Th. outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	38	1,50	0,9	13	16	250	60	900	0,91	0,61	105	4,13
38	1,50	52,5	2,07	0,9	13	16	250	60	900	1,41	0,94	120	4,72
51	2,00	67	2,64	0,9	13	16	250	60	900	2,24	1,50	150	5,91
63,5	2,50	80,5	3,17	0,9	13	16	250	60	900	2,82	1,89	195	7,68
76	3,00	94	3,70	0,9	13	16	250	60	900	3,55	2,38	225	8,86
102	4,00	120	4,72	0,9	13	16	250	60	900	4,44	2,97	375	14,76

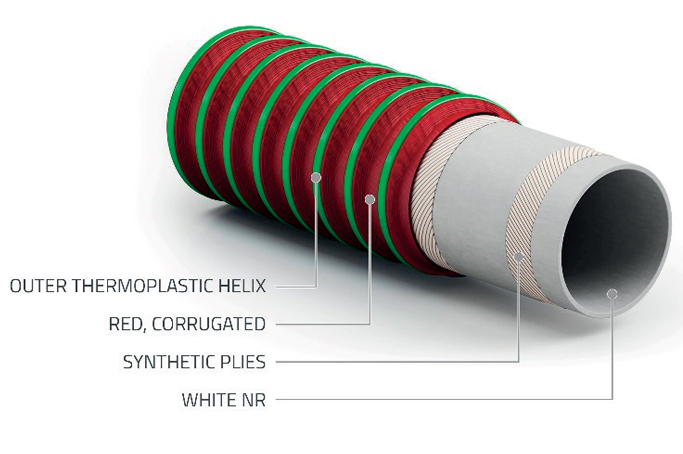

Spiraltech Vineyard

Light and flexible lorry collecting hose suitable for wine and vinification by-products.

DESCRIPTION

Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
Reinforcement : synthetic plies
Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,21	0,81	80	3,15
51	2,00	-	-	0,9	13	10	150	30	450	1,59	1,07	100	3,94
63,5	2,50	-	-	0,8	11,5	10	150	30	450	1,93	1,29	130	5,12
76	3,00	-	-	0,8	11,5	10	150	30	450	2,49	1,67	150	5,91
102	4,00	-	-	0,7	10	10	150	30	450	3,26	2,18	200	7,87

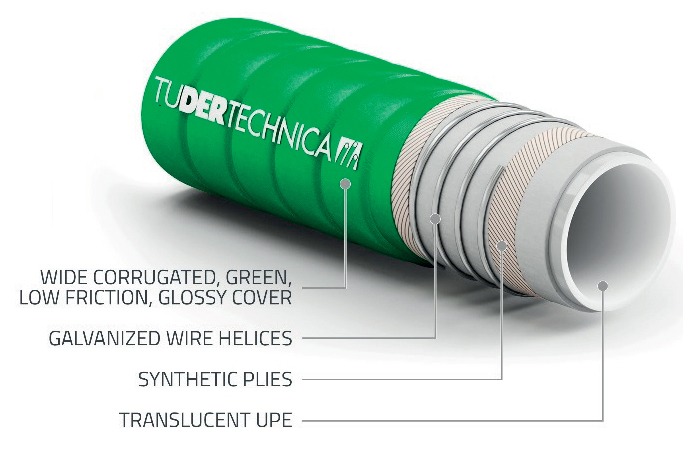

Glidetech Distillery

Extra flexible suction and delivery hose suitable for distilled and distillation by-products with alcohol concentration up to 96%.

DESCRIPTION

Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
Reinforcement : synthetic plies, galvanized wire helices
Cover : wide corrugated, green, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
Marking : TUDERTECHNICA GLIDETECH® DISTILLERY

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Th. outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,9	13	10	150	30	450	0,80	0,54	100	3,94
38	1,50	50	1,97	0,9	13	10	150	30	450	1,14	0,76	150	5,91
51	2,00	65	2,56	0,9	13	10	150	30	450	1,81	1,21	200	7,87
63,5	2,50	77,5	3,05	0,9	13	10	150	30	450	2,19	1,47	260	10,24
76	3,00	91	3,58	0,9	13	10	150	30	450	2,81	1,88	350	13,78
102	4,00	117	4,61	0,9	13	10	150	30	450	3,67	2,46	500	19,69

Tualcomaster<

Light and flexible suction and delivery hose suitable for alcohol concentration up to 96%. Can be used for fatty and non-fatty food products.

DESCRIPTION

Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUALCOMASTER

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	29	1,14	0,9	13	6	90	18	270	0,61	0,41	60	2,36
25	1,00	35	1,38	0,9	13	6	90	18	270	0,76	0,51	85	3,35
32	1,25	43	1,69	0,9	13	6	90	18	270	0,98	0,66	115	4,53
38	1,50	49	1,93	0,9	13	6	90	18	270	1,14	0,76	150	5,91
51	2,00	62	2,44	0,9	13	6	90	18	270	1,52	1,02	210	8,27
63,5	2,50	76,5	3,01	0,9	13	6	90	18	270	2,29	1,53	265	10,43
76	3,00	89	3,50	0,9	13	6	90	18	270	2,85	1,91	320	12,60
102	4,00	115	4,53	0,9	13	6	90	18	270	3,74	2,51	430	16,93

Brewery, Cellar & Distillery Hoses

Brewery EPDM D

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tufood Fat

DESCRIPTION

TECHNICAL CHARACTERISTICS

Brewery Butyl D

DESCRIPTION

TECHNICAL CHARACTERISTICS

Brewery Butyl

DESCRIPTION

TECHNICAL CHARACTERISTICS

Brewery UPE

DESCRIPTION

TECHNICAL CHARACTERISTICS

Glidetech Brewery HD

DESCRIPTION

TECHNICAL CHARACTERISTICS

Glidetech Vineyard

DESCRIPTION

TECHNICAL CHARACTERISTICS

Glidetech Vineyard Hd

DESCRIPTION

TECHNICAL CHARACTERISTICS

Spiraltech Vineyard

DESCRIPTION

TECHNICAL CHARACTERISTICS

Glidetech Distillery

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tualcomaster<

DESCRIPTION

TECHNICAL CHARACTERISTICS

Catalogue

Valves

Hoses

Our Address
