Cosmetic and Pharmaceutical Hoses

Tuchem UPE Chips Pharmachem

Suction and delivery hose designed according to EN 12115 standards for chemical and pharmaceutical products.

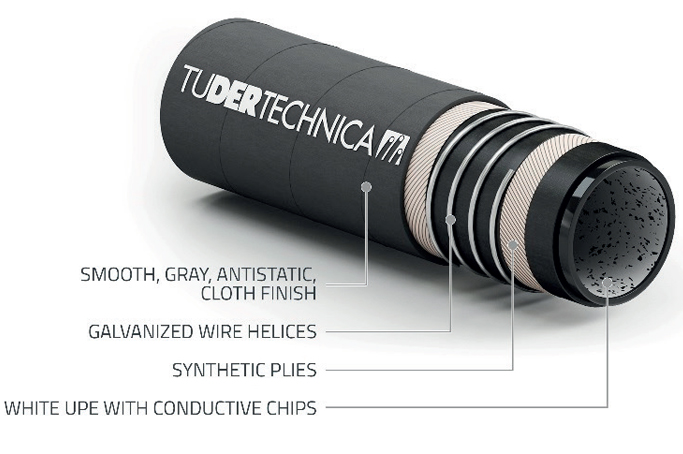

DESCRIPTION

  • Tube : UPE, white with conductive chips, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
  • Reinforcement : synthetic plies, galvanized wire helices, a/s wire to discharge static electricity
  • Cover : smooth, gray, antistatic (R<109 Ω/m), abrasion, ageing, ozone and oil resistant, cloth finish
  • Marking : white / blue tape TUDERTECHNICA TUCHEM® UPE CHIPS PHARMACHEM embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

  • Temperature range : -35°C / +100°C ( -31°F / +212°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115
Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,75 0,50 115 4,53
25 1,00 37 1,46 0,9 13 16 250 64 1000 0,92 0,62 155 6,10
32 1,25 44 1,73 0,9 13 16 250 64 1000 1,10 0,74 200 7,87
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,39 0,93 240 9,45
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,30 1,54 330 12,99
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,33 1,56 330 12,99
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 3,09 2,07 415 16,34
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,58 2,40 500 19,69
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,62 2,42 500 19,69
100 3,94 116 4,57 0,9 13 12 185 48 750 4,63 3,10 675 26,57
102 4,00 118 4,65 0,9 13 12 185 48 750 4,67 3,13 675 26,57
