Milkflex

Light and flexible lorry collecting hose suitable for milk and milk byproducts.

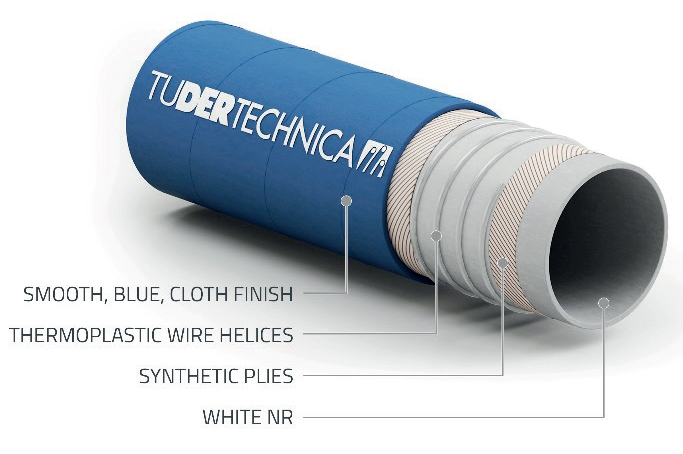

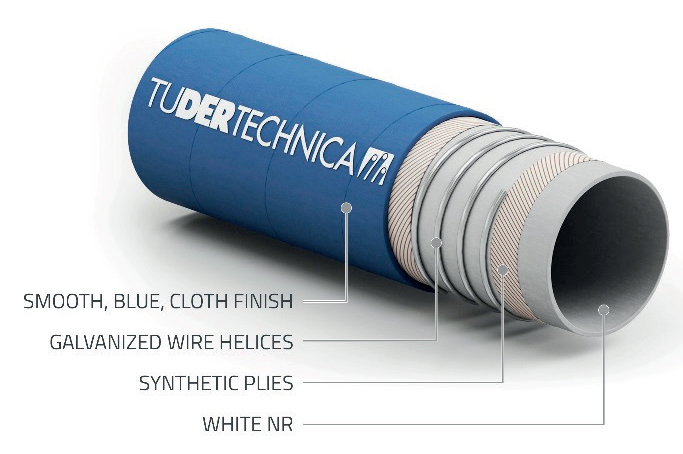

DESCRIPTION

  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX®

TECHNICAL CHARACTERISTICS

  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 36 1,42 0,9 13 6 90 18 270 0,72 0,48 75 2,95
32 1,25 43 1,69 0,9 13 6 90 18 270 0,88 0,59 95 3,74
38 1,50 50 1,97 0,9 13 6 90 18 270 1,20 0,80 115 4,53
51 2,00 63 2,48 0,9 13 6 90 18 270 1,54 1,03 150 5,91
63,5 2,50 75,5 2,97 0,9 13 6 90 18 270 1,98 1,33 190 7,48
76 3,00 90 3,54 0,9 13 6 90 18 270 2,76 1,85 230 9,06
102 4,00 116 4,57 0,9 13 6 90 18 270 3,78 2,53 300 11,81
