Boltable Rack Support System
Features:
- Heavy Duty Support System.
- Maximum Cantilever length 1075mm.
- Suitable for Ceiling, Wall or Floor Supports.
- Multilayer Rack Systems on 2 Sides of Boltable Rack Stand also can be on 3 sides exceptionally.
Applications of Boltable Rack Support System

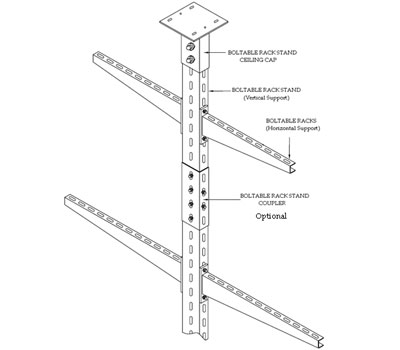

1. Ceiling/ Floor or Ceiling to Floor: |

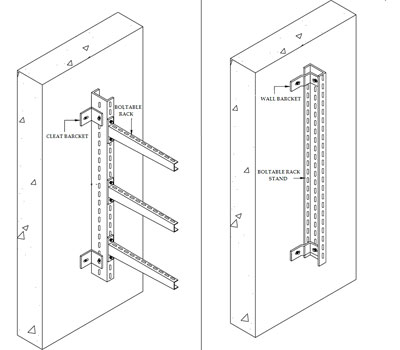

2. Concrete Wall: |

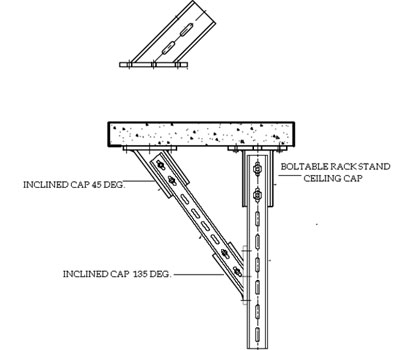

3 .Inclined Caps provided for Extra Reinforcement for Ceiling or Floor Application: |
Table 1
Sr.No. | Product Name | Standard Length(mm) |
1 | Boltable Rack Stand | 400 |
2 | Boltable Rack Stand | 800 |
3 | Boltable Rack Stand | 1250 |
4 | Boltable Rack Stand | 2500 |
Table 2
Sr.No. | Tray Width(mm) | Product Name | Length of Rack(mm) | Thickness(mm) |
1 | 150 | Boltable Rack | 225 | 2.0 |
2 | 200 | Boltable Rack | 275 | 2.0 |
3 | 300 | Boltable Rack | 375 | 2.5 |
4 | 450 | Boltable Rack | 525 | 2.5 |
5 | 500 | Boltable Rack | 575 | 2.5 |
6 | 600 | Boltable Rack | 675 | 2.5 |
7 | 750 | Boltable Rack | 825 | 3.0 |
8 | 900 | Boltable Rack | 975 | 3.0 |
*Max Cantilever Length: 1070mm
