Flexi Rack Support System
Features:
- Developed to Russian Specification for Vizag (Vishakapatnam) Steel Plant.
- Best Suited for Trenches/ Walls in Multilayer Arrangement.
- Type Tested by Power Grid Corporation Limited (PGCL) at Profab’s works for 169 kg (UDL) over 675mm Rack.
- Scope of system extended by Profab to suspend from ceiling.
Application of Flexi Rack System:

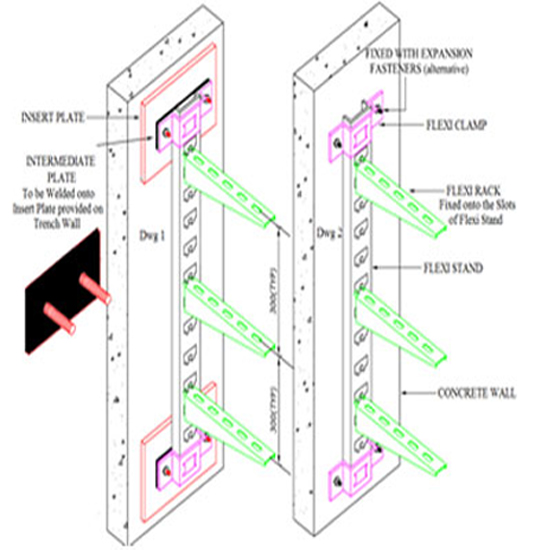

1. Trench Wall or Concrete Wall: |
|

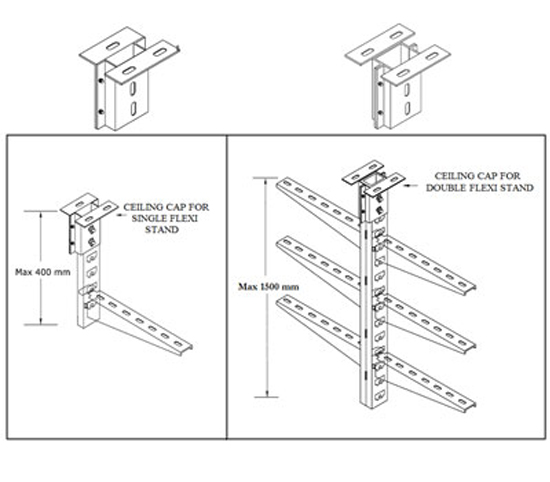

2. Ceiling |
|
Table 1
Sr.No. |
Standard Length of Flexi Stand |
Product Name |
1 |
500mm |
Flexi Rack Stand |
2 |
1000mm |
Flexi Rack Stand |
3 |
1250mm |
Flexi Rack Stand |
4 |
2500mm |
Flexi Rack Stand |
Table 2
Sr.No. |
Tray Width(mm) |
Length(mm) |
Height(mm) |
|
|
|
|
1 |
|
175 |
63 |
2 |
|
250 |
63 |
3 |
|
325 |
63 |
4 |
|
400 |
76 |
5 |
|
475 |
76 |
6 |
|
625 |
76 |
