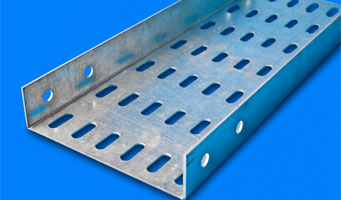

Perforated Cable Trays
Features:
- Moderate ventilation with added cable support advantage
- Thickness available 1.6mm, 2.0mm, 2.5mm, 3.0mm.
- Standard depths of 25, 40, 50, 75, 100mm.
- Standard lengths of 2.5/3.0 Mtrs.
- Covers for Perforated Cable Trays shall be Pregalvanised, Powder Coated (Stainless Steel and Aluminum also available).
Material Finish for Perforated Cable Trays
Sr.No. |
FINISH |
1 |
Hot Dip Galvanised |
2 |
Pregalvanised |
3 |
Powder Coated |
4 |
Stainless Steel |
5 |
Aluminium |
Note: R = Regular Sizes of Cable Trays available
X= Non Regular Sizes of Cable Trays.
NA = Not Available, Profab hence suggest the user to go for either the size immediately higher
or lower than the one mentioned as “NA”.
Note: Profab shall undertake the responsibility to manufacture Non Regular Cable Trays provided
the Minimum Order Quantity shall be 500 Mtrs.
Minimum Order Quantity for Regular Sizes shall be 200 Mtrs.
25mm Height Perforated Cable Trays
Table
Sr.No. |
Width |
Thicknes |
|
|
|
1 |
50 |
|
2 |
100 |
|
3 |
150 |
|
4 |
200 |
|
5 |
300 |
|
40mm Height Perforated Cable Trays
Table
Sr.No. |
Width |
Thicknes |
|
|
|
1 |
50 |
|
2 |
100 |
|
3 |
150 |
|
4 |
200 |
|
5 |
300 |
|
6 |
450 |
|
7 |
500 |
|
8 |
600 |
|
50mm Height Perforated Cable Trays
Table
Sr.No. |
Width |
Thicknes |
|
|
|
1 |
50 |
|
2 |
100 |
|
3 |
150 |
|
4 |
200 |
|
5 |
300 |
|
6 |
450 |
|
7 |
500 |
|
8 |
600 |
|
9 |
750 |
|
10 |
900 |
|
11 |
1000 |
|
75mm Height Perforated Cable Trays
Table
Sr.No. |
Width |
Thicknes |
|
|
|
1 |
100 |
|
2 |
150 |
|
3 |
200 |
|
4 |
300 |
|
5 |
450 |
|
6 |
500 |
|
7 |
600 |
|
8 |
750 |
|
9 |
900 |
|
10 |
1000 |
|
11 |
1200 |
|
100mm Height Perforated Cable Trays
Table
Sr.No. |
Width |
Thicknes |
|
|
|
1 |
100 |
|
2 |
150 |
|
3 |
200 |
|
4 |
300 |
|
5 |
450 |
|
6 |
500 |
|
7 |
600 |
|
8 |
750 |
|
9 |
900 |
|
10 |
1000 |
|
11 |
1200 |
|
