Special Support Systems

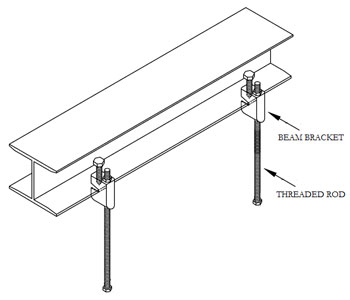

1. Beam Bracket
Features:
- Clamps onto I-Beam/ Channel/ Angle & provides scope for suspension/ supporting load.
- Can be popularly used to suspend light loads form I Beam.
1. Beam Bracket |

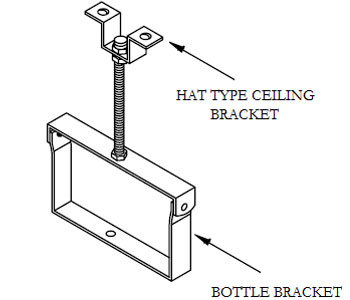

2. Bottle Bracket
Features:
- Profab Innovation.
- Eliminates need for Second Threaded Rod Suspension thus economical.
2. Bottle Bracket |
Table 1
Sr.No. | Part Code | Product Name | Width (mm) |
1 | TRB50 | Threaded Rod Bottle Bracket | 50mm |
2 | TRB75 | Threaded Rod Bottle Bracket | 75 |
3 | TRB100 | Threaded Rod Bottle Bracket | 100 |
4 | TRB150 | Threaded Rod Bottle Bracket | 150 |

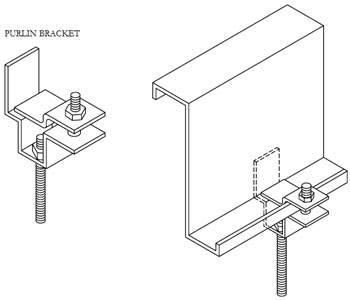

3. Purlin Bracket
We manufacture and supply a varied range of Purlin Bracket to our valued patrons. The entire range is machined using technologically advance machinery. Our quality experts undertake pre-process inspections, in-process inspections and final product inspection to ensure a defect free product range.
This range of Purlin Brackets is widely appreciated as it:
- Profab Innovation.
- Eliminates need for Welding Supports on Z Purlin.
- Saves considerable cost
- Scores highly in terms of strength and durable make
3. Purlin Bracket |
Table 1
Sr.No. | Part Code | Product Name | Width of Purlin(mm) |
1 | PB45 | Purlin Bracket | 45 |
2 | PB60 | Purlin Bracket | 60 |
3 | PB65 | Purlin Bracket | 65 |
4 | PB75 | Purlin Bracket | 75 |
